Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the shift selector to the neutral position, and then release the parking brake.
  2. Drain rear differential gear oil. Refer to Draining .

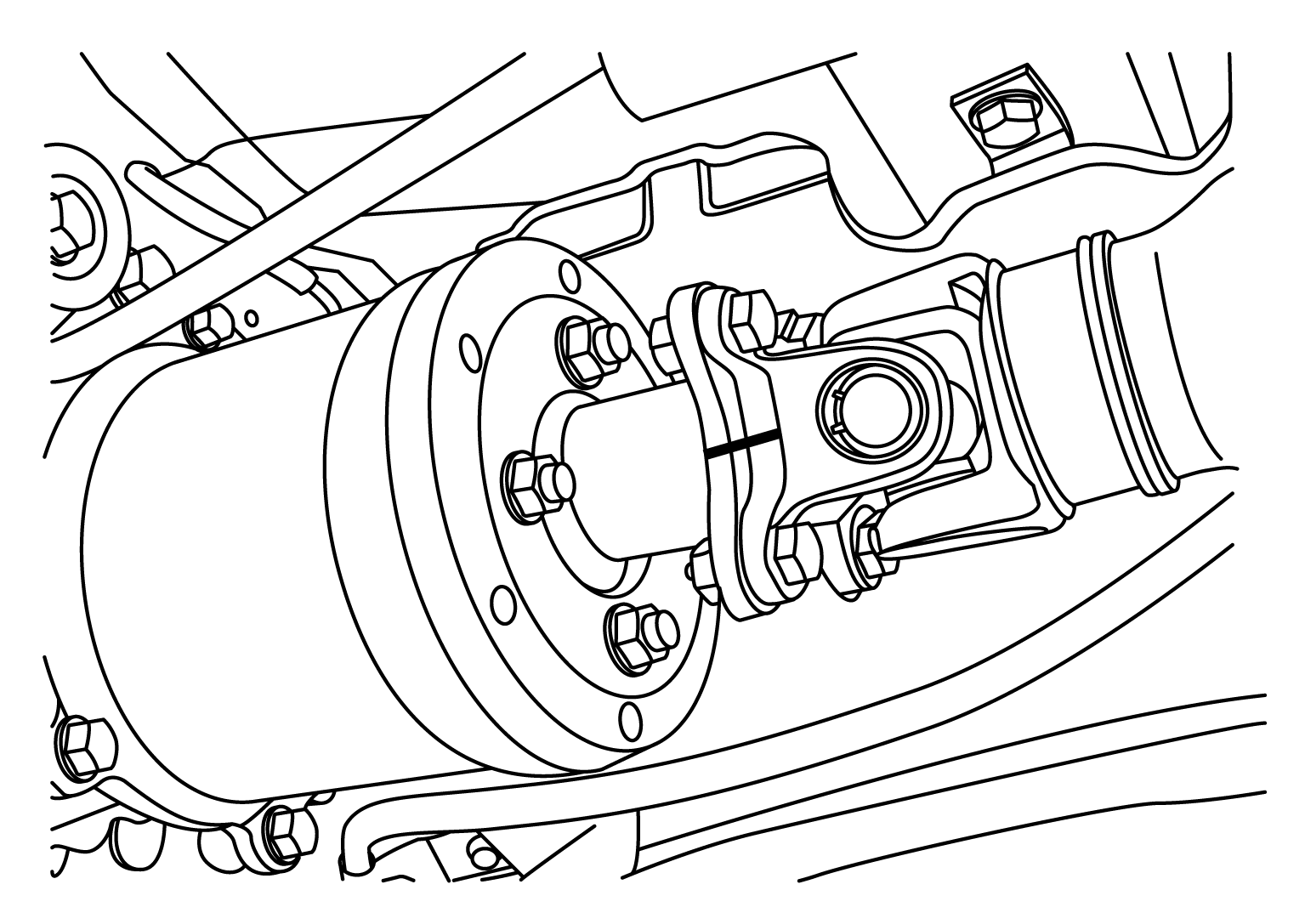

  3. Remove rear propeller shaft from the torsional damper, and support the end of the propeller shaft. Refer to Exploded View .
    CAUTION: For matching marks, use paint. Do not damage propeller shaft flange yokes, final drive torsional damper or transfer companion flange.
    GNSALDIA0282Z-282Courtesy of NISSAN NORTH AMERICA, INC.

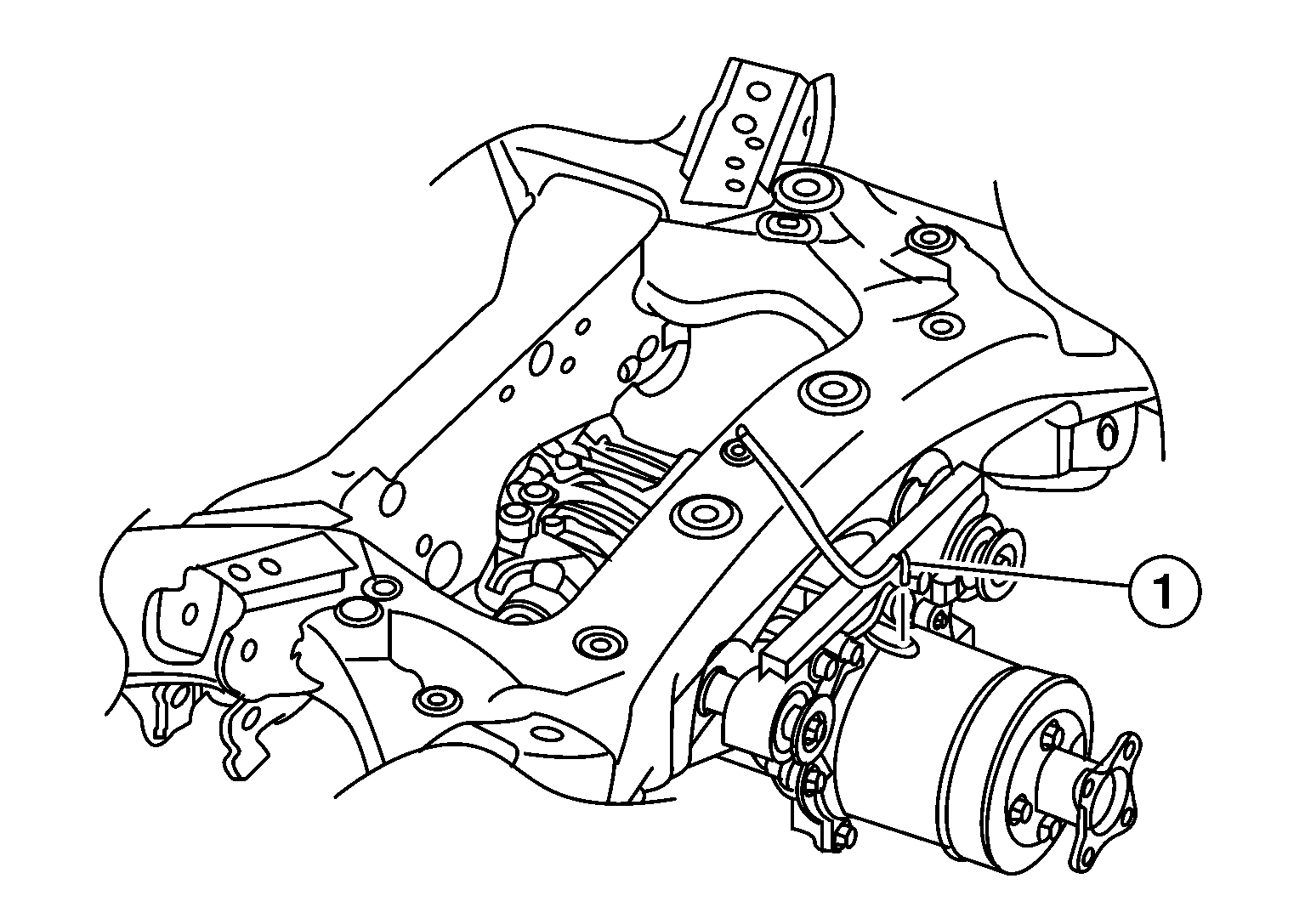

  4. Remove the electric controlled coupling breather hose (1).
    GNSAWDIA1088Z-088Courtesy of NISSAN NORTH AMERICA, INC.
  5. Disconnect the electric controlled coupling harness connector and unclip harness from harness bracket.
  6. Remove the 6 bolts from the electric controlled coupling.
  7. Remove the electric controlled coupling.
    CAUTION: Be careful that the wave washer does not fall out or get damaged when removing the electric controlled coupling.
