Seat Belt Height Adjuster

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Removal

Slide front seat to the full forward position.
Remove the center pillar upper finisher. Refer to Removal and Installation .
Remove the D-ring anchor nut.
CAUTION: Before removing the D-ring anchor nut, note the positions of washers and spacers for correct installation.

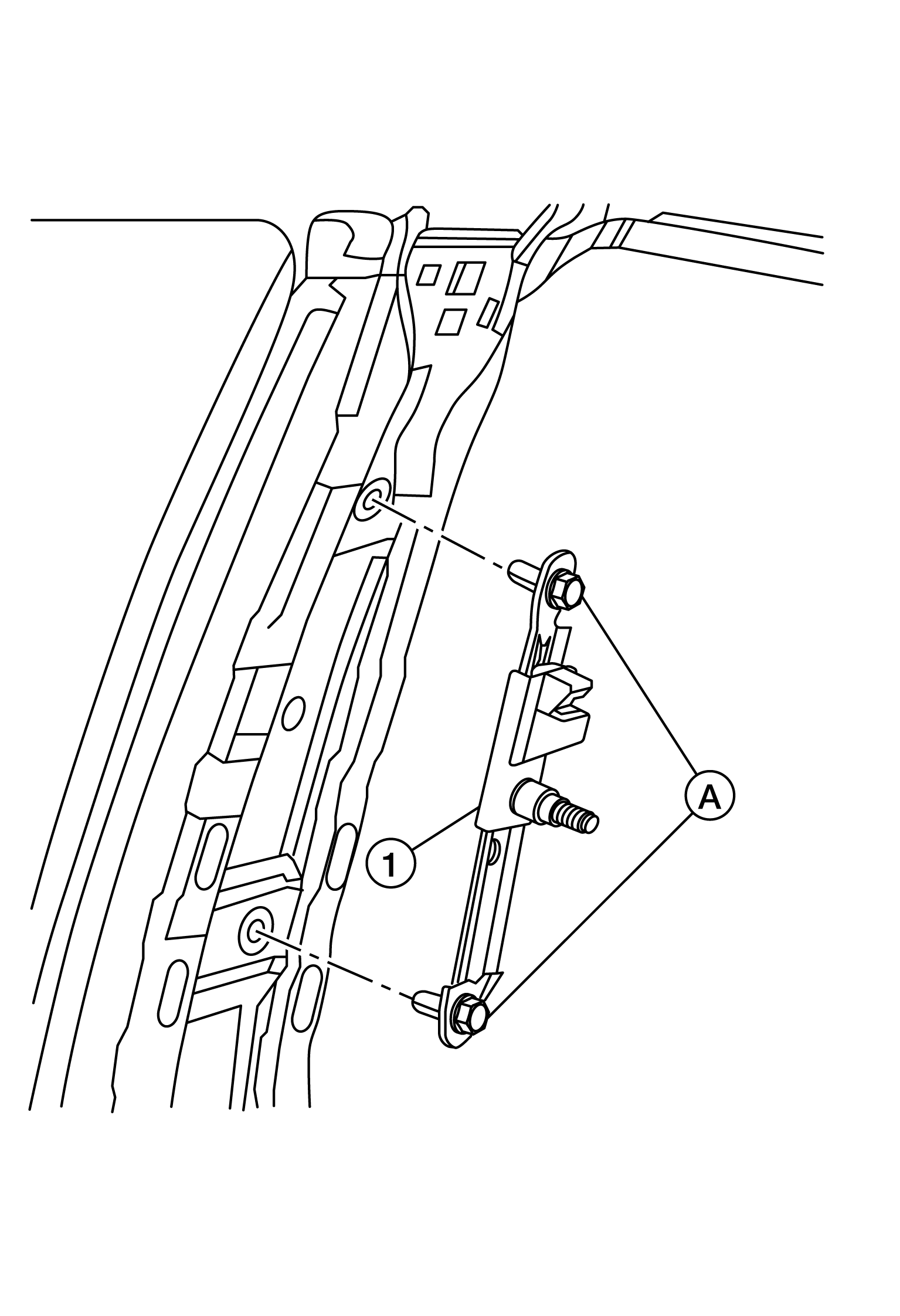

Remove the seat belt height adjuster bolts (A) and the seat belt height adjuster (1).

Courtesy of NISSAN NORTH AMERICA, INC.

Installation

Installation is in the reverse order of removal.

Make sure that the seat belt height adjuster is locked in the lowest position and is aligned with the finisher opening during installation.
Tighten the D-ring anchor nut and seat belt height adjuster bolts to specification.
Make sure both the D-ring anchor and seat belt height adjuster operate freely.
Always perform an inspection after repair to make sure the system is functioning within specifications. Refer to Inspection .
