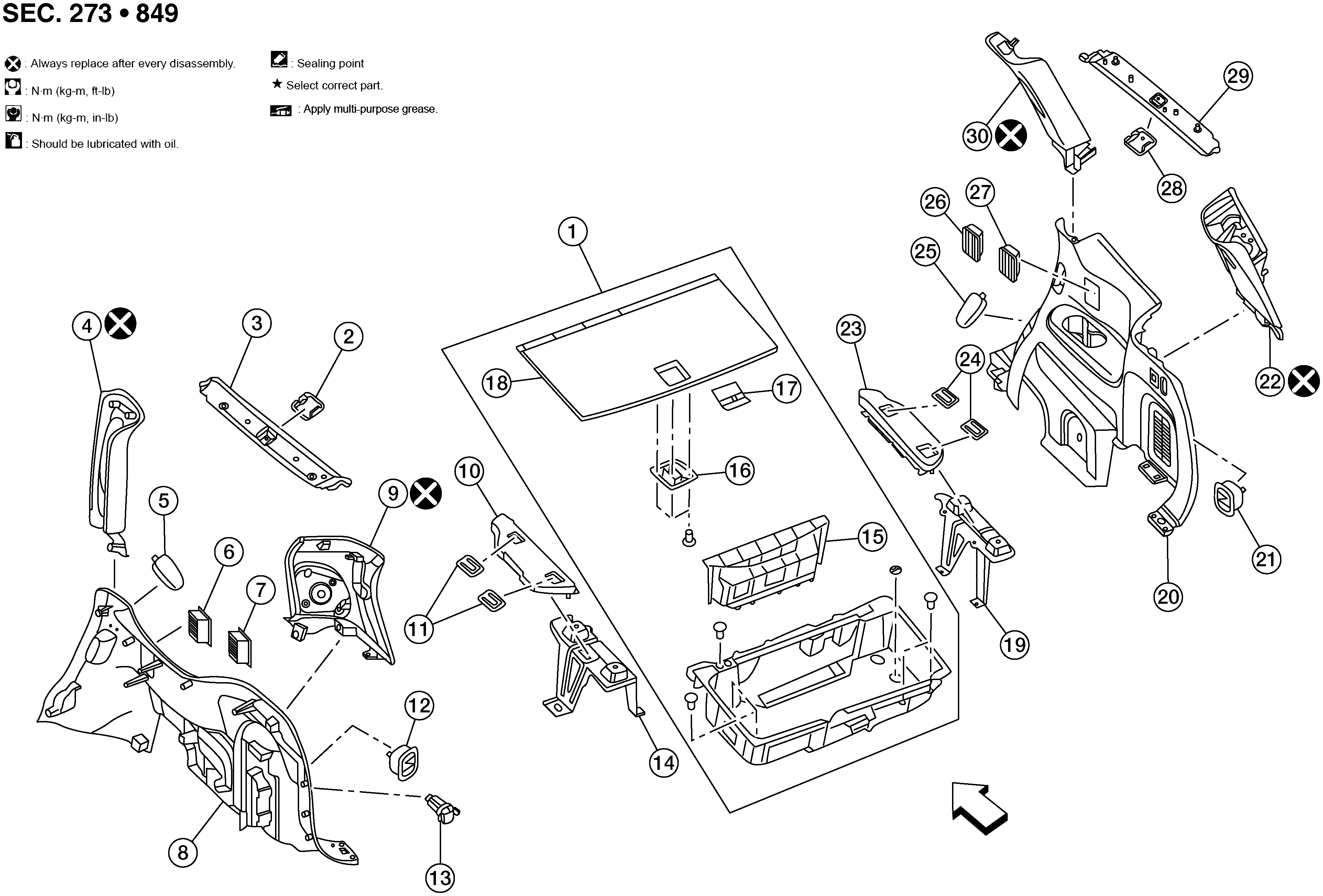

Exploded View

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Storage box assembly	2.	Luggage side upper finisher cover (LH)	3.	Luggage side upper finisher (LH)
4.	Rear pillar finisher (LH)	5.	Luggage side lower finisher cover (LH)	6.	Rear ventilator grille [LH (if equipped)]
7.	USB charge port [LH (if equipped)]	8.	Luggage side lower finisher (LH)	9.	Back pillar finisher (LH)
10.	Storage box side finisher (LH)	11.	Storage box side finisher hook (LH)	12.	Luggage side lower finisher coat hook (LH)
13.	Power socket	14.	Storage box side finisher bracket (LH)	15.	Spare tire cover
16.	Storage box board	17.	Storage box handle	18.	Storage box lid
19.	Storage box side finisher bracket (RH)	20.	Luggage side lower finisher (RH)	21.	Luggage side lower finisher coat hook (RH)
22.	Back pillar finisher (RH)	23.	Storage box side finisher (RH)	24.	Storage box side finisher hook (RH)
25.	Luggage side lower finisher cover (RH)	26.	USB charge port [RH (if equipped)]	27.	Rear ventilator grille [RH (if equipped)]
28.	Luggage side upper finisher cover (RH)	29.	Luggage side upper finisher (RH)	30.	Rear pillar finisher (RH)
	Front
