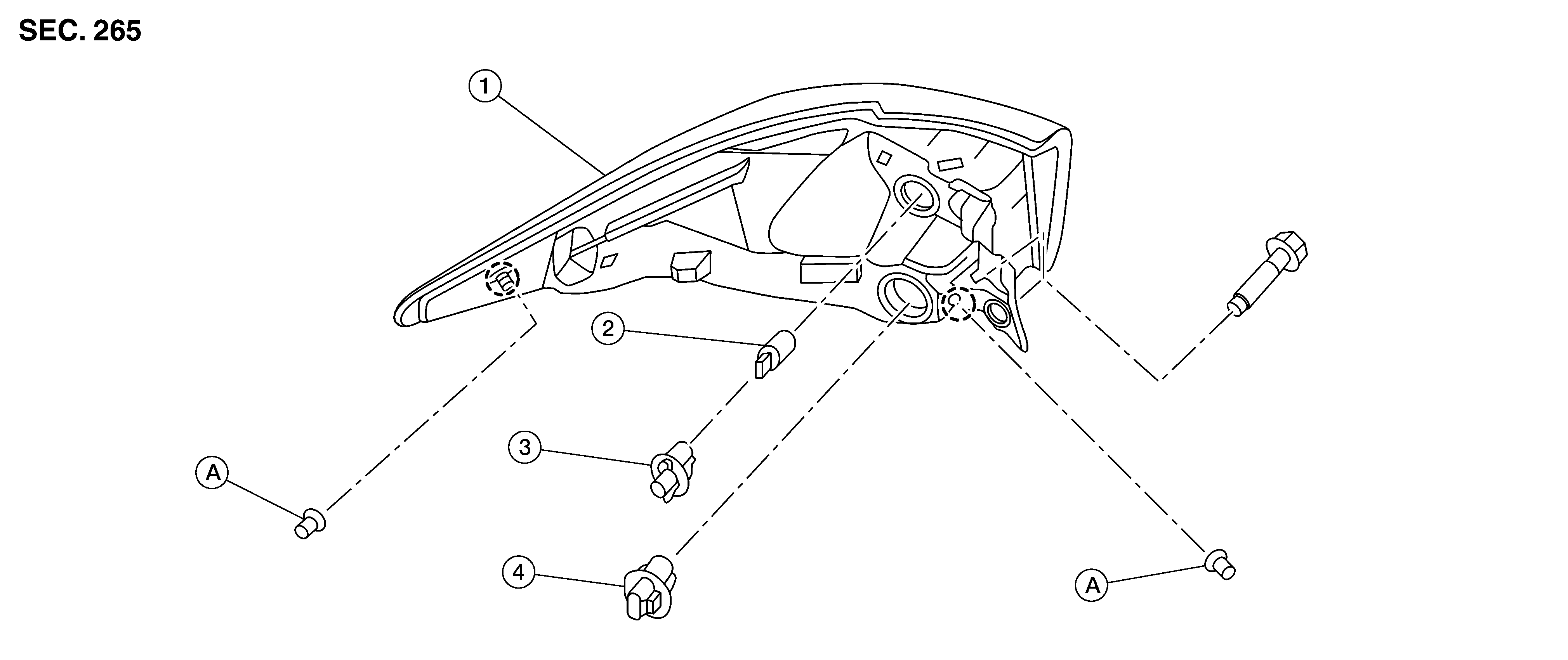

Exploded View
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Rear combination lamp (body side)
|
2.
|
Rear turn signal bulb
|
3.
|
Rear turn bulb socket
|
|
4.
|
Rear LED lamp harness connector
|
A.
|
Grommet
|
|
Locating pin
|
