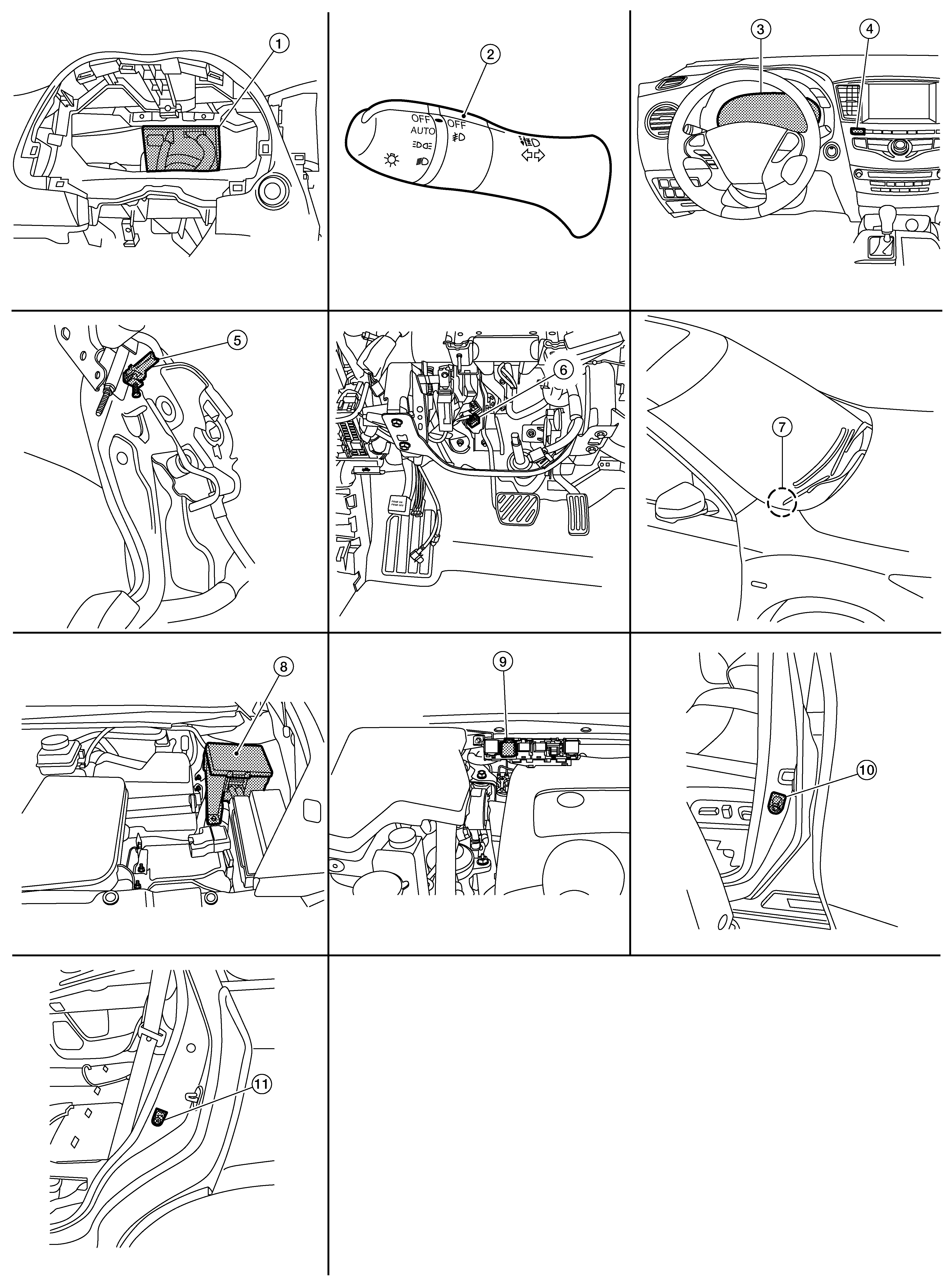

Component Parts Location
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
BCM (view with combination meter removed) |
2. |
Combination switch (lighting and turn signal switch) |
3. |
Combination meter |
|
4. |
Multifunction switch (hazard switch) |
5. |
Parking brake switch |
6. |
Stop lamp switch |
|
7. |
Optical sensor |
8. |
IPDM E/R (Front fog lamp relay, Headlamp high relay, Headlamp low relay, Tail lamp relay) |
9. |
Daytime running light relay |
|
10. |
Front door switch LH (RH similar) |
11. |
Rear door switch LH (RH similar) |
