Exploded View

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

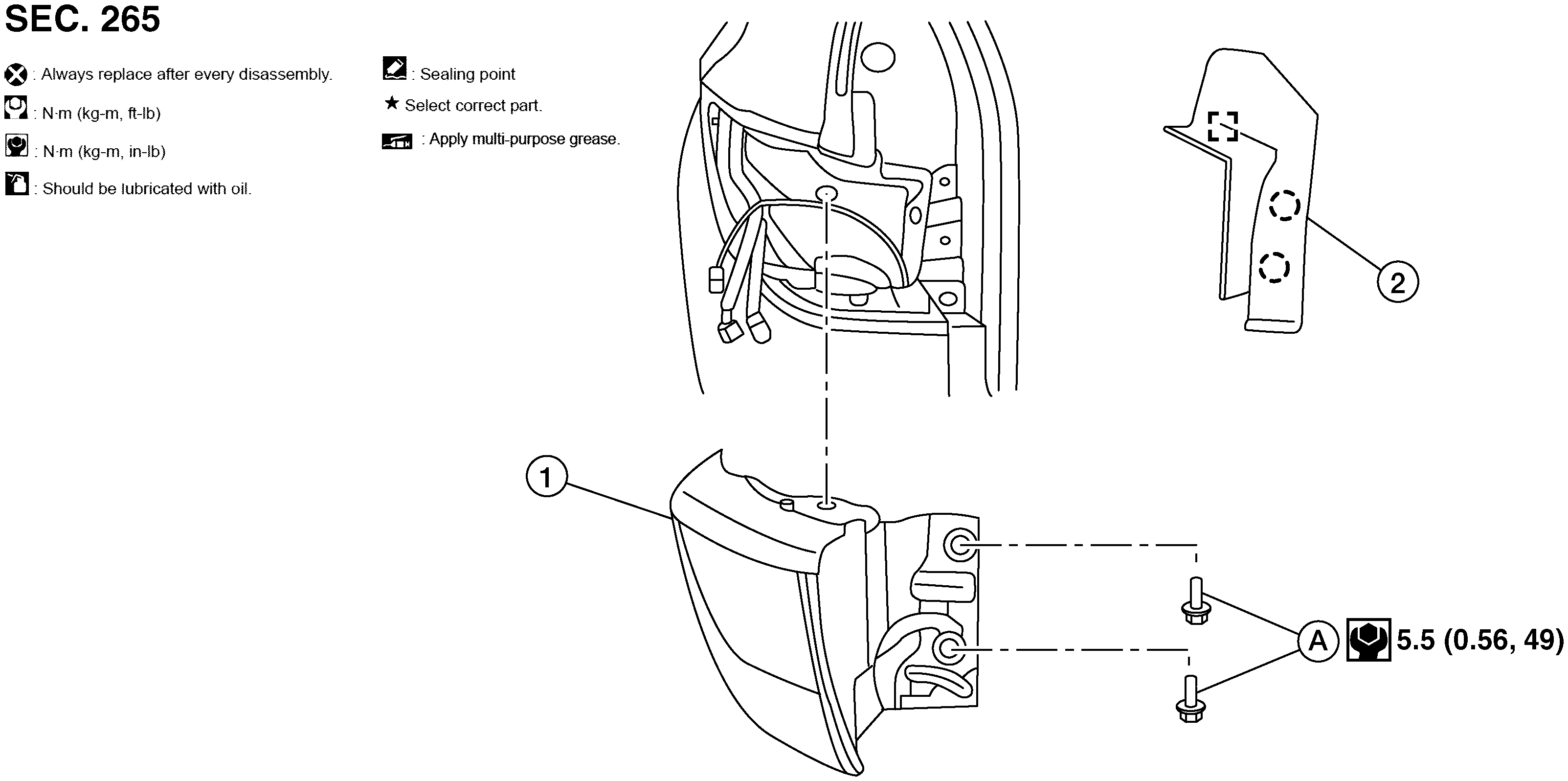

Fig 1: Rear Combination Lamp (Body Side) Components With Torque Specification
GNSAWLIA2791Z-791Courtesy of NISSAN NORTH AMERICA, INC.

1.

Rear combination lamp (body side)

2.

Rear combination lamp (body side) bolt cover

A.

Bolt

SYMBOL

Metal clip

SYMBOL

Pawl
