Exploded View

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

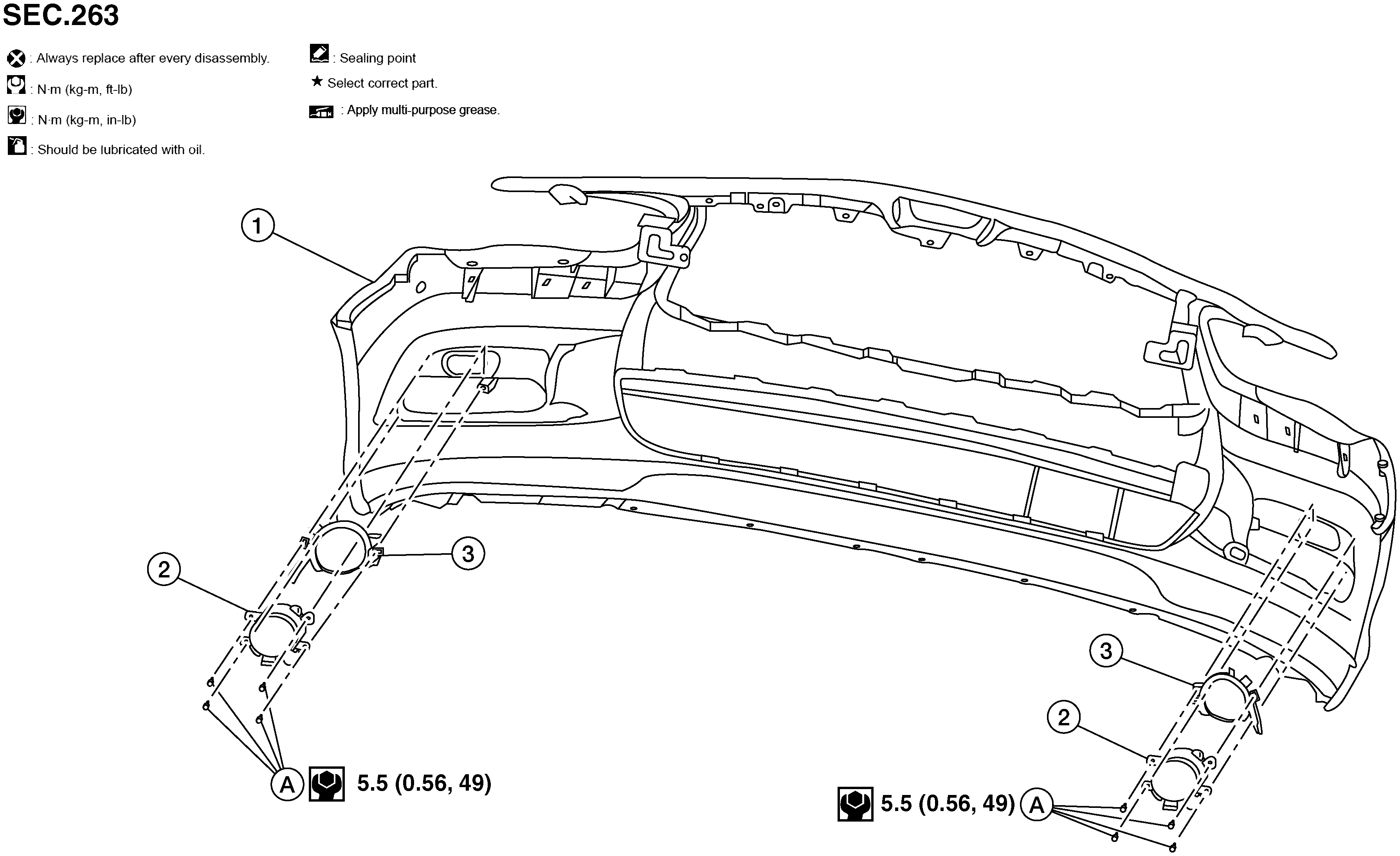

Fig 1: Front Fog Lamp Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front bumper fascia	2.	Front fog lamp	3.	Front fog bracket
A.	Bolt
