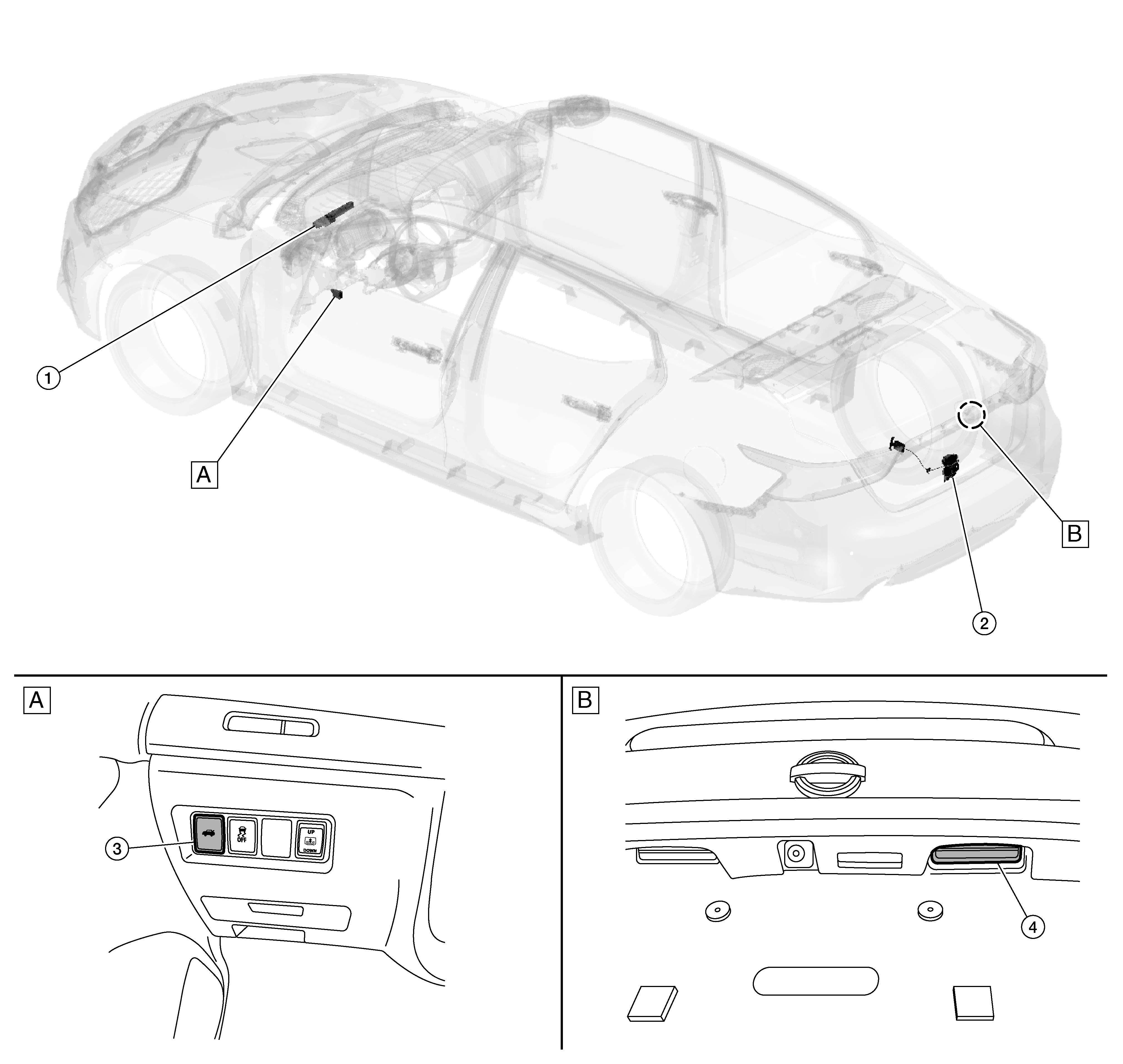

Explode View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
A. |
View of left side of the instrument panel |
B. |
View of trunk lid |
|
No. |
Component |
Function |
|
1. |
BCM |
BCM controls the door lock system. Refer to Component Parts Location for detailed installation location. |
|
2. |
Trunk lamp switch and trunk release solenoid (trunk release solenoid) |
Opens the trunk with the open signal from the BCM. |
|
3. |
Trunk lid opener switch |
Transmits the trunk open operation to the BCM. |
|
4. |
Trunk opener request switch |
Rear door lock actuator locks/unlocks the rear door latch assembly. |
