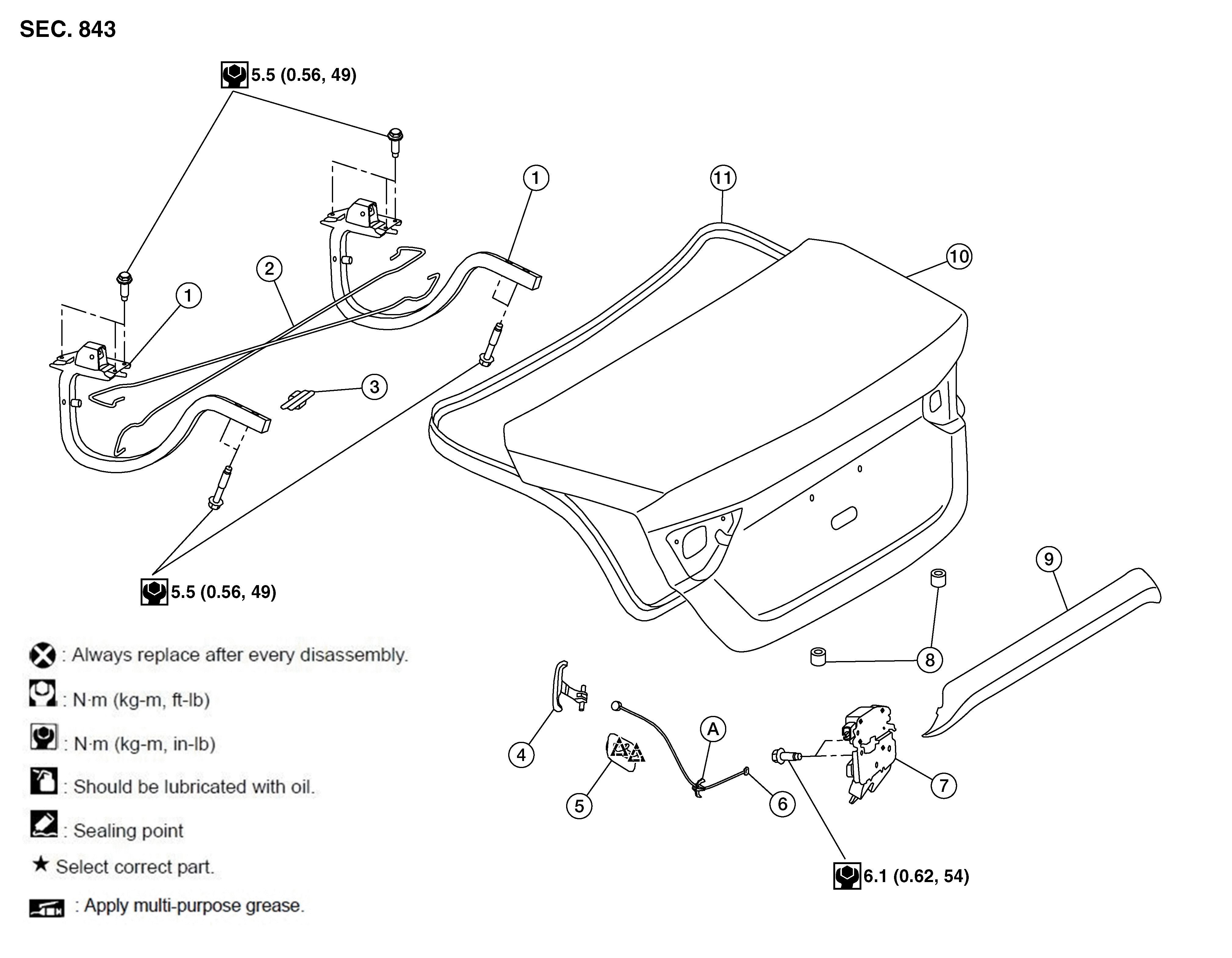

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Trunk lid hinge (LH/RH) |
2. |
Torsion bar (LH/RH) |
3. |
Torsion bar clip |
|
4. |
Emergency release lever handle |
5. |
Emergency release lever clip |
6. |
Emergency release lever cable |
|
7. |
Trunk lamp switch and trunk release solenoid |
8. |
Trunk lid bumper rubber |
9. |
License plate finisher |
|
10. |
Trunk lid |
11. |
Trunk lid weather strip |
|
Clips |
