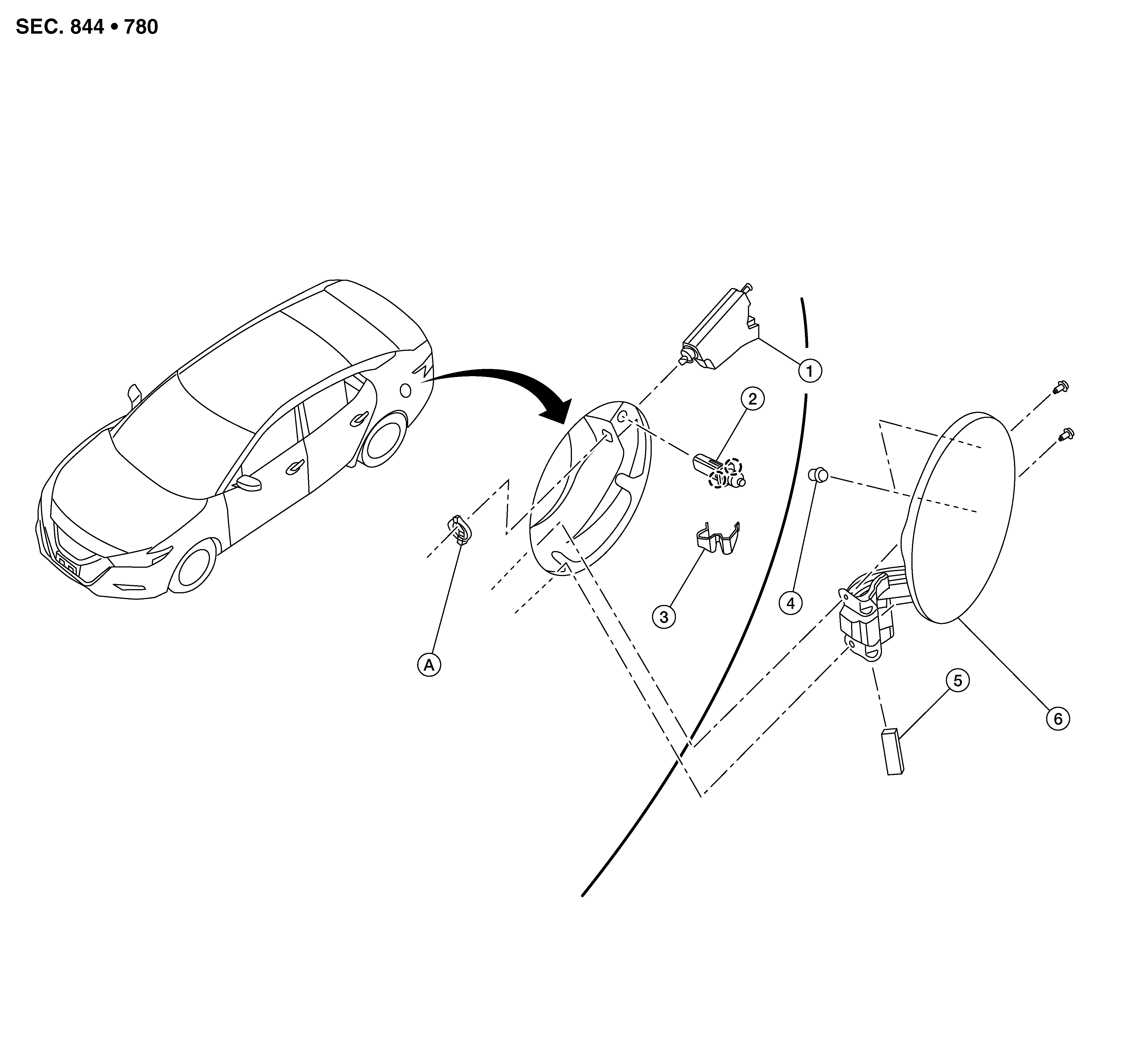

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Fuel filler lid lock actuator
|
2.
|
Fuel filler opener
|
3.
|
Fuel filler spring
|
|
4.
|
Fuel filler lid bumper rubber
|
5.
|
Fuel filler lid bumper rubber
|
6.
|
Fuel filler lid
|
|
A.
|
Fuel filler lid lock nut
|
|
Pawls
|
