System Diagram

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

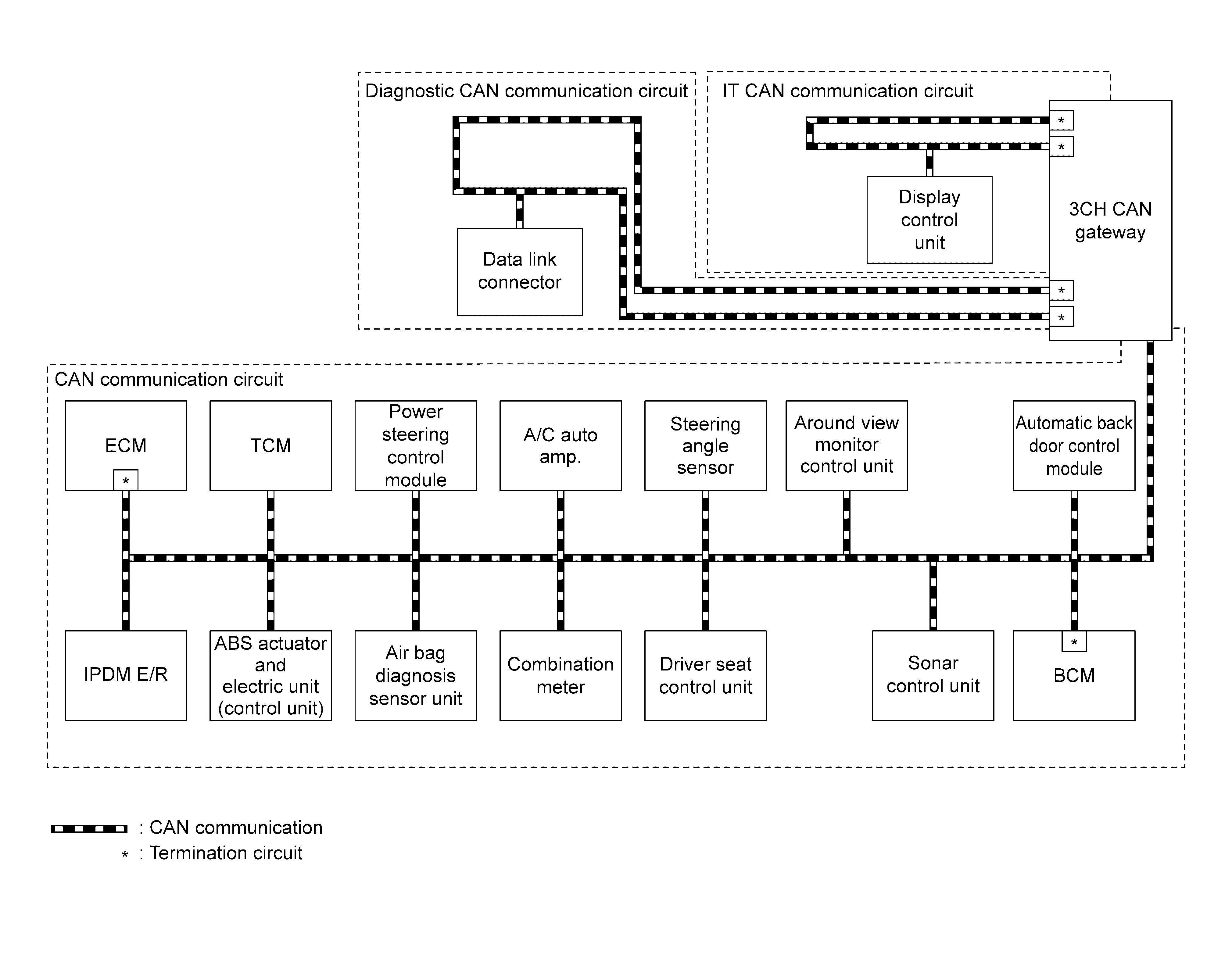

Without Blind Spot Warning System

GNSILL0218855-855Courtesy of NISSAN NORTH AMERICA, INC.

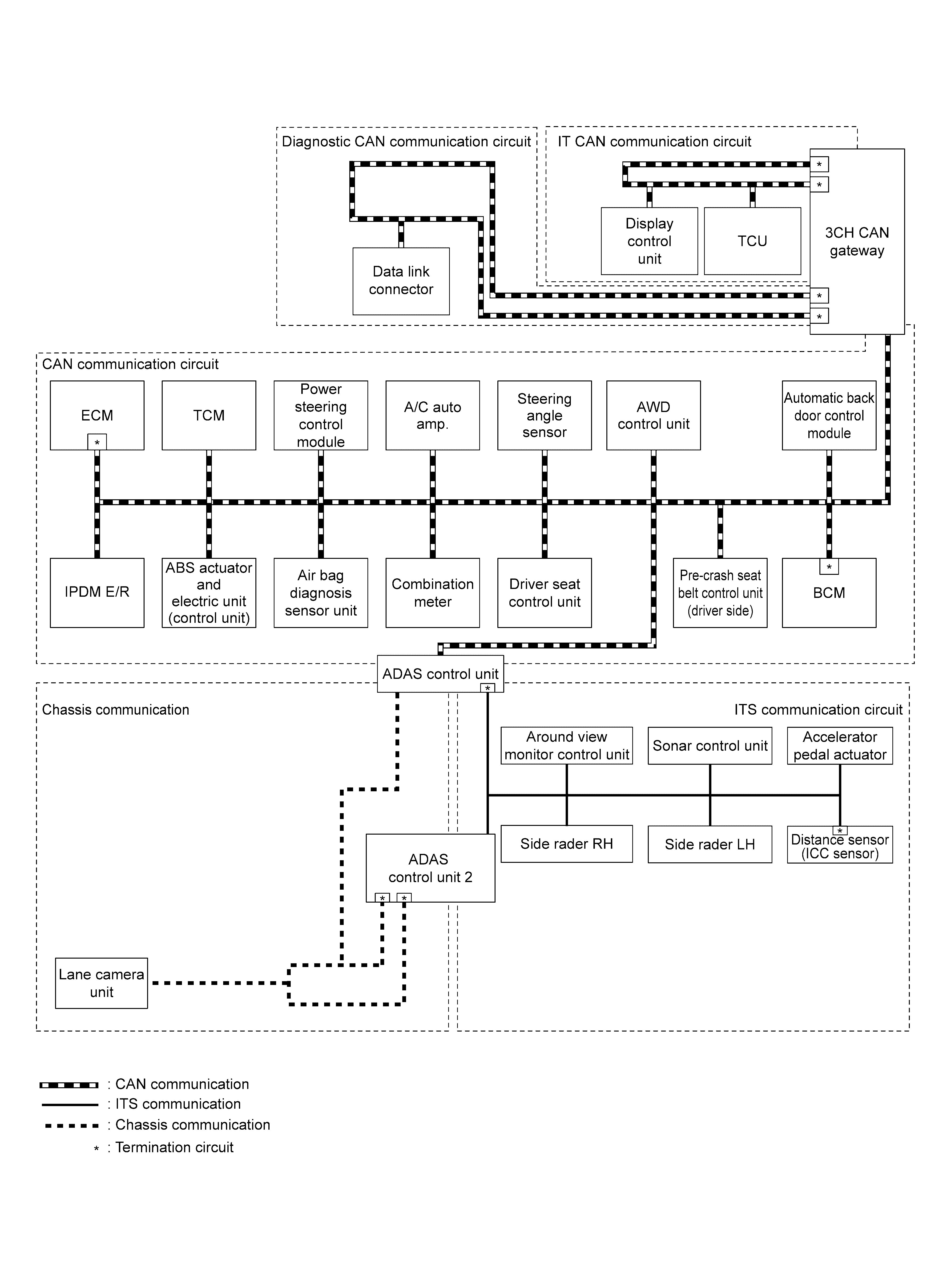

With Blind Spot Warning System

GNSILL0218854-854Courtesy of NISSAN NORTH AMERICA, INC.
