System Diagram
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

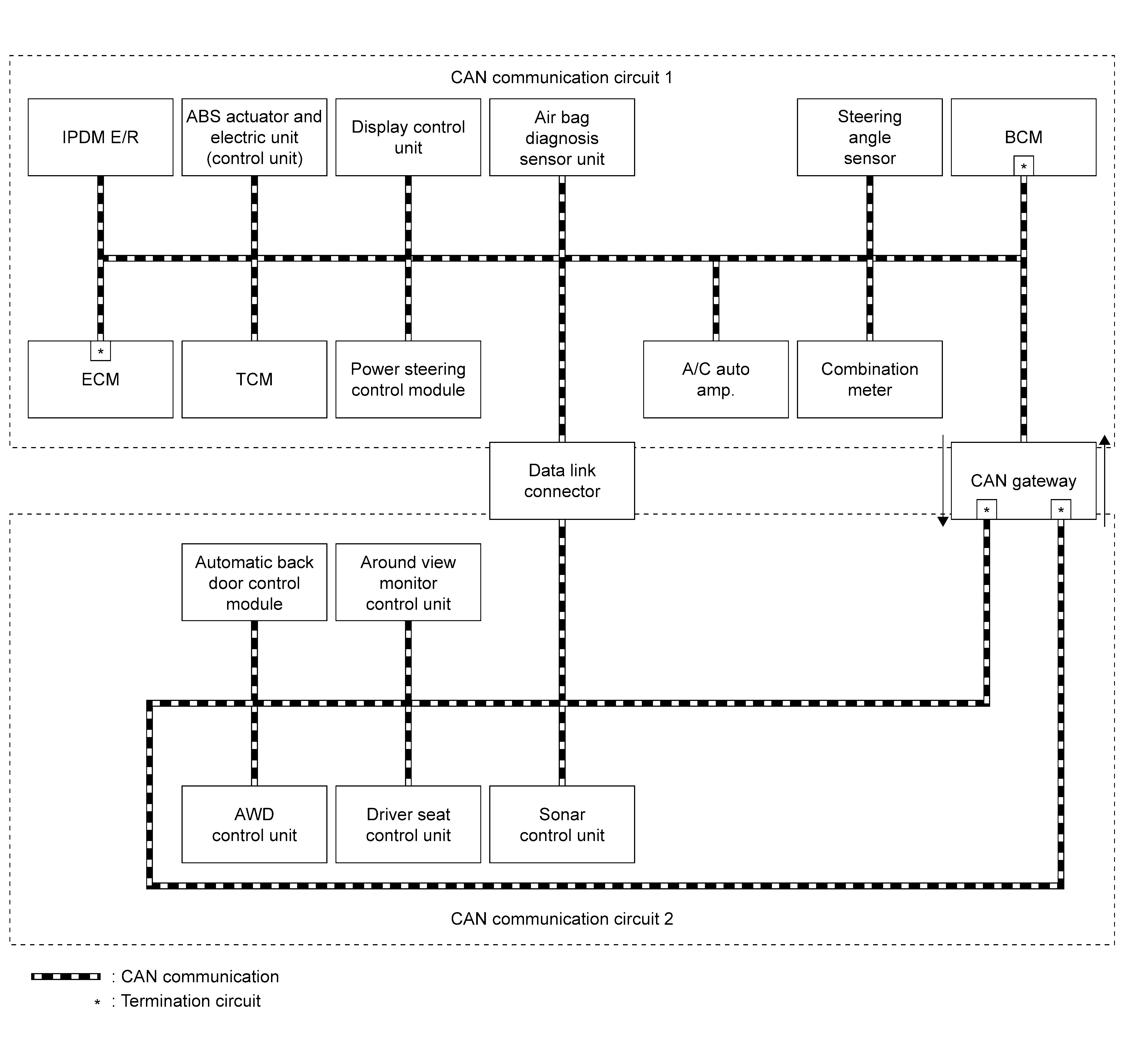

For Mexico Without ICC System
 Courtesy of NISSAN NORTH AMERICA, INC.
|

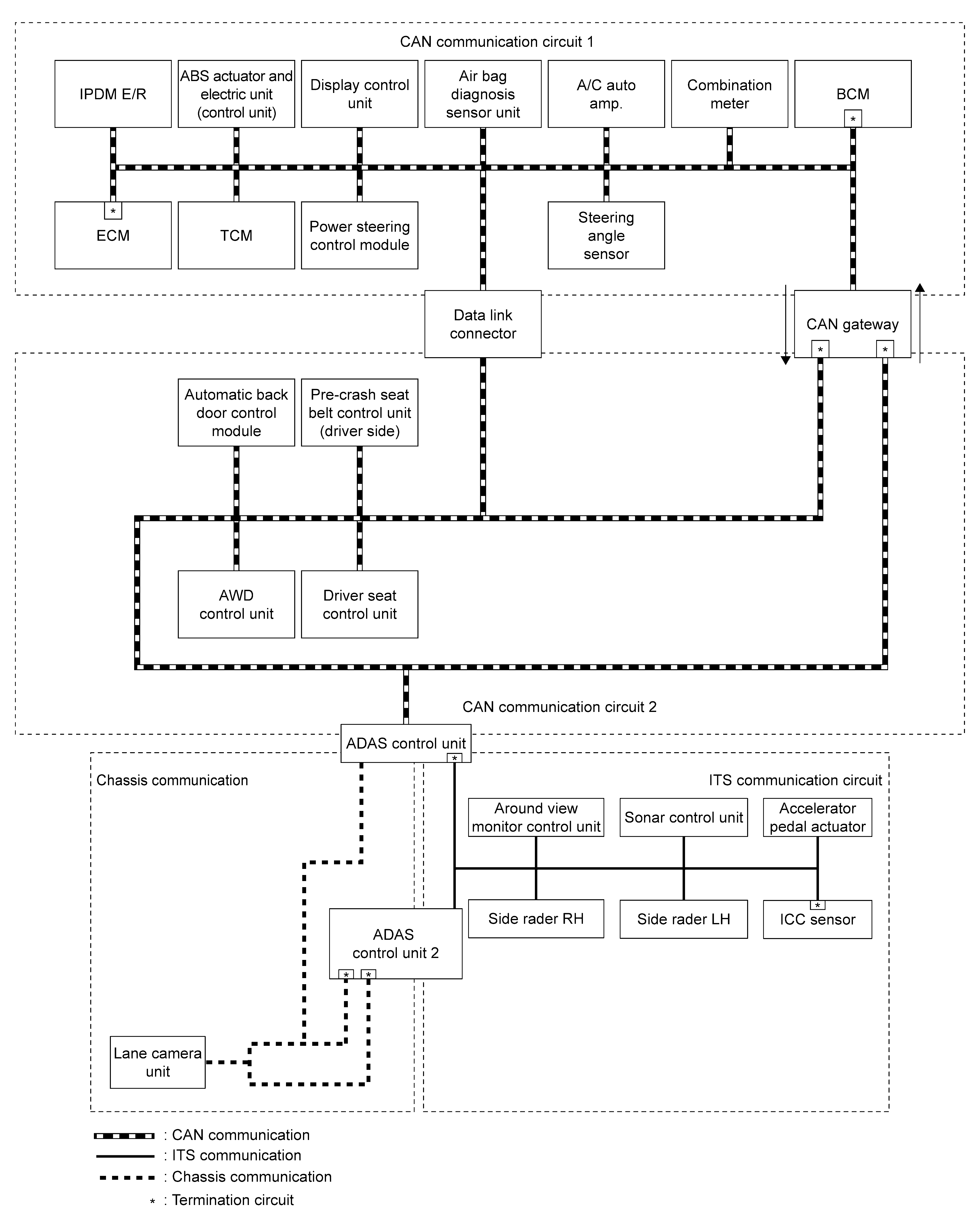

For Mexico With ICC System
 Courtesy of NISSAN NORTH AMERICA, INC.
|

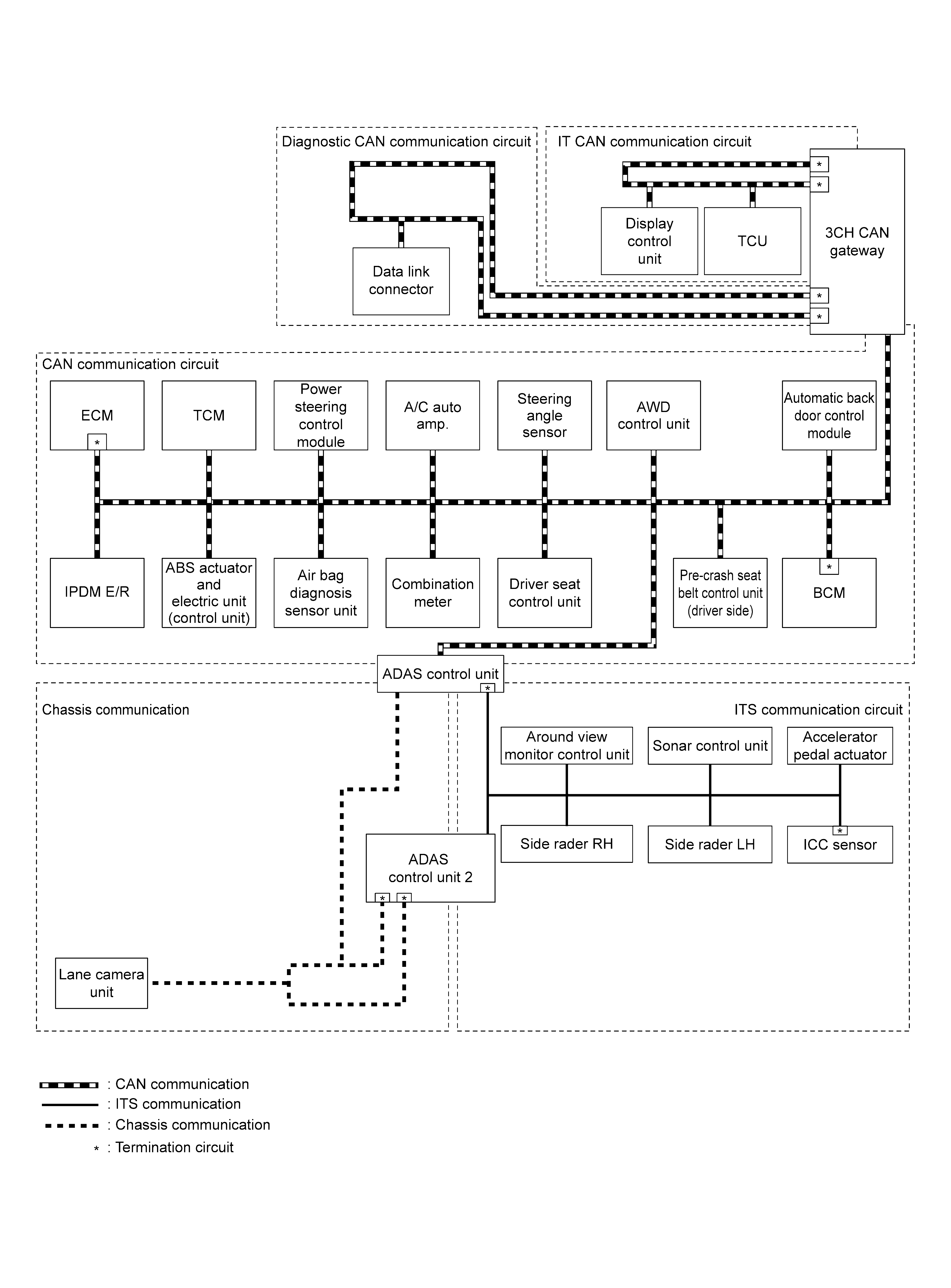

Except For Mexico
 Courtesy of NISSAN NORTH AMERICA, INC.
|
