Vehicle Equipment Identification Information
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Check CAN system type from the vehicle shape and equipment.
|

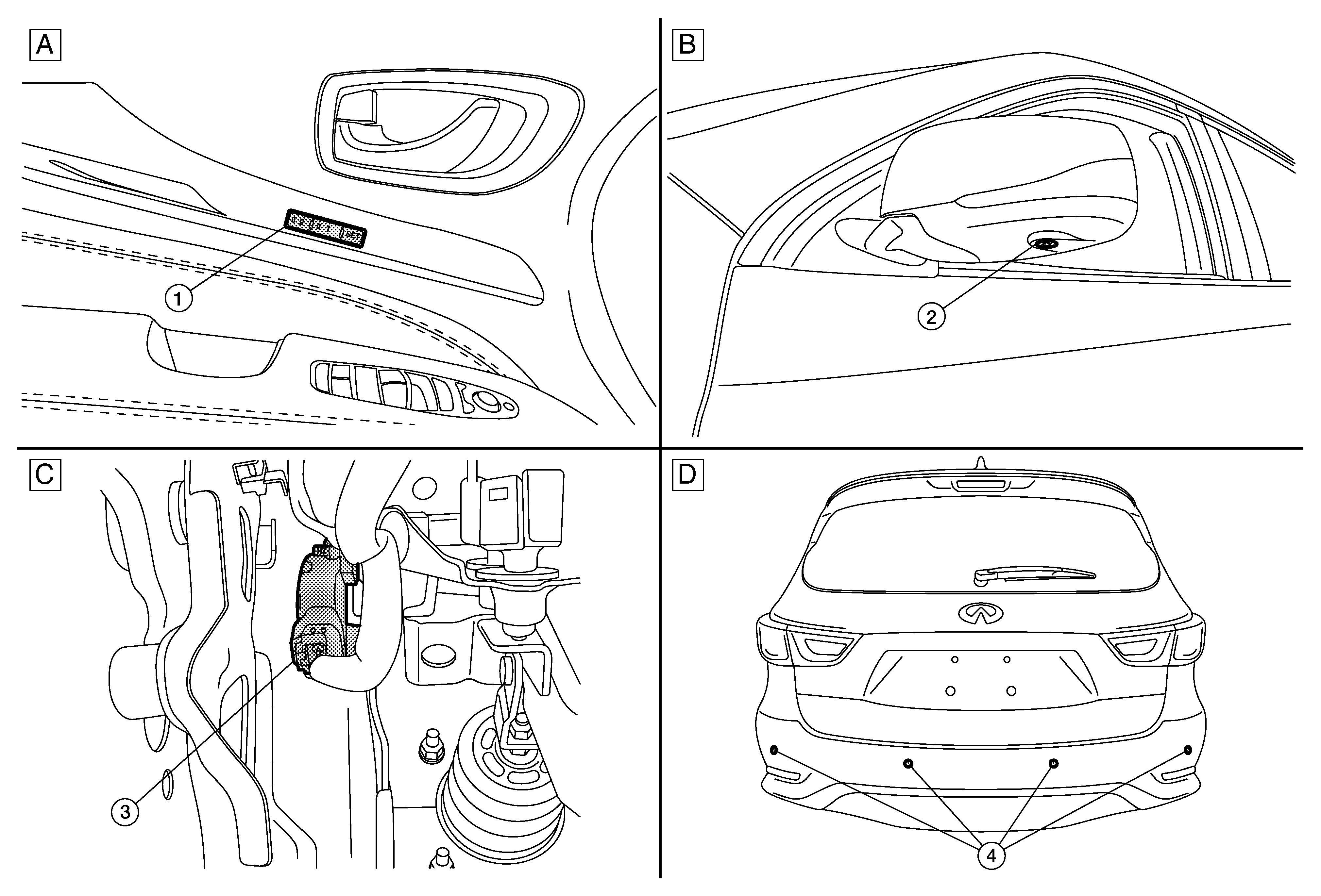

1. |
Seat memory switch |
2. |
Driver side view camera |
3. |
Brake pedal stroke sensor (pedal periphery) |
|
4. |
Sonar sensors |
||||
|
A. |
With automatic drive positioner |
B. |
With around view monitor system |
C. |
With pre-crash seat belt system |
|
D. |
With sonar system |
