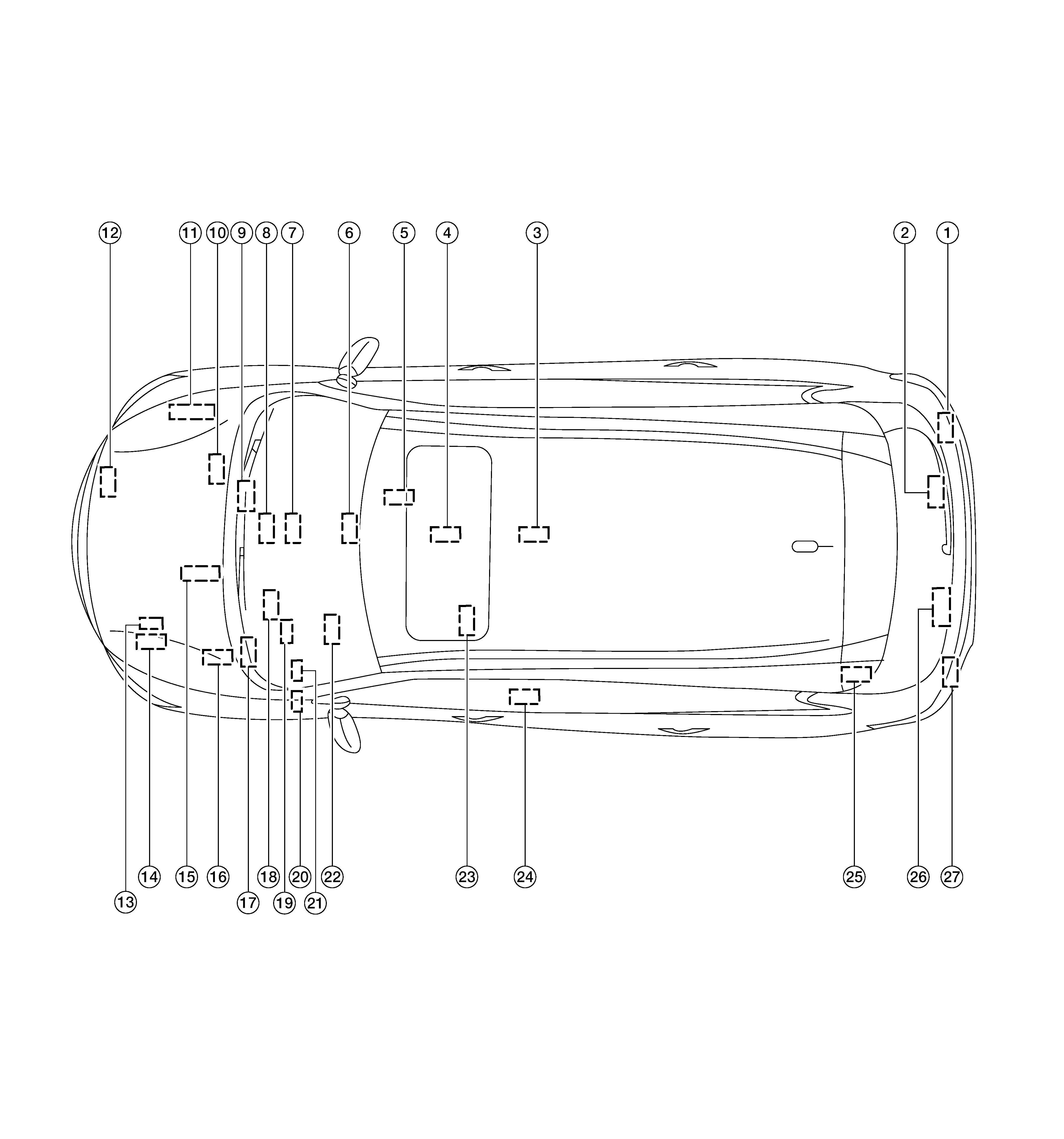

Component Parts Location - Early Production
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Side radar RH |
2. |
ADAS control unit |
3. |
Air bag diagnosis sensor unit |
|
4. |
TCU |
5. |
Around view monitor control unit |
6. |
Lane camera unit |
|
7. |
A/C auto amp. |
8. |
Display control unit |
9. |
|
|
10. |
ABS actuator and electric unit (control unit) |
11. |
Power steering control module |
12. |
ICC sensor |
|
13. |
TCM |
14. |
ECM |
15. |
Accelerator pedal actuator |
|
16. |
IPDM E/R |
17. |
Data link connector |
18. |
BCM |
|
19. |
Combination meter |
20. |
ADAS control unit 2 |
21. |
Sonar control unit |
|
22. |
Steering angle sensor |
23. |
Driver seat control unit |
24. |
Pre-crash seat belt control unit (driver side) |
|
25. |
Automatic back door control module |
26. |
AWD control unit |
27. |
Side radar LH |
