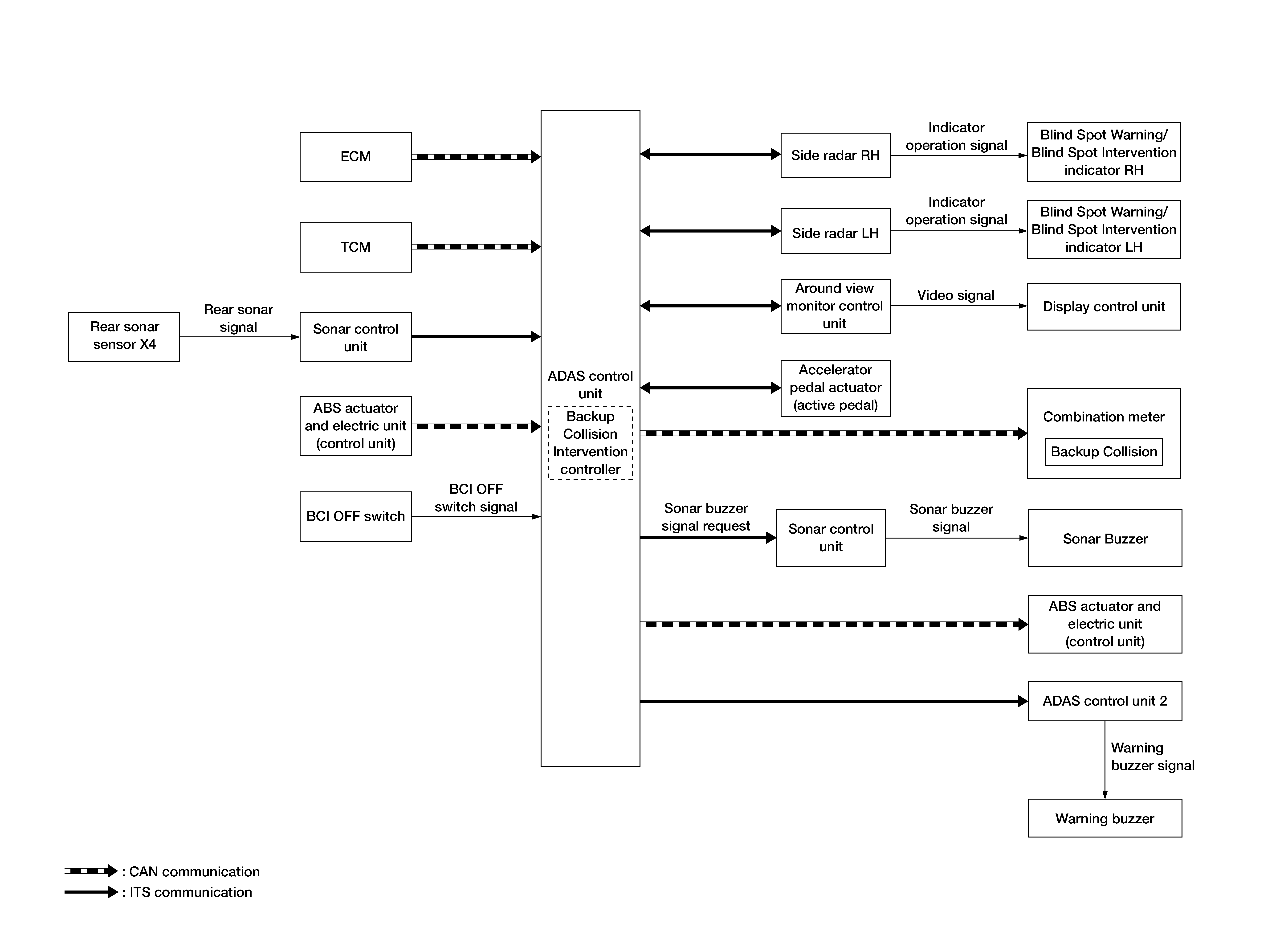

System Diagram

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
GNSALOIA0024GB-024Courtesy of NISSAN NORTH AMERICA, INC.
