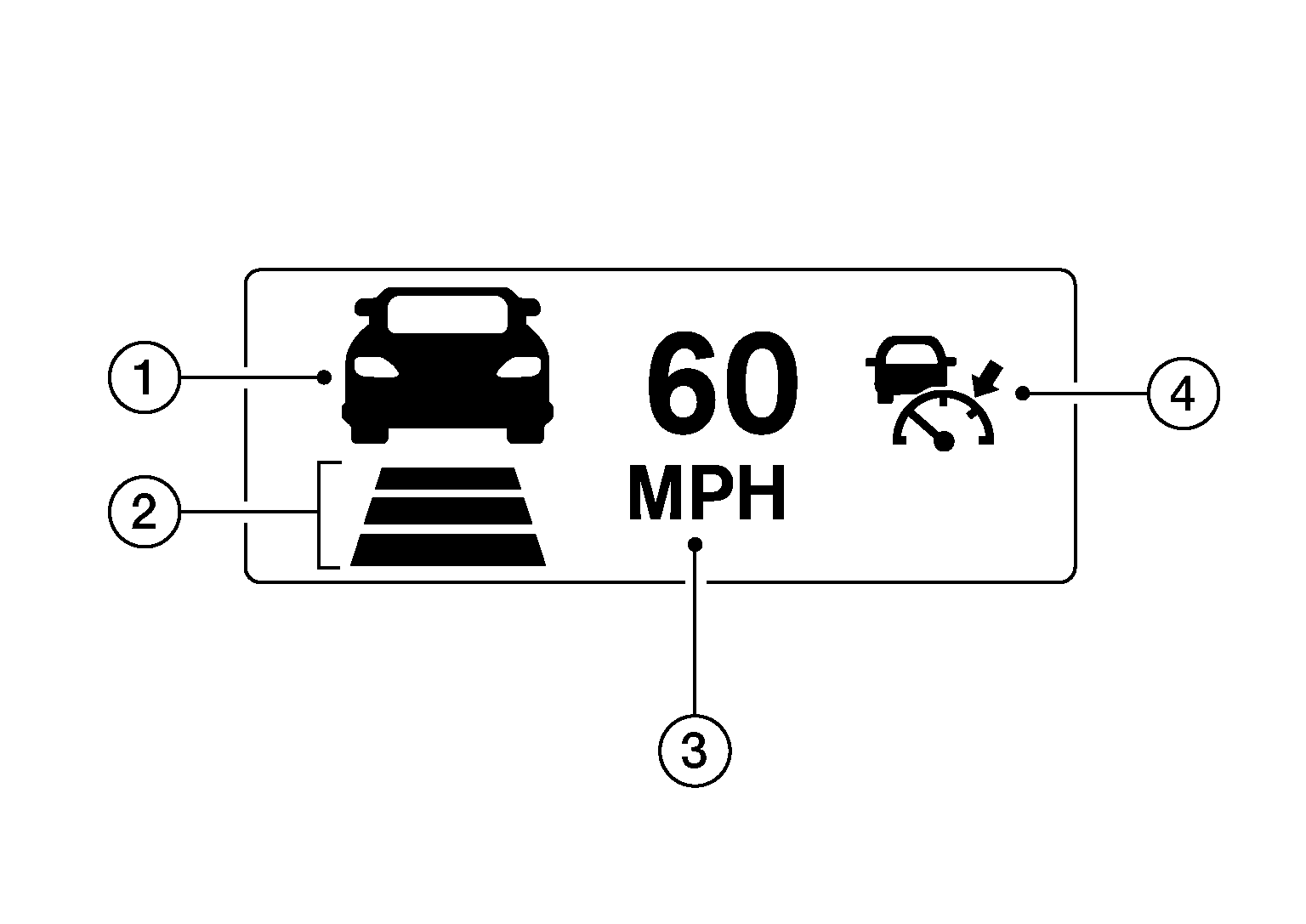

ICC System Display (On The Information Display)
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
No. |
Display item |
Description |
|
1. |
Vehicle ahead detection indicator |
Indicates whether it detects a vehicle ahead |
|
2. |
Set distance indicator |
Indicates the selected distance between vehicles set with the DISTANCE switch |
|
3. |
Set vehicle speed indicator |
|
|
4. |
Main switch indicator (white) |
White: Indicates the main switch is ON (ICC system ON) |
|
ICC system warning lamp (orange) |
Orange: Indicates that a malfunction occurred in the ICC system |
