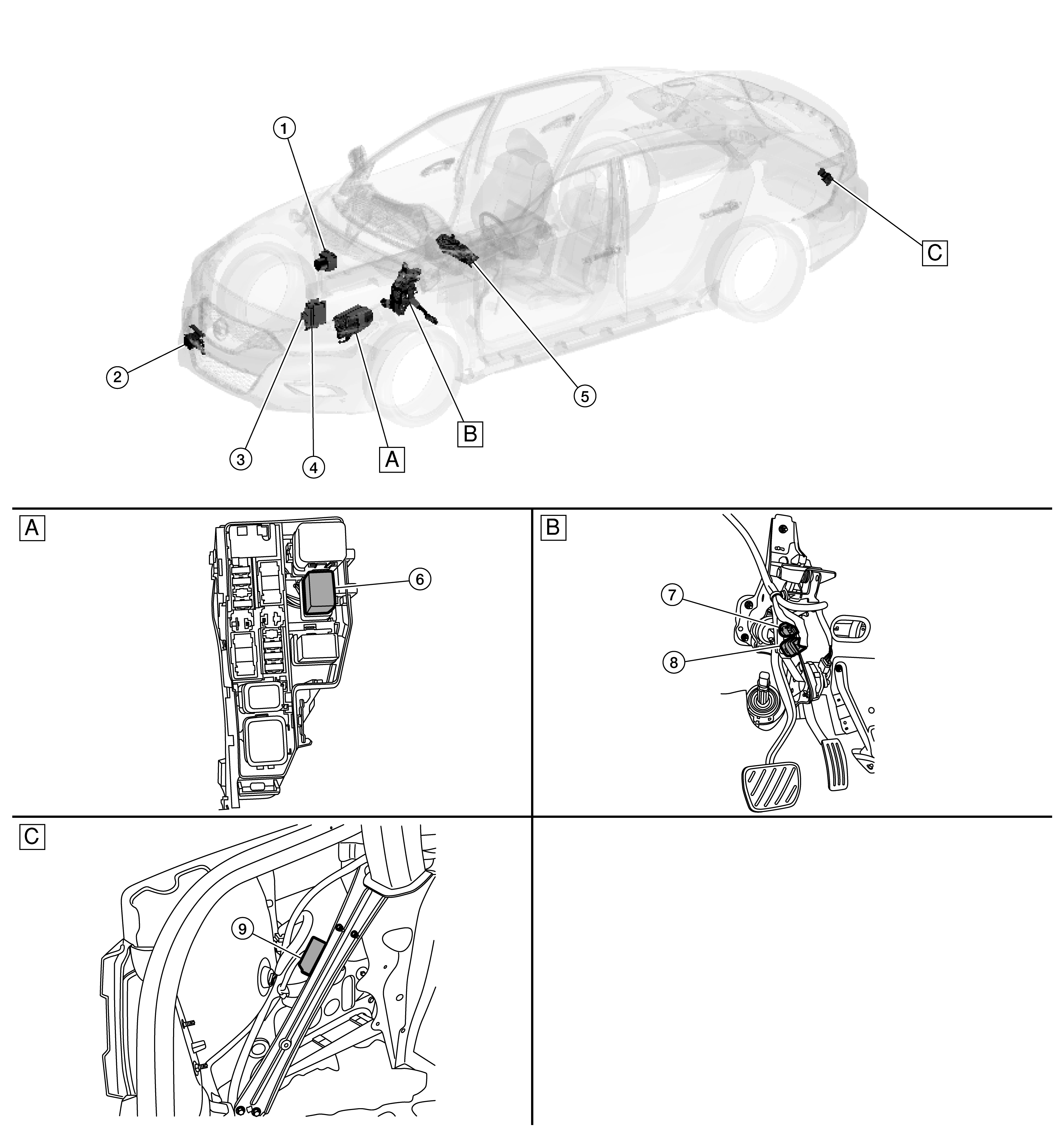

Component Parts Location

A.

Engine room LH

B.

Brake pedal area

C.

Luggage compartment LH

No.

Component

Function

1.

ABS actuator and electric unit (control unit)

• ABS actuator and electric unit (control unit) transmits the vehicle speed signal (wheel speed), stop lamp signal and VDC/TCS/ABS system operation condition to ADAS control unit via CAN communication.
• ABS actuator and electric unit (control unit) controls the brake based on a brake fluid pressure control signal received from the ADAS control unit via CAN communication.

Refer to ABS Actuator and Electric Unit (Control Unit) for detailed installation location.

2.

Distance sensor (ICC sensor)

• Refer to Distance Sensor (ICC Sensor) .

3.

TCM

• TCM transmits the signal related to CVT control to ADAS control unit via CAN communication.

• Refer to Component Parts Location for detailed installation location.

4.

ECM

• ECM transmits the accelerator pedal position signal, brake pedal position switch signal, stop lamp switch signal, ICC steering switch signal, etc., to ADAS control unit via CAN communication.
• ECM controls the electric throttle control actuator based on the engine torque demand received from the ADAS control unit via CAN communication.

• Refer to ECM for detailed installation location.

5.

Combination meter

(Information display, AEB indicator lamp, buzzer)

• Description: Refer to Combination Meter .
• System display and warning: Refer to Menu Displayed by Pressing Each Switch .

6.

ICC brake hold relay

Refer to ICC Brake Hold Relay .

7.

Brake pedal position switch

Refer to Brake Pedal Position Switch/Stop Lamp Switch .

8.

Stop lamp switch

9.

ADAS control unit

• Refer to ADAS Control Unit .
• Refer to Component Parts Location for detailed installation location.
