Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The steering switches are serviced as an assembly.
  1. Remove steering wheel. Refer to Removal and Installation .

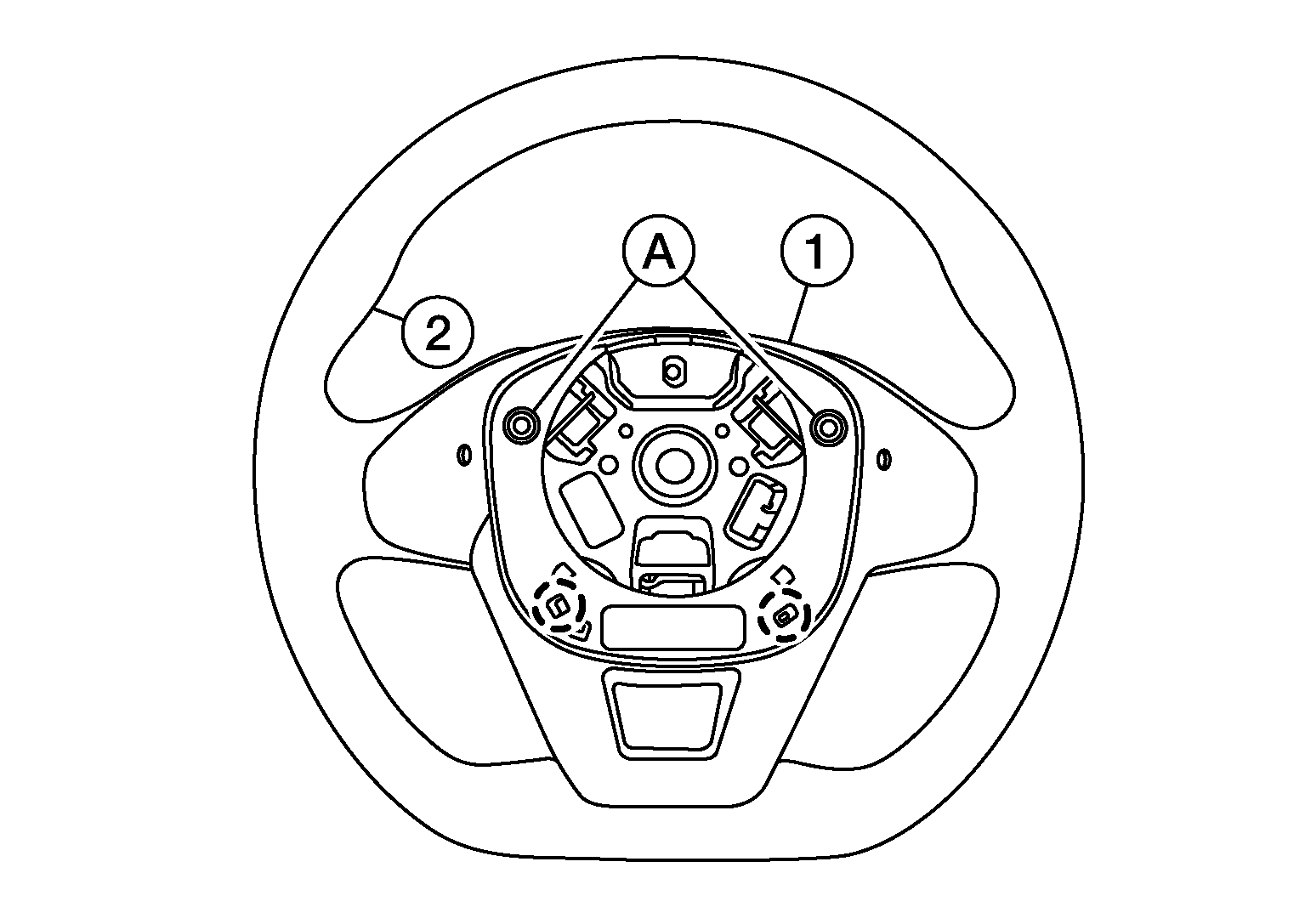

  2. Remove screws (A).
    GNSALNIA1731Z-731Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release pawls using suitable tool, then remove steering wheel rear finisher (1) from steering wheel (2).

    SYMBOL

    : Pawl

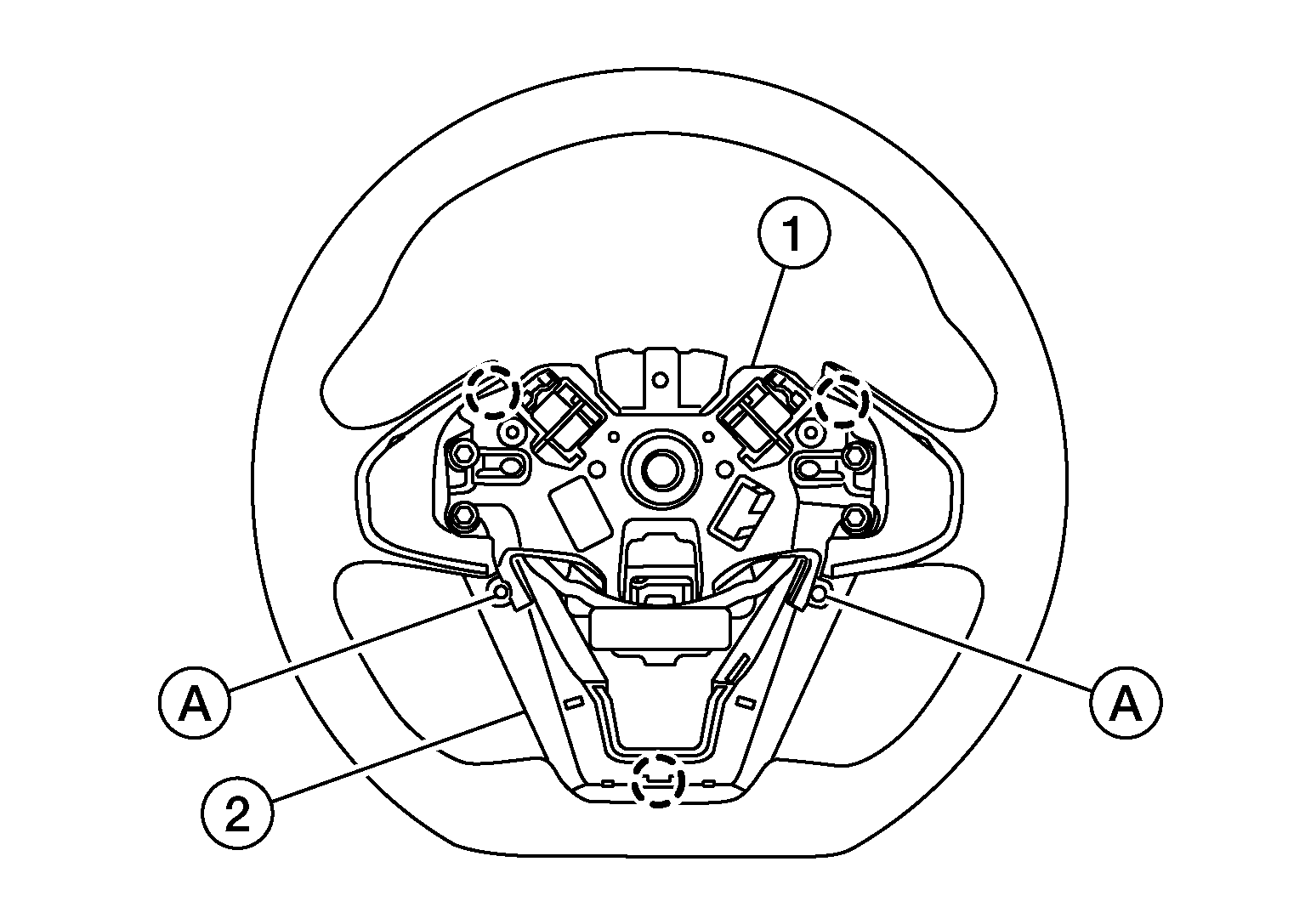

  4. Remove screws (A)
    GNSAWNIA4073Z-073Courtesy of NISSAN NORTH AMERICA, INC.
  5. Release pawls using suitable tool, then remove steering wheel front finisher (2) from steering wheel (1).

    SYMBOL

    : Pawl

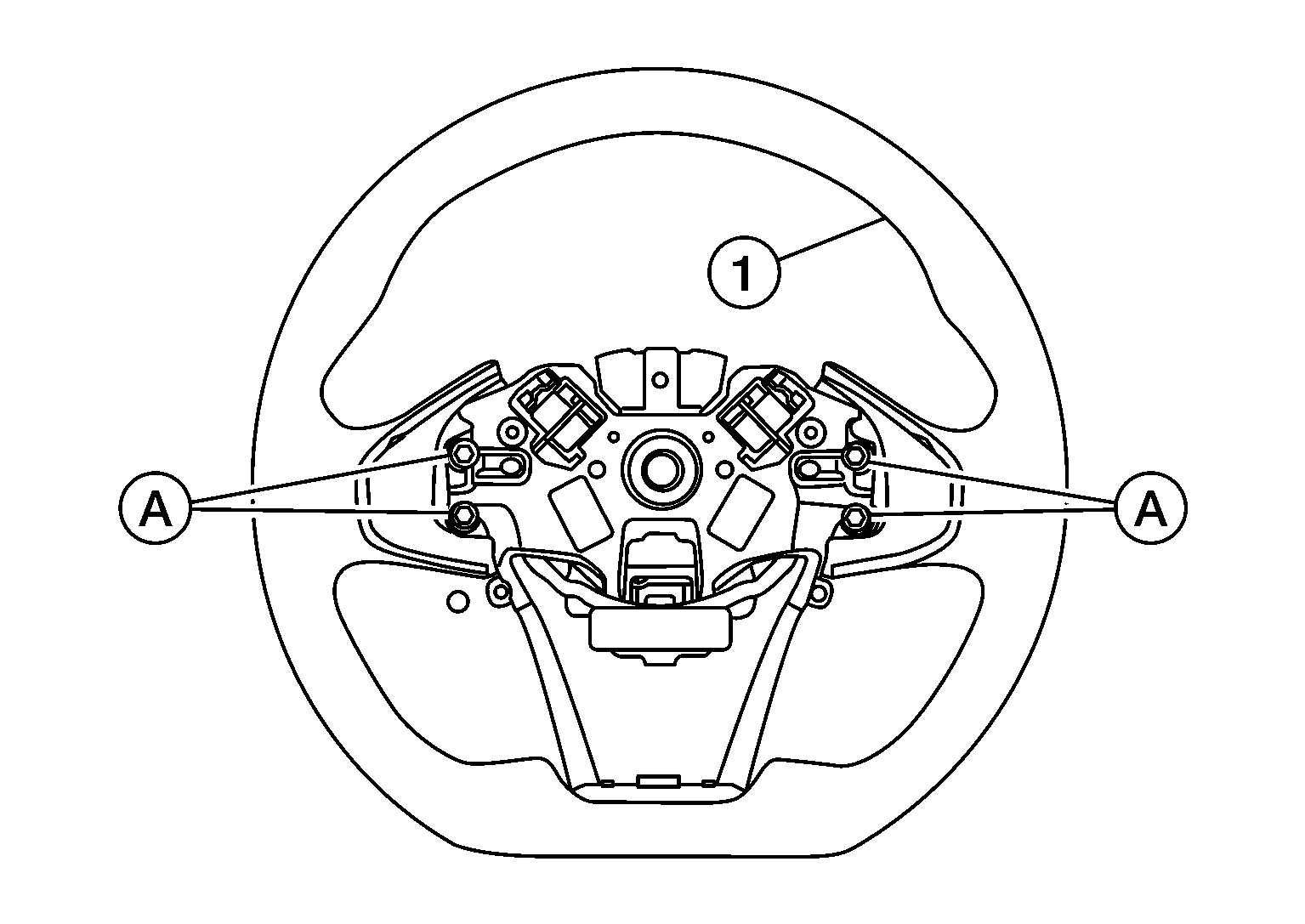

  6. Remove screws (A) and remove steering switches from steering wheel (1).
    GNSALNIA1733Z-733Courtesy of NISSAN NORTH AMERICA, INC.
