Removal and Installation - Boot: Installation

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

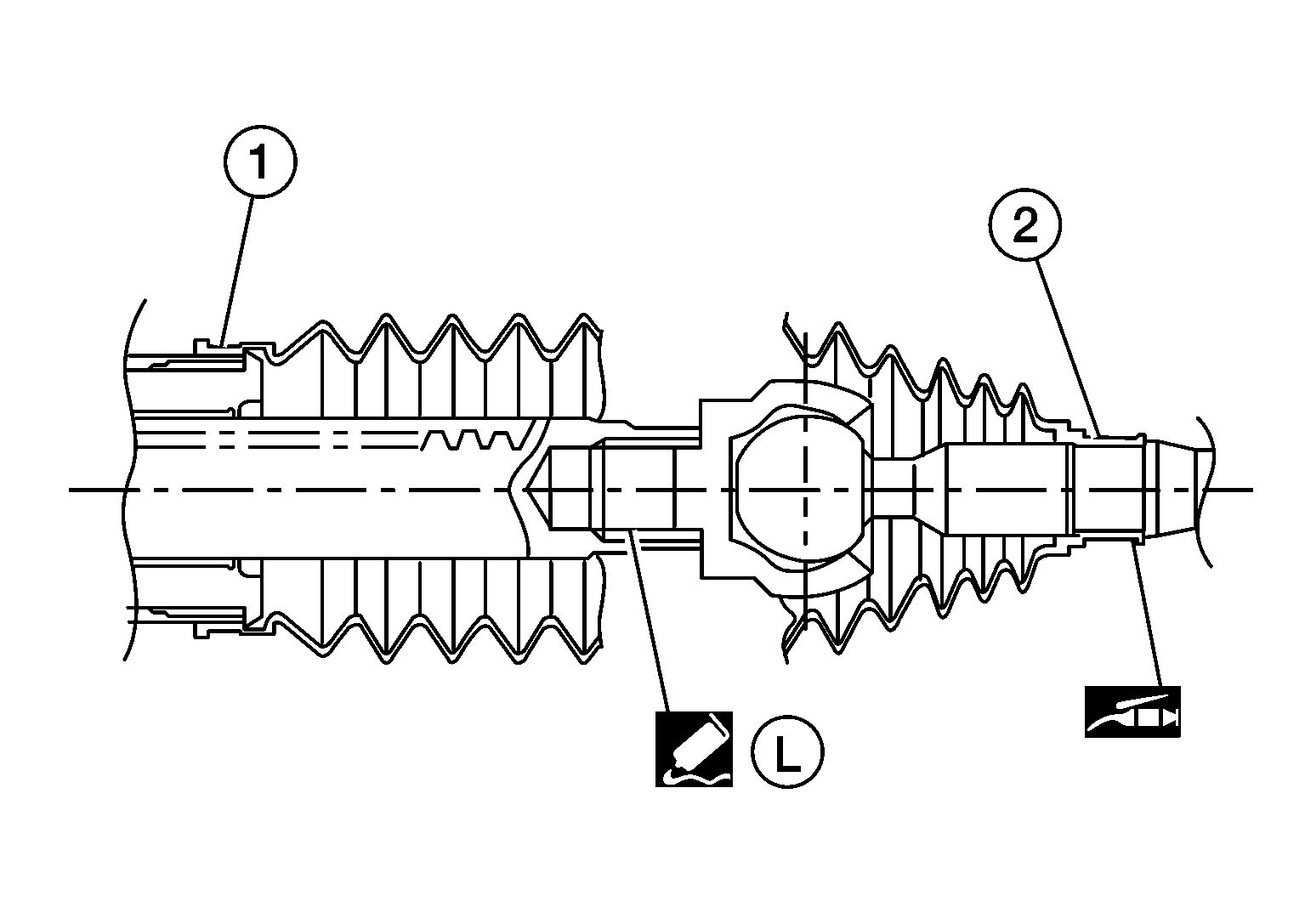

Install large end of boot (1) to steering gear housing.

Courtesy of NISSAN NORTH AMERICA, INC.
Apply silicone grease between the inner socket and small end of boot (2). Install small end of boot to inner socket boot mounting groove.
CAUTION: To prevent boot deformation or damage during toe-in adjustment, apply silicone grease between the inner socket and small end of boot.
Install small boot clamp.

Courtesy of NISSAN NORTH AMERICA, INC.

Install large boot clamp using Tool.

CAUTION: Do not reuse large boot clamp.

Tool number

: KV40107300 (J-51751)

Install the stabilizer connecting rods and nuts. Refer to Removal and Installation .
Partially thread the inner socket lock nut on the inner socket.
Install the outer socket. Refer to Removal and Installation - Outer socket .
Check wheel alignment. Refer to Inspection and Adjustment .
Adjust the neutral position of the steering angle sensor. Refer to Description .
