Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering angle sensor from the steering column. Refer to Removal and Installation .
  2. Remove the combination switch. Refer to Removal and Installation .
  3. Remove the instrument lower panel LH. Refer to Removal and Installation .
  4. Disconnect the tilt motor and telescopic motor harness connectors.

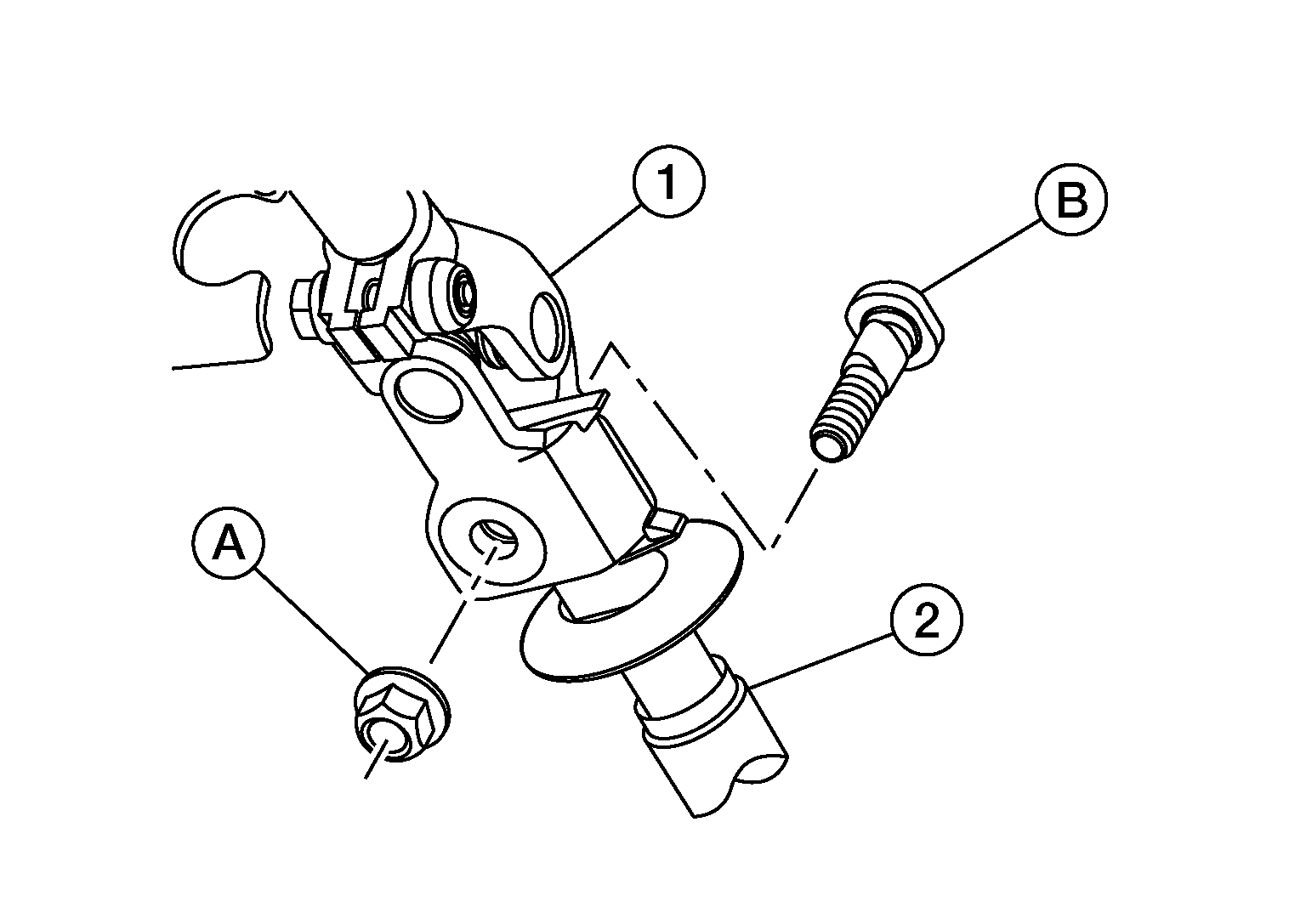

  5. Remove lock nut (A) and bolt (B), then separate steering column (1) from intermediate shaft (2).
    GNSAWGIA02Z-002Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove the steering column assembly nuts and bolt, then remove steering column assembly.
