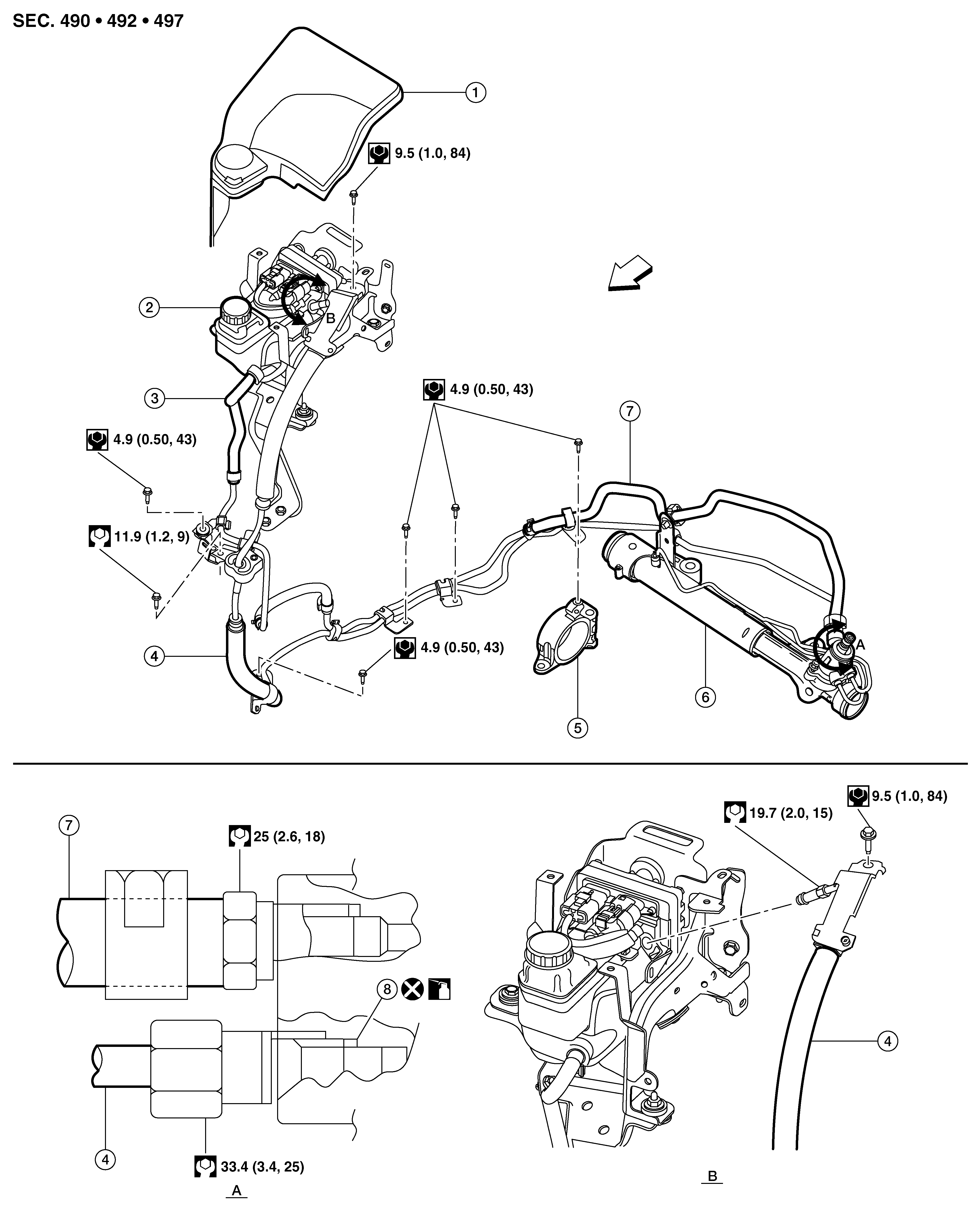

Exploded View: Fwd
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Cover
|
2.
|
Power steering oil pump
|
3.
|
Low pressure piping (upper)
|
|
4.
|
High pressure piping
|
5.
|
Engine mount
|
6.
|
Steering gear
|
|
7.
|
Low pressure piping (lower)
|
8.
|
O-ring
|
A.
|
Steering gear connection detail
|
|
B.
|
Power steering oil pump connection detail
|
|
Front
|
