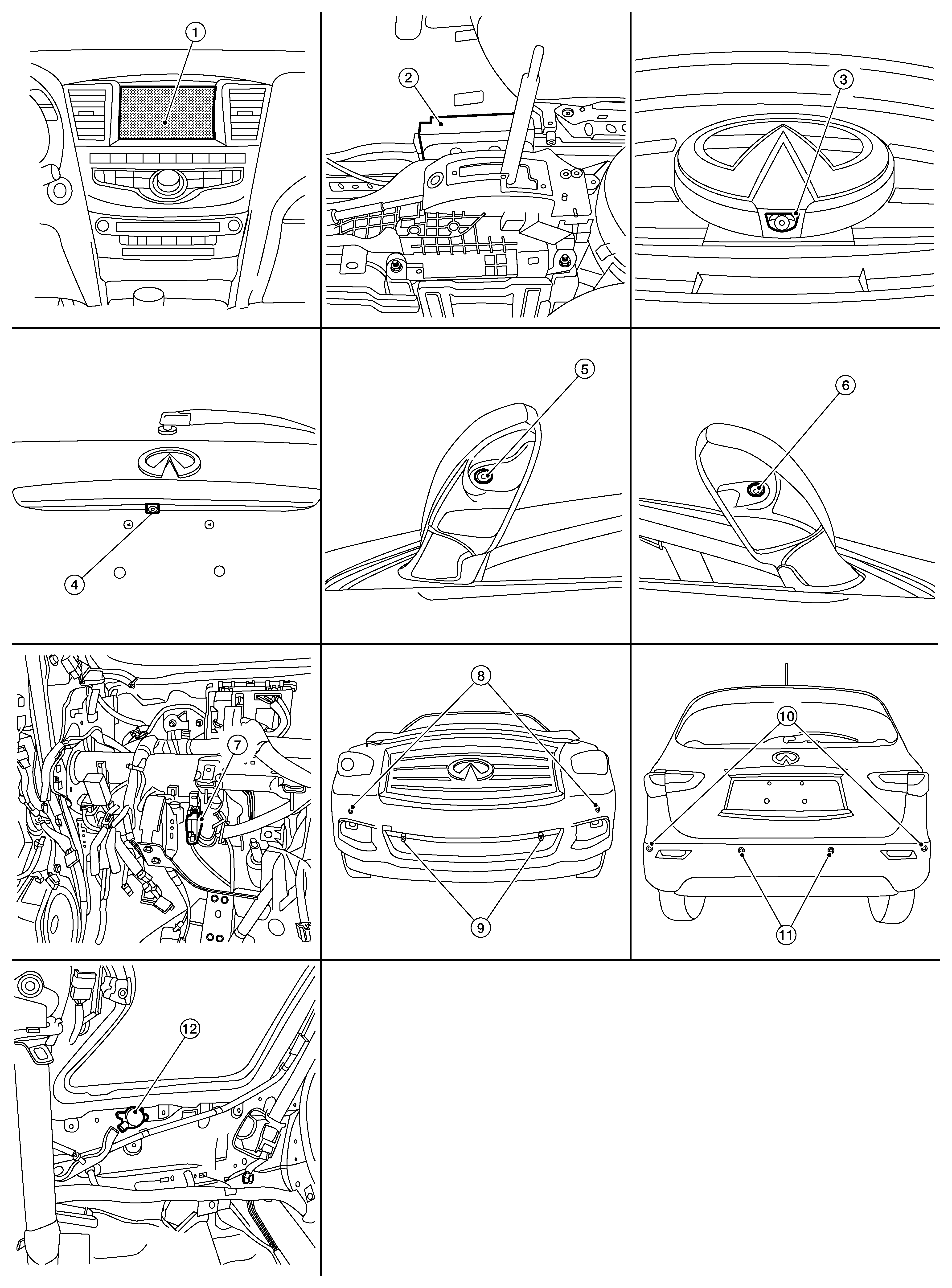

Component Parts Location

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
1.	Display control unit	Camera image signal received from around view monitor control unit is displayed. Transmits the camera switch signal to the around view monitor control unit. Refer to Display Control Unit .
2.	Around view monitor control unit	Refer to Around View Monitor Control Unit .
3.	Front camera	Refer to Front Camera .
4.	Rear camera	Refer to Rear Camera .
5.	Side camera LH	Refer to Side Camera .
6.	Side camera RH	Refer to Side Camera .
7.	Sonar control unit (view with instrument panel removed)	Refer to Sonar Control Unit .
8.	Front sonar sensors outer	Refer to Sonar Sensor .
9.	Front sonar sensors inner (with ICC)
10.	Rear sonar sensors outer
11.	Rear sonar sensors inner (with ICC)
12.	Sonar buzzer	Refer to Sonar Buzzer .
