Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument lower panel LH. Refer to Removal and Installation .
  2. Disconnect the harness connector from the sonar control unit.

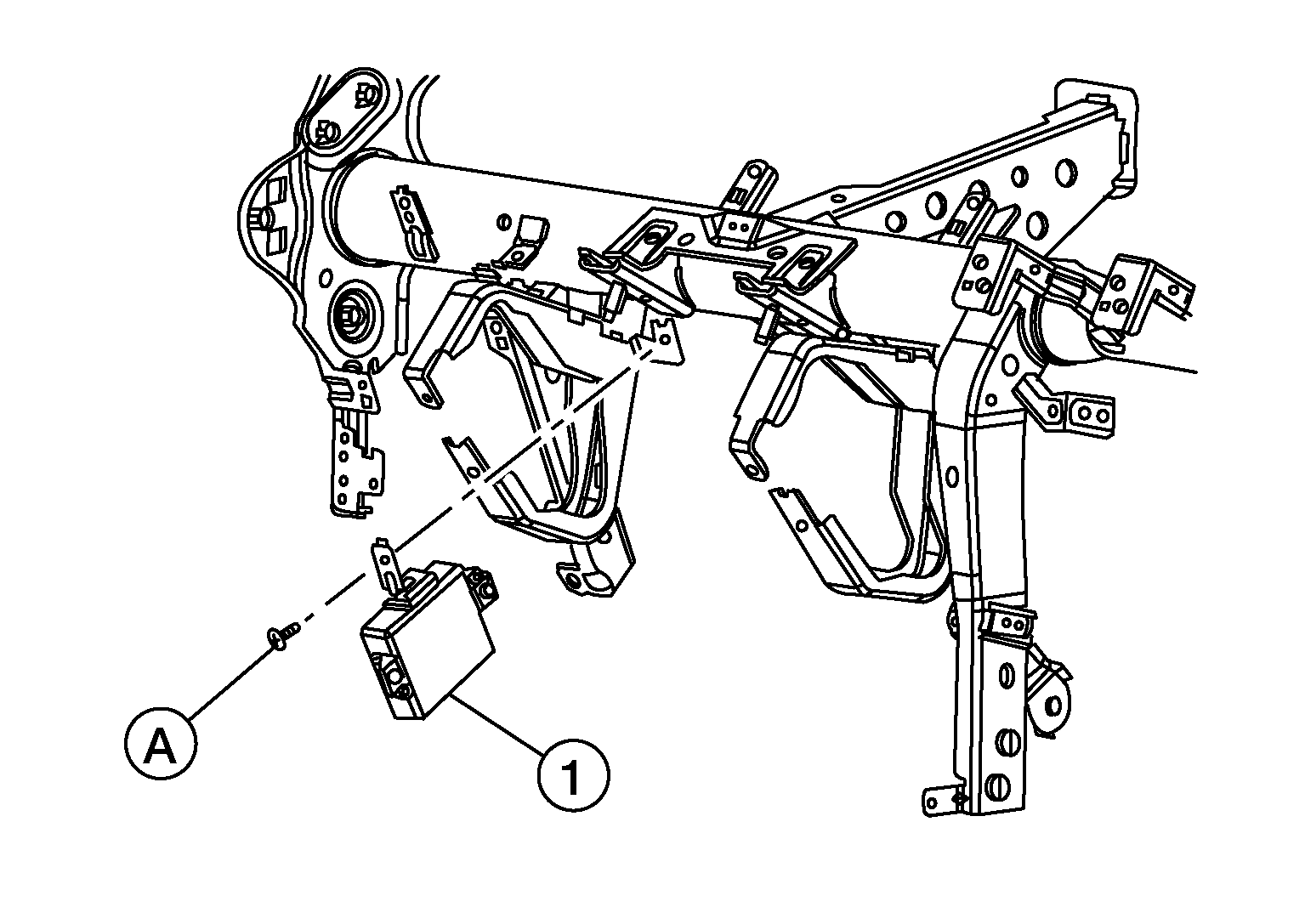

  3. Remove screw (A) and the sonar control unit (1).
    GNSALNIA1501Z-501Courtesy of NISSAN NORTH AMERICA, INC.
