Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front grille. Refer to Removal and Installation .

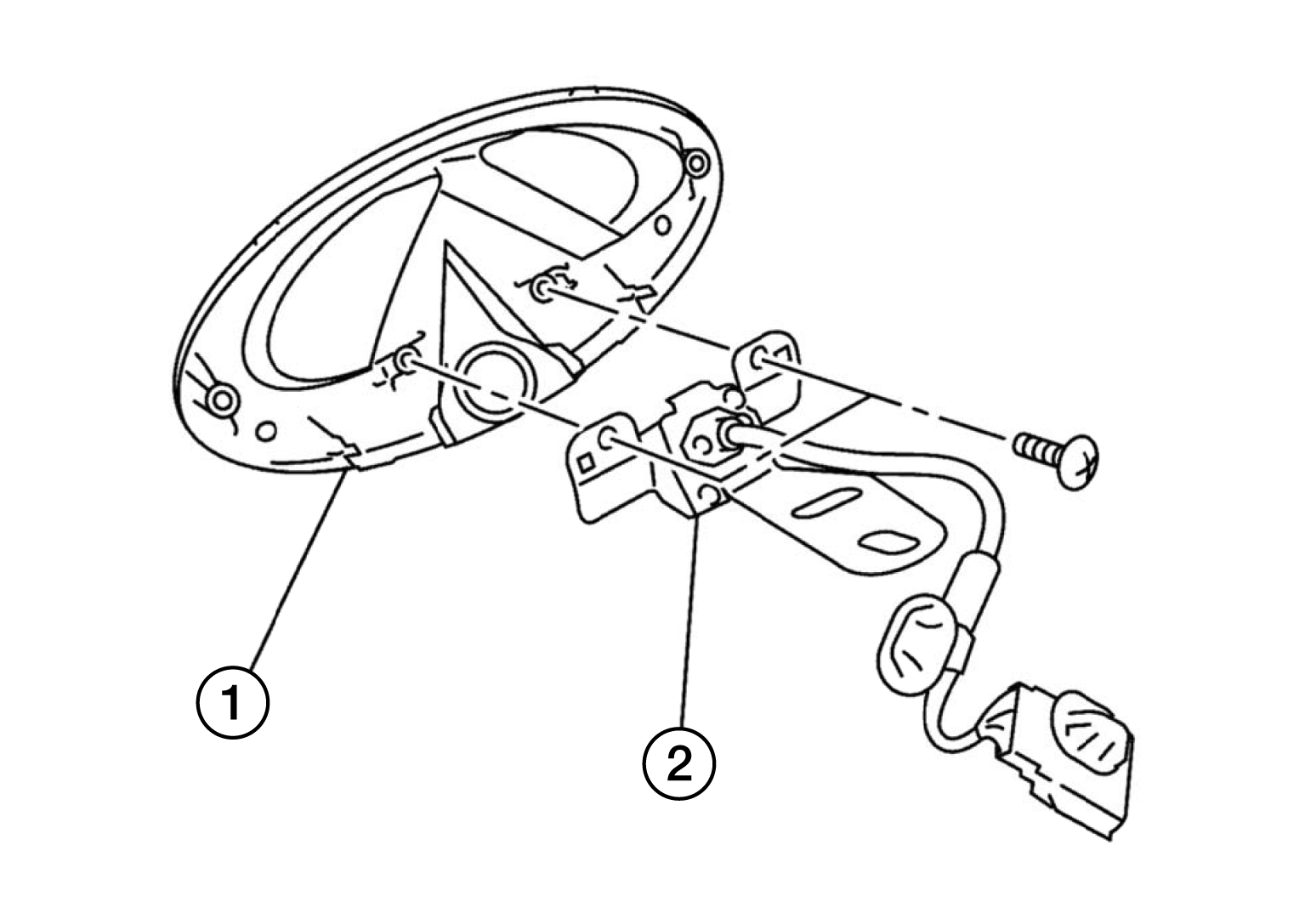

  2. Remove front camera screws and front camera (2) from front emblem (1).
    GNSAWNIA2585Z-585Courtesy of NISSAN NORTH AMERICA, INC.
