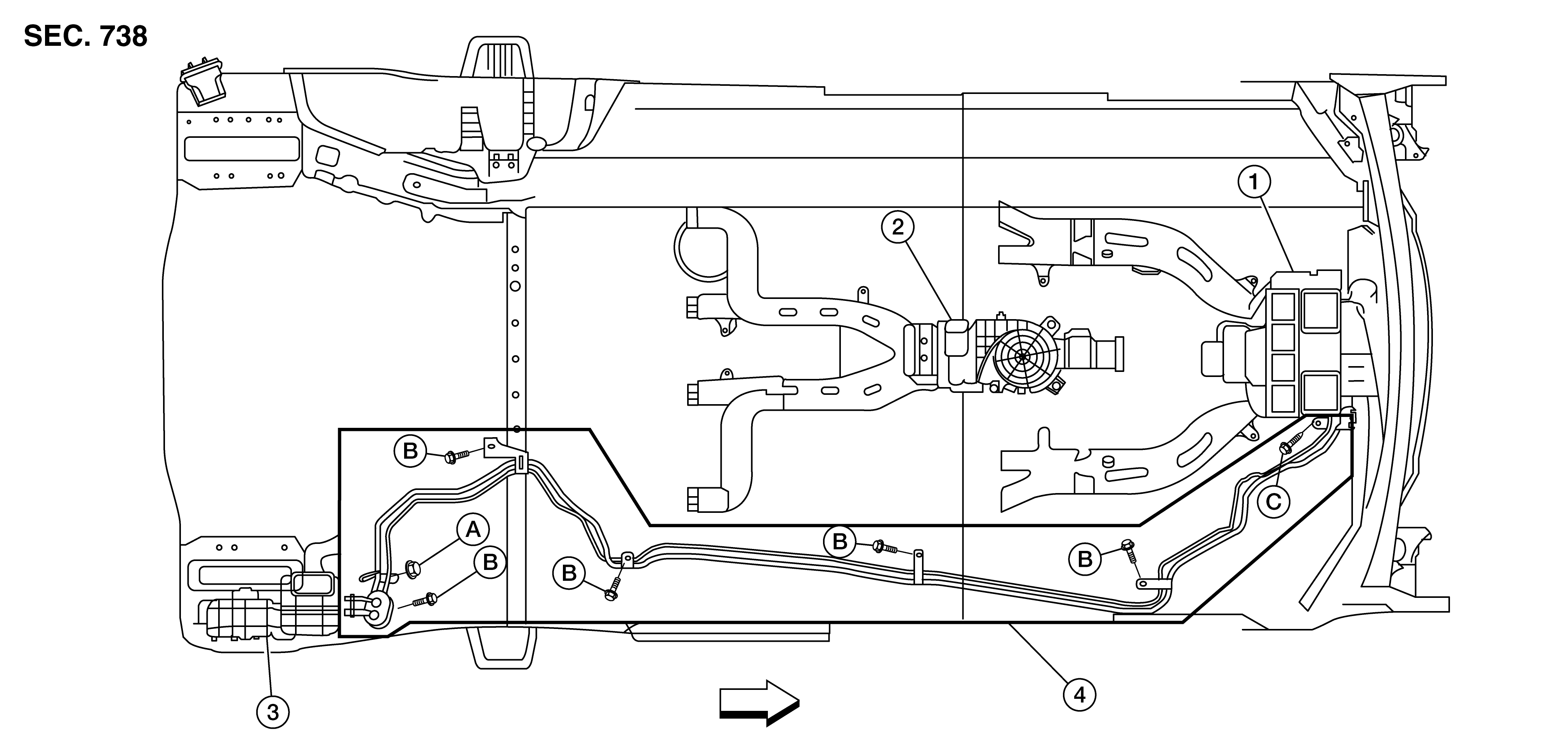

Exploded View
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
For Mexico
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Front heating and cooling unit assembly
|
2.
|
Rear blower motor 1 unit assembly
|
3.
|
Rear cooling unit assembly
|
|
4.
|
Rear underfloor high and low-pressure pipes
|
A.
|
Nut
|
B.
|
Bolt
|
|
C.
|
Screw, self-tapping
|
|
Front
|
