Axle And Suspension Parts: Inspection

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Check front and rear axle and suspension parts for excessive play, cracks, wear or other damage.

Courtesy of NISSAN NORTH AMERICA, INC.

Shake each wheel to check for excessive play.
Check wheel bearings for smooth operation.
Check axle and suspension nuts and bolts for looseness.

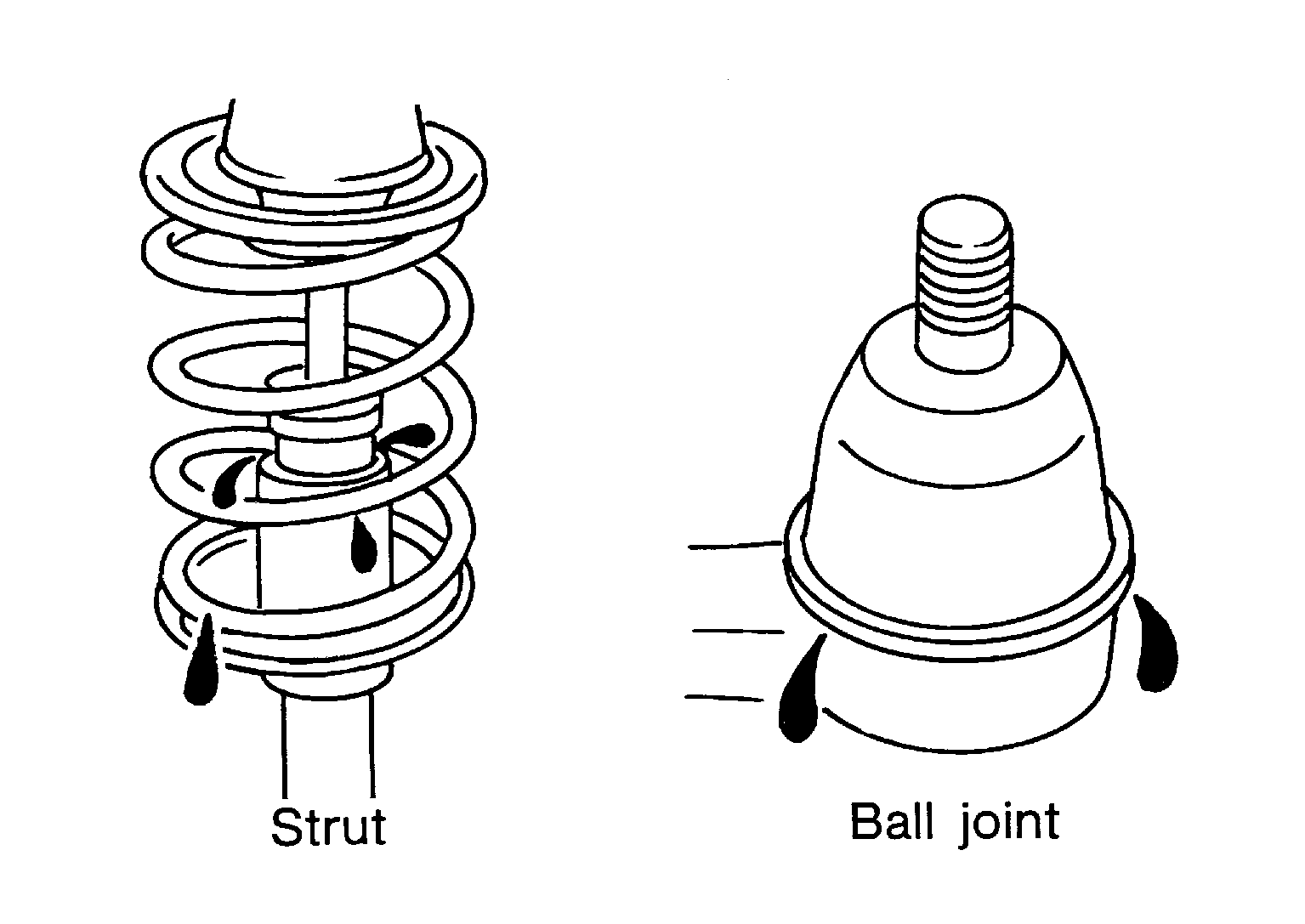

Check strut (shock absorber) for oil leakage or other damage.
Check suspension ball joint for grease leakage and ball joint dust cover for cracks or other damage.

Courtesy of NISSAN NORTH AMERICA, INC.
