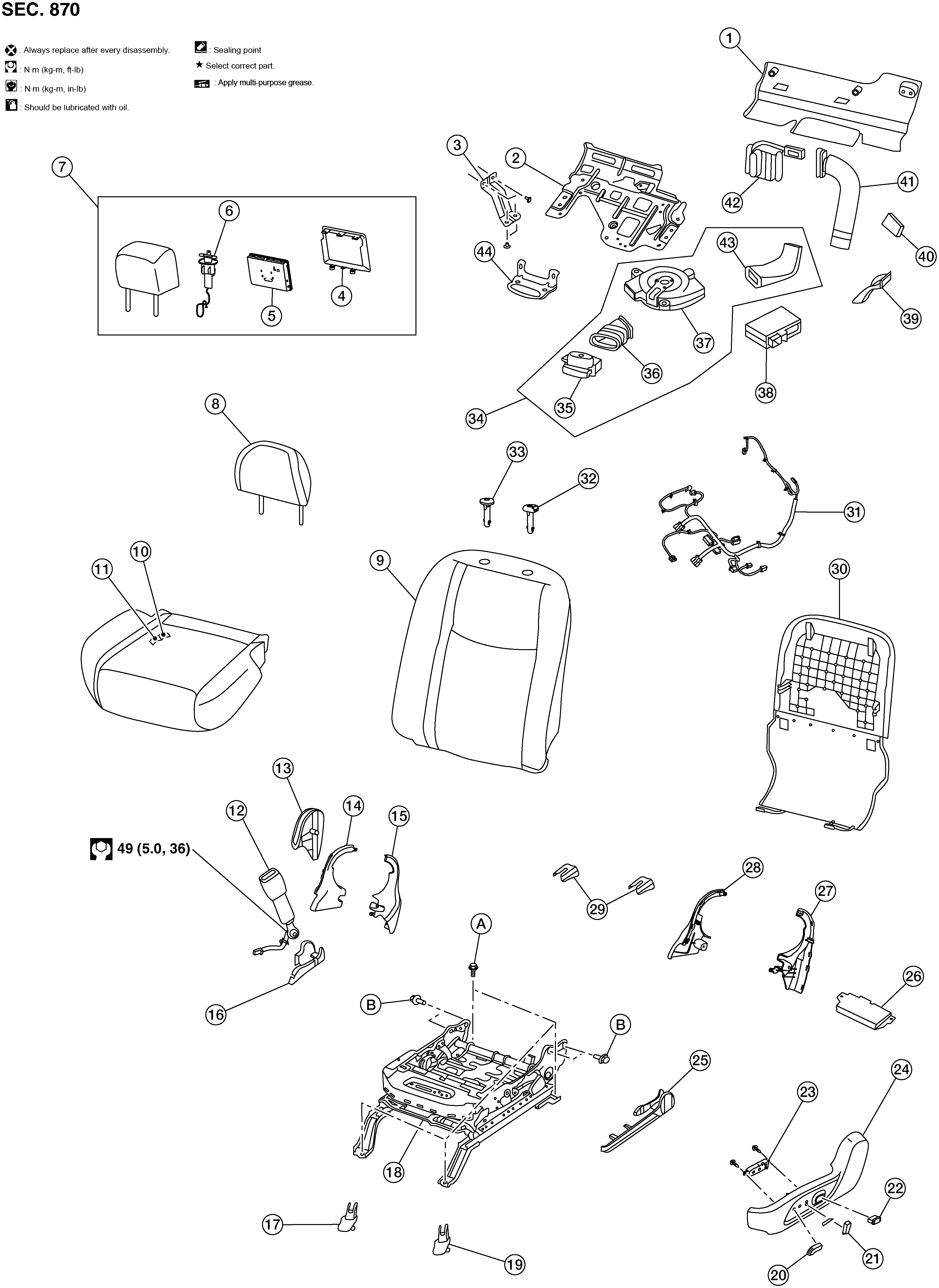

Exploded View
|
1. |
Lower rear cover |
2. |
Blower motor bracket |
3. |
Thermal electric device harness bracket |
|
4. |
Headrest display unit finisher |
5. |
Headrest display unit |
6. |
Harness protector |
|
7. |
Headrest assembly with display unit |
8. |
Headrest without display unit |
9. |
Seatback assembly |
|
10. |
Seat cushion trim |
11. |
Seat cushion pad |
12. |
Seat belt buckle |
|
13. |
Seat cushion outer finisher (RH) |
14. |
Seat cushion inner finisher (RH) (front) |
15. |
Seat cushion inner finisher (RH) (rear) |
|
16. |
Slide finisher outer (RH) |
17. |
Front slide finisher (RH) |
18. |
Seat frame assembly |
|
19. |
Front slide finisher (LH) |
20. |
Seat slide knob |
21. |
Seat recline knob |
|
22. |
Lumbar support switch |
23. |
Power seat switch |
24. |
Seat cushion outer finisher (LH) |
|
25. |
Slide finisher outer (LH) |
26. |
Driver seat control unit |
27. |
Seat cushion inner finisher (LH) (rear) |
|
28. |
Seat cushion inner finisher (LH) (front) |
29. |
Rear slide finisher |
30. |
Seatback board |
|
31. |
Seat harness |
32. |
Headrest holder (locked) |
33. |
Headrest holder (free) |
|
34. |
Climate controlled seat blower motor assembly |
35. |
Seat cushion thermal electric device |
36. |
Lower blower duct |
|
37. |
Blower motor with filter |
38. |
Climate controlled seat control unit |
39. |
Thermal electric device clip |
|
40. |
Upper blower duct clip |
41. |
Upper blower duct |
42. |
Seatback thermal electric device |
|
43. |
Angle duct |
44. |
Thermal electric device bracket |
A. |
Refer to Removal and Installation . |
|
B. |
Refer to Seatback . |
|
1. |
Headrest |
2. |
Headrest holder (locked) |
3. |
Headrest holder (free) |
|
4. |
Seat cushion trim |
5. |
Seat cushion pad |
6. |
Seat cushion outer finisher (RH) |
|
7. |
Seat belt buckle |
8. |
Seat cushion inner finisher (RH) (front) |
9. |
Seat cushion inner finisher (RH) (rear) |
|
10. |
Slide finisher outer (RH) |
11. |
Front seat heater |
12. |
Front slide finisher (RH) |
|
13. |
Seat frame assembly |
14. |
Front slide finisher (LH) |
15. |
Driver seat control unit (if equipped) |
|
16. |
Seat slide knob |
17. |
Seat recline knob |
18. |
Lumbar support switch |
|
19. |
Power seat switch |
20. |
Seat cushion outer finisher (LH) |
21. |
Slide finisher outer (LH) |
|
22. |
Seat cushion inner finisher (LH) (rear) |
23. |
Seat cushion inner finisher (LH) (front) |
24. |
Rear slide finisher |
|
25. |
Seatback assembly |
26. |
Seatback board |
27. |
Seat harness |
|
28. |
Lumbar lever (if equipped) |
A. |
Refer to Removal and Installation . |
B. |
Refer to Seatback . |
|

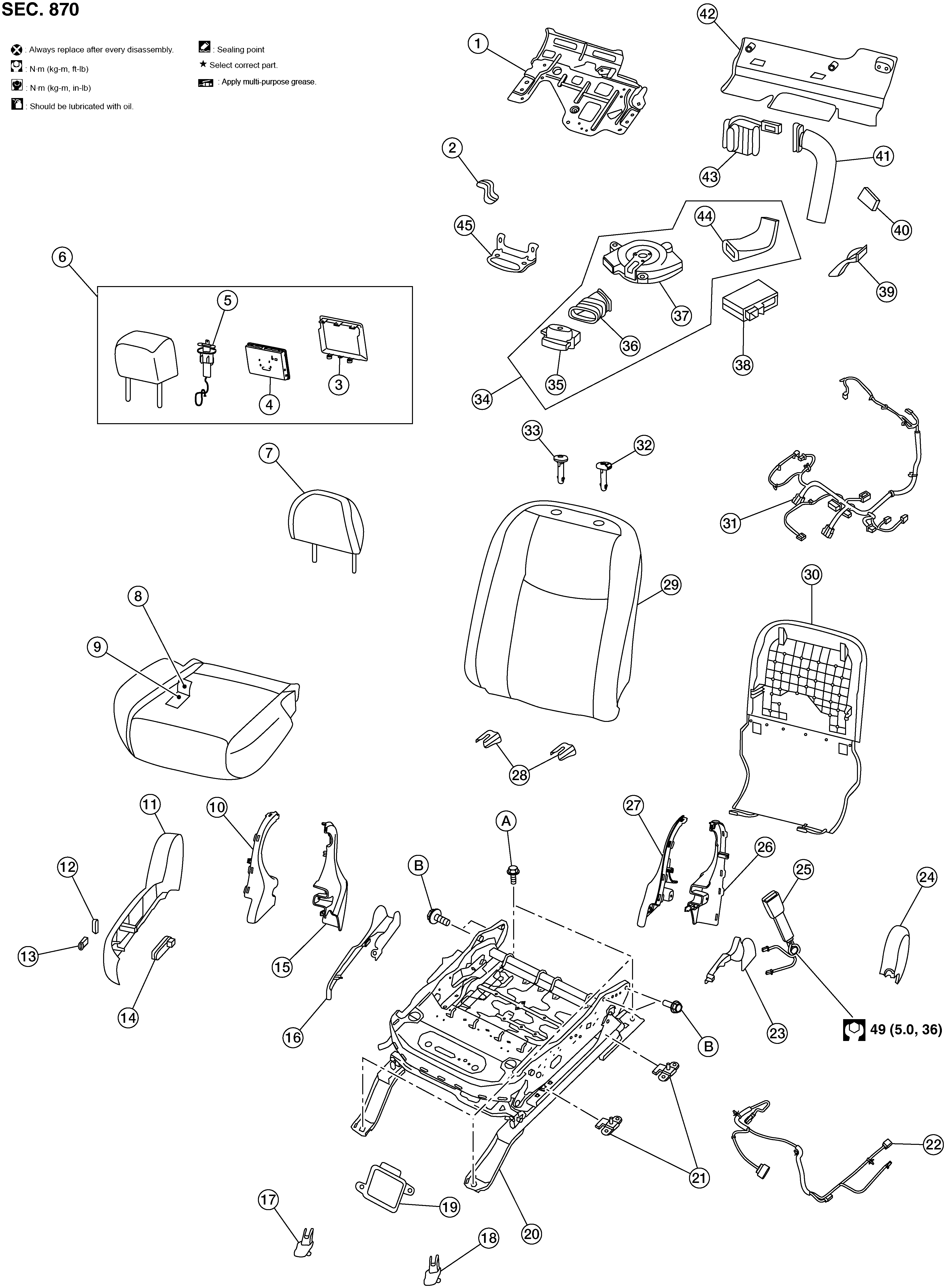

1. |
Thermal electric device bracket |
2. |
Thermal electric device harness bracket |
3. |
Headrest display unit finisher |
|
4. |
Headrest display unit |
5. |
Harness protector |
6. |
Headrest assembly with display unit |
|
7. |
Headrest without display unit |
8. |
Seat cushion trim |
9. |
Seat cushion pad |
|
10. |
Seat cushion inner finisher (RH) (front) |
11. |
Seat cushion outer finisher (RH) |
12. |
Seat recline knob |
|
13. |
Seat slide knob |
14. |
Power seat switch |
15. |
Seat cushion inner finisher (RH) (rear) |
|
16. |
Slide finisher outer (RH) |
17. |
Front slide finisher (RH) |
18. |
Front slide finisher (LH) |
|
19. |
Occupant Classification System control unit |
20. |
Seat frame assembly |
21. |
Occupant Classification System sensor |
|
22. |
Occupant Classification System harness |
23. |
Slide finisher outer (LH) |
24. |
Seat cushion outer finisher (LH) |
|
25. |
Seat belt buckle |
26. |
Seat cushion inner finisher (LH) (rear) |
27. |
Seat cushion inner finisher (LH) (front) |
|
28. |
Rear slide finisher |
29. |
Seatback assembly |
30. |
Seatback board |
|
31. |
Seat harness |
32. |
Headrest holder (locked) |
33. |
Headrest holder (free) |
|
34. |
Climate controlled seat blower motor assembly |
35. |
Seat cushion thermal electric device |
36. |
Lower blower duct |
|
37. |
Blower motor with filter |
38. |
Climate controlled seat control unit |
39. |
Thermal electric device clip |
|
40. |
Upper blower duct clip |
41. |
Upper blower duct |
42. |
Lower rear cover |
|
43. |
Seatback thermal electric device |
44. |
Angle duct |
45. |
Blower motor bracket |
|
A. |
Refer to Removal and Installation . |
B. |
Refer to Seatback . |
|
1. |
Headrest |
2. |
Seat cushion trim |
3. |
Seat cushion pad |
|
4. |
Seat cushion outer finisher (RH) |
5. |
Seat cushion inner finisher (RH) (front) |
6. |
Seat recline knob |
|
7. |
Seat slide knob |
8. |
Power seat switch |
9. |
Seat cushion inner finisher (RH) (rear) |
|
10. |
Slide finisher outer (RH) |
11. |
Front seat heater |
12. |
Front slide finisher (RH) |
|
13. |
Front slide finisher (LH) |
14. |
Occupant Classification System control unit |
15. |
Seat frame assembly |
|
16. |
Occupant Classification System harness |
17. |
Occupant Classification System sensor |
18. |
Slide finisher outer (LH) |
|
19. |
Seat cushion outer finisher (LH) |
20. |
Seat belt buckle |
21. |
Seat cushion inner finisher (LH) (rear) |
|
22. |
Seat cushion inner finisher (LH) (front) |
23. |
Seat harness |
24. |
Rear slide finisher |
|
25. |
Seatback board |
26. |
Seatback assembly |
27. |
Headrest holder (locked) |
|
28. |
Headrest holder (free) |
A. |
B. |
Seatback . |
