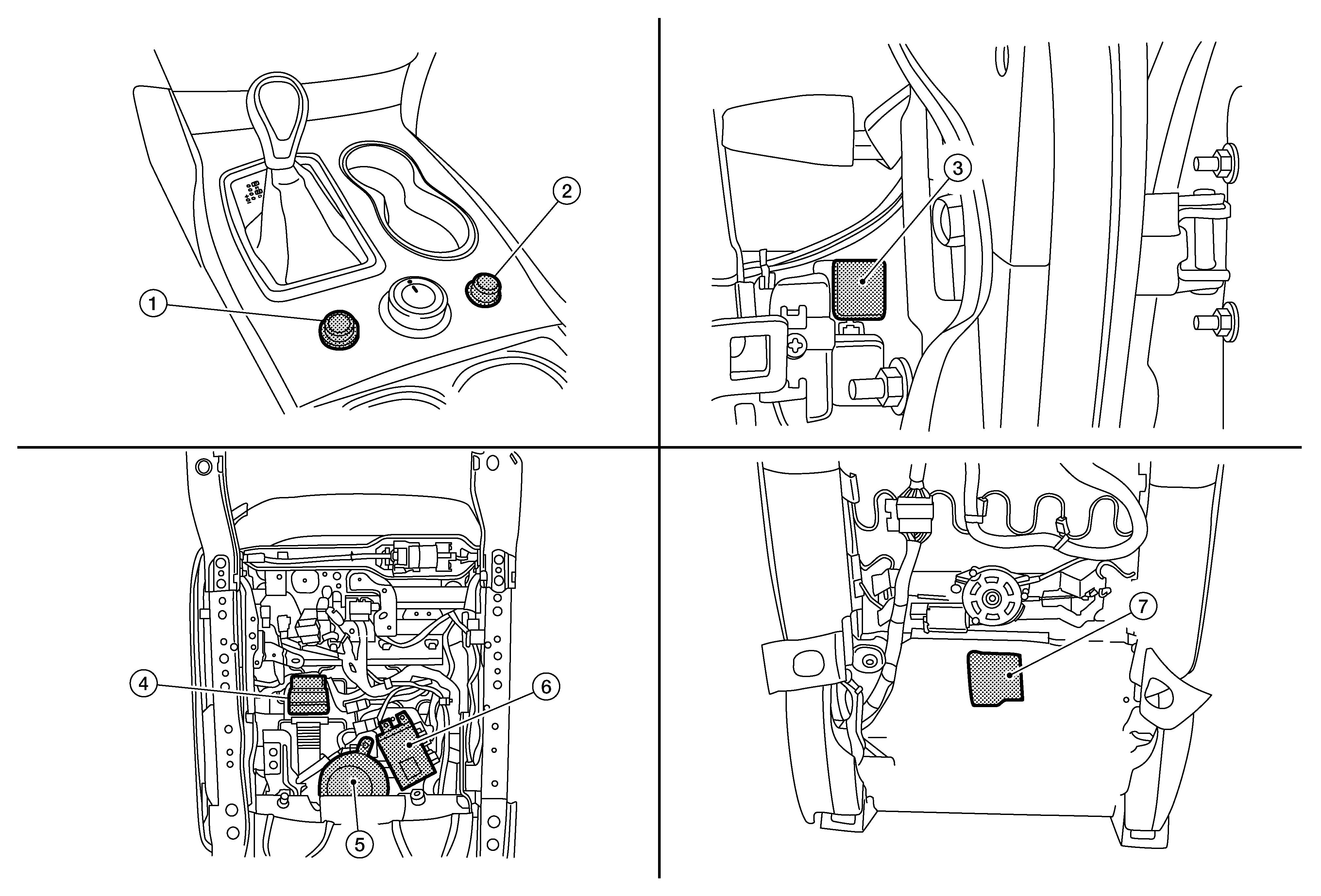

Component Parts Location
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Climate controlled seat switch (driver seat) |
2. |
Climate controlled seat switch (passenger seat) |
3. |
Climate controlled seat relay (view with instrument panel RH removed) |
|
4. |
Seat cushion thermal electric device |
5. |
Climate controlled seat blower motor |
6. |
Climate controlled seat control unit |
|
7. |
Seat back thermal electric device |
