Blower Motor: Removal

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to Removal and Installation .
  2. Release the J-hook retainers (A) from the seat frame assembly.
    GNSALJIA0791Z-791Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the four screws and the seat cushion lower rear cover (1) from the seat frame assembly.
  4. Disconnect the harness connector (A) from the blower motor.

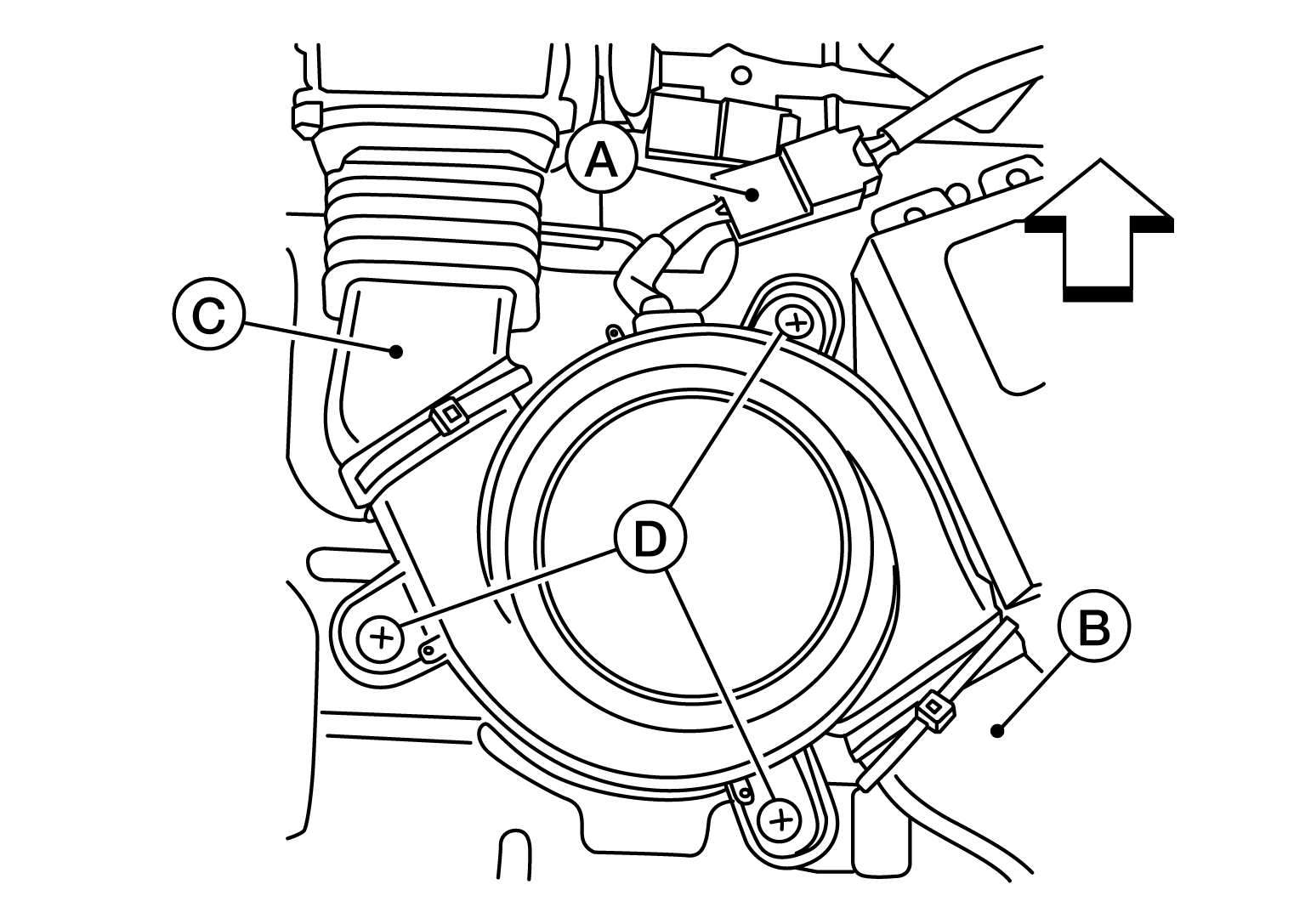

    GNSALJIA0809Z-809Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front

  5. Remove the tie straps and discard, then remove the angle duct (B) and lower blower duct (C) from the blower motor.
  6. Remove the screws (D) and the blower motor.
