Method Of Starting

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch to the ON position.
  2. Turn ON headrest display unit.

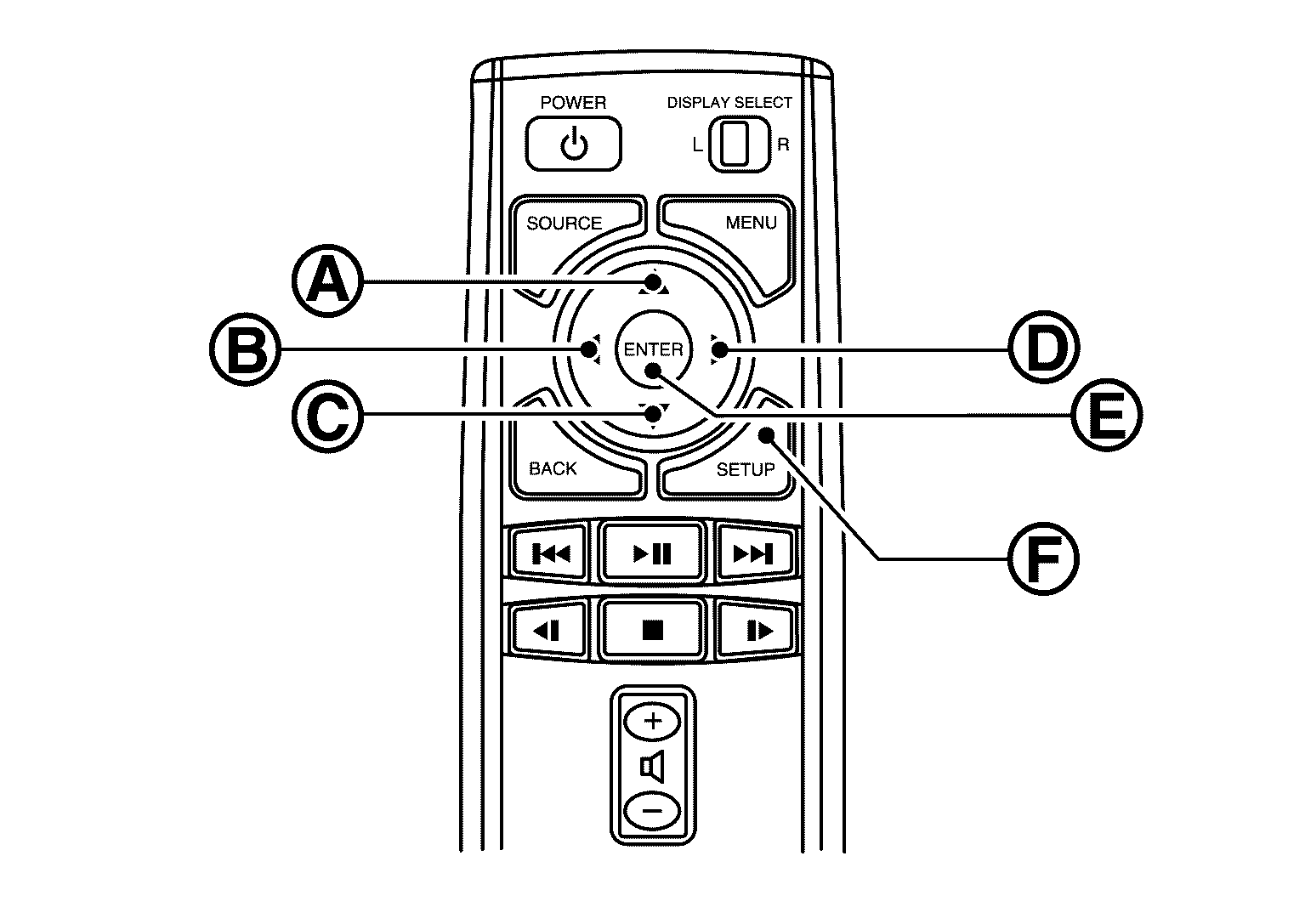

  3. Press "SETUP" switch SYMBOL of remote controller.
    GNSJSNIA6495GB-495Courtesy of NISSAN NORTH AMERICA, INC.
  4. With the "ENTER" switch SYMBOL , select "Information" displayed on the headrest display unit screen.
  5. Press switches in the order of SYMBOL , SYMBOL , SYMBOL , SYMBOL , SYMBOL , SYMBOL , SYMBOL , SYMBOL , SYMBOL to start Diag/Version Infor.
