Component Parts Location

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

Courtesy of NISSAN NORTH AMERICA, INC.

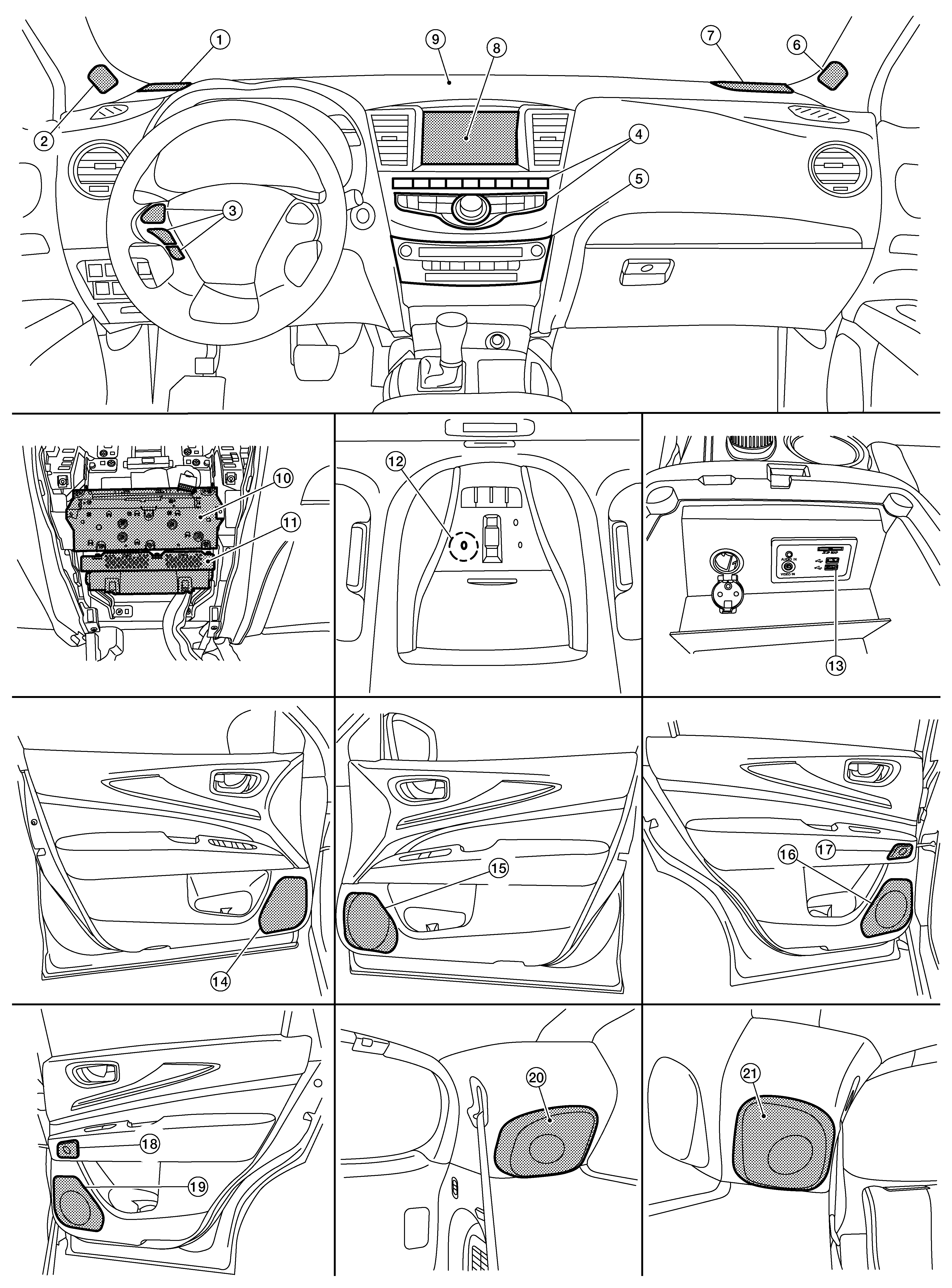

No.	Component	Function
1.	Instrument panel tweeter LH	Refer to Speaker .
2.	Front tweeter LH (with Bose audio and Bose Centerpoint Audio Systems)	Refer to Speaker .
3.	Steering switches	Refer to Steering Switch .
4.	Multifunction switch	Refer to Multifunction Switch .
5.	Preset switch	Refer to Preset Switch .
6.	Front tweeter RH (with Bose audio and Bose Centerpoint Audio Systems)	Refer to Speaker .
7.	Instrument panel tweeter RH	Refer to Speaker .
8.	Display control unit	Refer to Display Control Unit .
9.	Center speaker (with Bose audio and Bose Centerpoint Audio Systems)	Refer to Speaker .
10.	AV control unit	Refer to AV Control Unit .
11.	NAVI control unit (with NAVI)	Refer to NAVI Control Unit .
12.	Microphone	Refer to Microphone .
13.	Front auxiliary input jacks	Refer to Front Auxiliary Input Jacks .
14.	Front door speaker LH	Refer to Speaker .
15.	Front door speaker RH
16.	Rear door speaker LH
17.	Rear door tweeter LH (with Bose Centerpoint Audio System)
18.	Rear door tweeter RH (with Bose Centerpoint Audio System)
19.	Rear door speaker RH
20.	Rear side speaker LH (with Bose audio and Bose Centerpoint Audio Systems)
21.	Rear side speaker RH (with Bose audio and Bose Centerpoint Audio Systems)

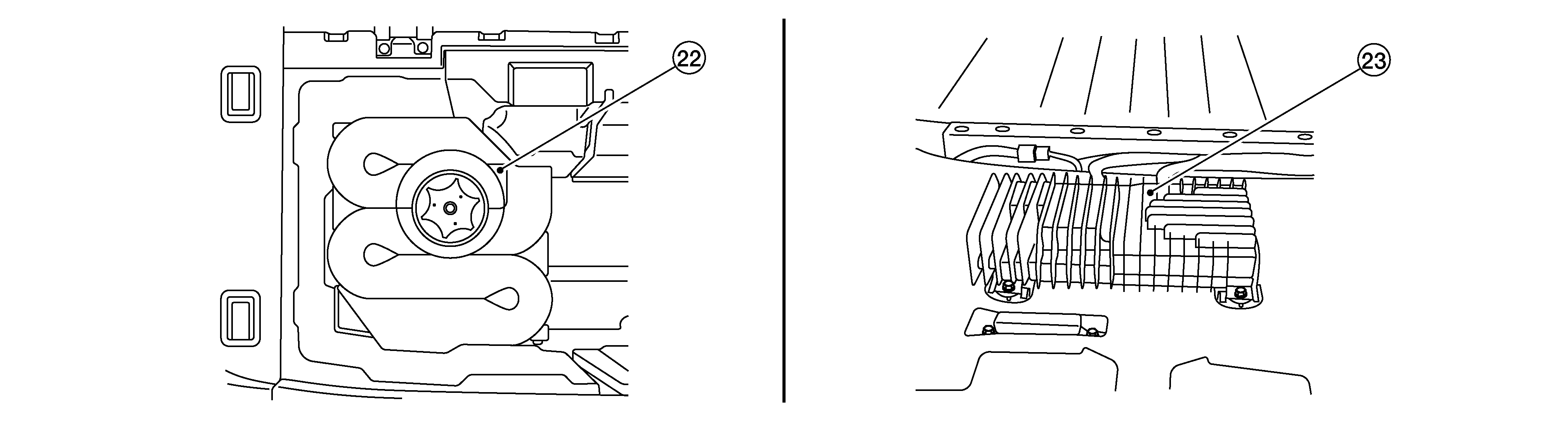

22.	Subwoofer (with Bose audio and Bose Centerpoint Audio Systems)
23.	Bose^® speaker amp. (with Bose audio and Bose Centerpoint Audio Systems)	Refer to Bose Speaker Amp. .
