Removal and Installation (For Mexico): Installation

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install new O-rings to water pump (1).
    G08682168Courtesy of NISSAN NORTH AMERICA, INC.
    • Apply engine oil to O-rings (2, 3).
    • Locate O-ring (2) with white paint mark (A) to engine front side.
    CAUTION: Do not reuse O-rings.
  2. Hold timing chain to the side and install the water pump.
    G04160021Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Install water pump without causing sprocket to contact timing chain. It may be necessary to adjust the timing chain until it loosens enough to install the water pump.
    • Install water pump straight in while preventing vane from contacting the engine block and timing chain case.
    • Do not damage the O-rings when installing the water pump.
    • Check that timing chain and water pump sprocket are engaged.
    • Tighten water pump bolts alternately and evenly to specification.
  3. Remove dust and foreign material completely from installation area of timing chain tensioner and rear timing chain case.

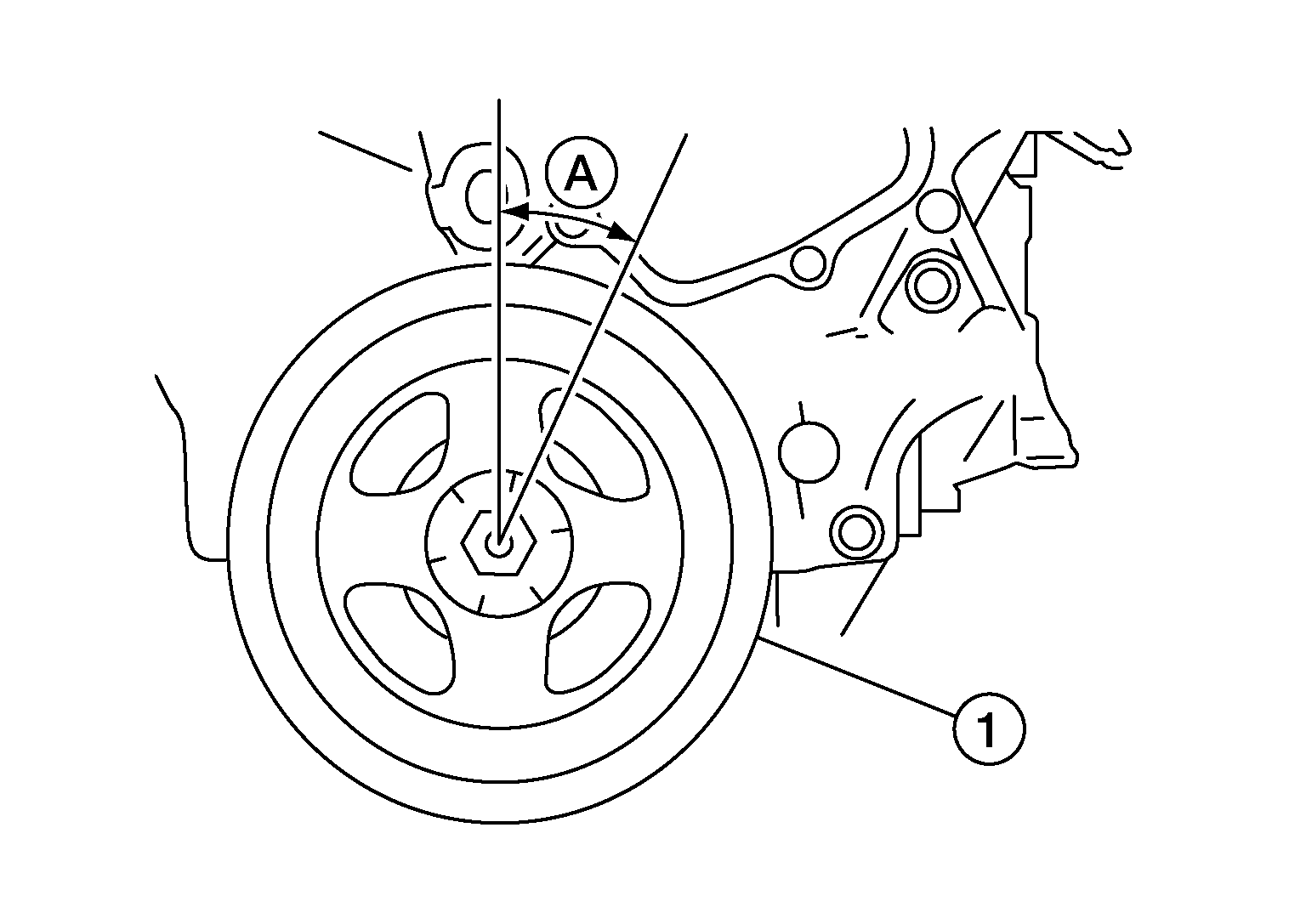

  4. Turn the crankshaft pulley (1) clockwise to the approximate specification (A) to loosen timing chain.
    GNSAWBIA3174Z-174Courtesy of NISSAN NORTH AMERICA, INC.

    (A)

    : 20 deg.
  5. Apply engine oil to the engine oil feed hole and timing chain tensioner and install the timing chain tensioner.

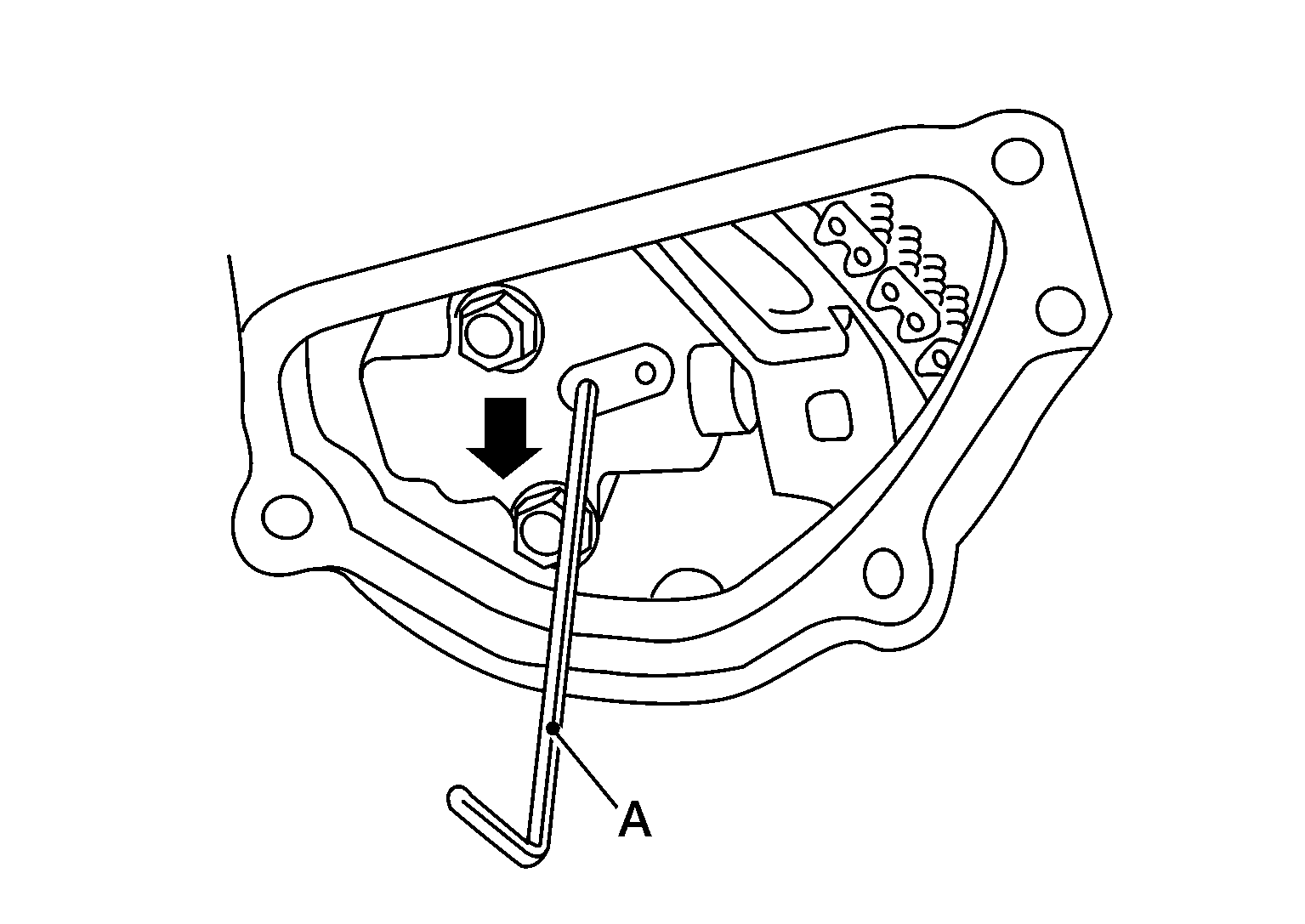

  6. Remove suitable tool (A).
    GNSAWBIA0905Z-905Courtesy of NISSAN NORTH AMERICA, INC.
  7. Install valve timing control cover (bank 1) and water pump cover.
    1. Before installing, remove all traces of liquid gasket from mating surface of water pump cover and IVT cover using a scraper.

      Also remove traces of liquid gasket from the mating surface of the front cover.

    2. Apply a continuous bead of liquid gasket to mating surface of IVT cover and water pump cover. Use Genuine RTV Silicone Sealant or equivalent. Refer to Recommended Chemical Products and Sealants .
      CAUTION:
      • Installation should be done within 5 minutes after applying liquid gasket.
      • Do not fill the engine with engine oil for at least 30 minutes after the components are installed to allow the sealant to cure.
  8. Installation of remaining components is in the reverse order of removal.
    • After installation, refill engine coolant and check for leaks. Refer to Changing Engine Coolant  and System Inspection .
      CAUTION: Do not spill engine coolant in engine compartment. Use a shop cloth to absorb engine coolant.
    • After starting engine, let idle for three minutes, then rev engine up to 3, 000 rpm under no load to purge air from the high-pressure chamber of the chain tensioner. The engine may produce a rattling noise. This indicates that air still remains in the chamber and is not a matter of concern.
