Exploded View

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

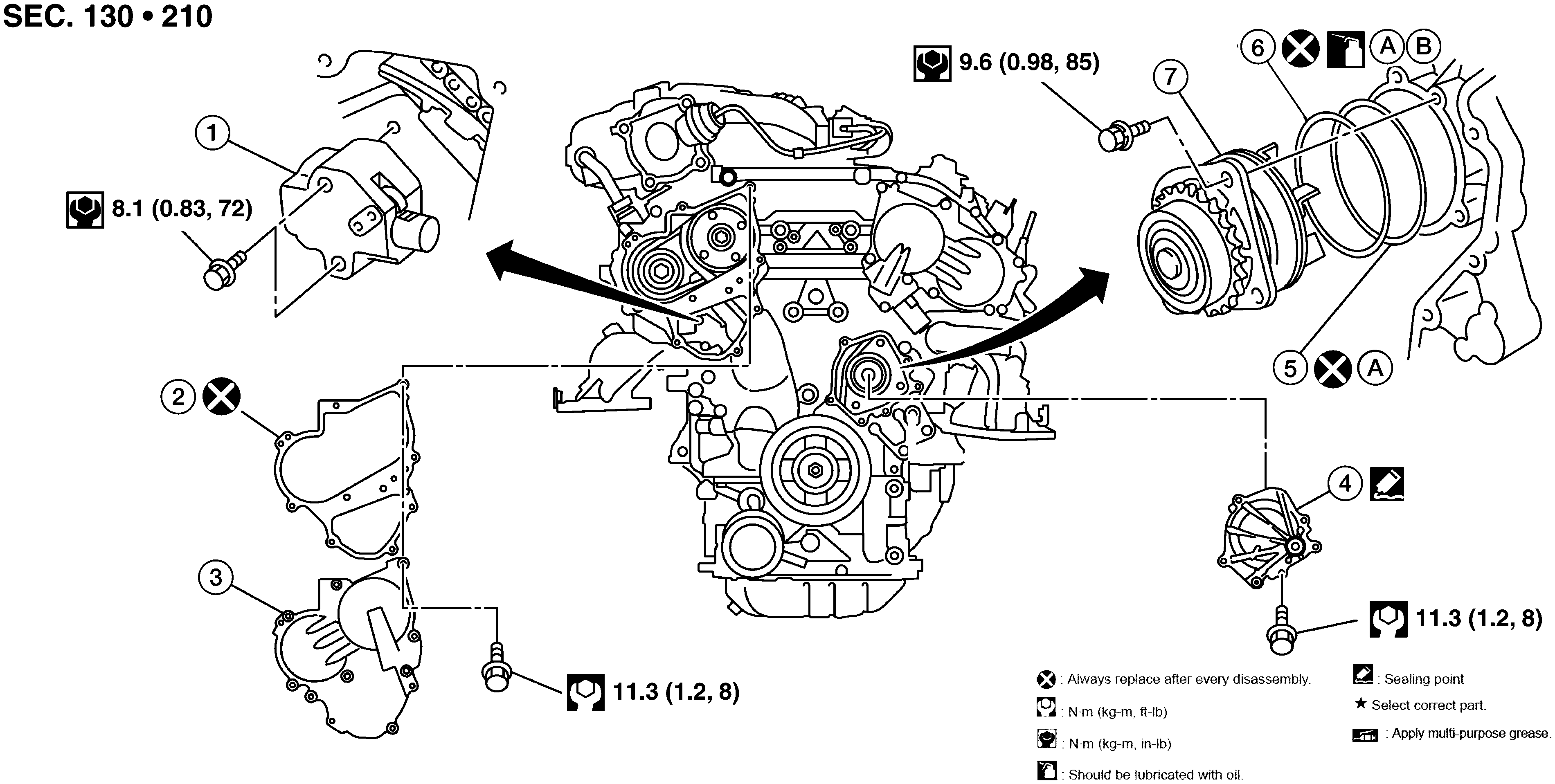

Fig 1: Water Pump Components With Torque Specification Mexico

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Timing chain tensioner (primary)	2.	Valve timing control cover gasket (bank 1)	3.	Valve timing control cover (bank 1)
4.	Water pump cover	5.	O-ring	6.	O-ring
7.	Water pump	A.	Apply engine oil	B.	Identify with white mark

Fig 1: Water Pump Components With Torque Specification USA and Canada

Courtesy of NISSAN NORTH AMERICA, INC.

Rear timing chain case

Water pump

O-ring
