Exploded View

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

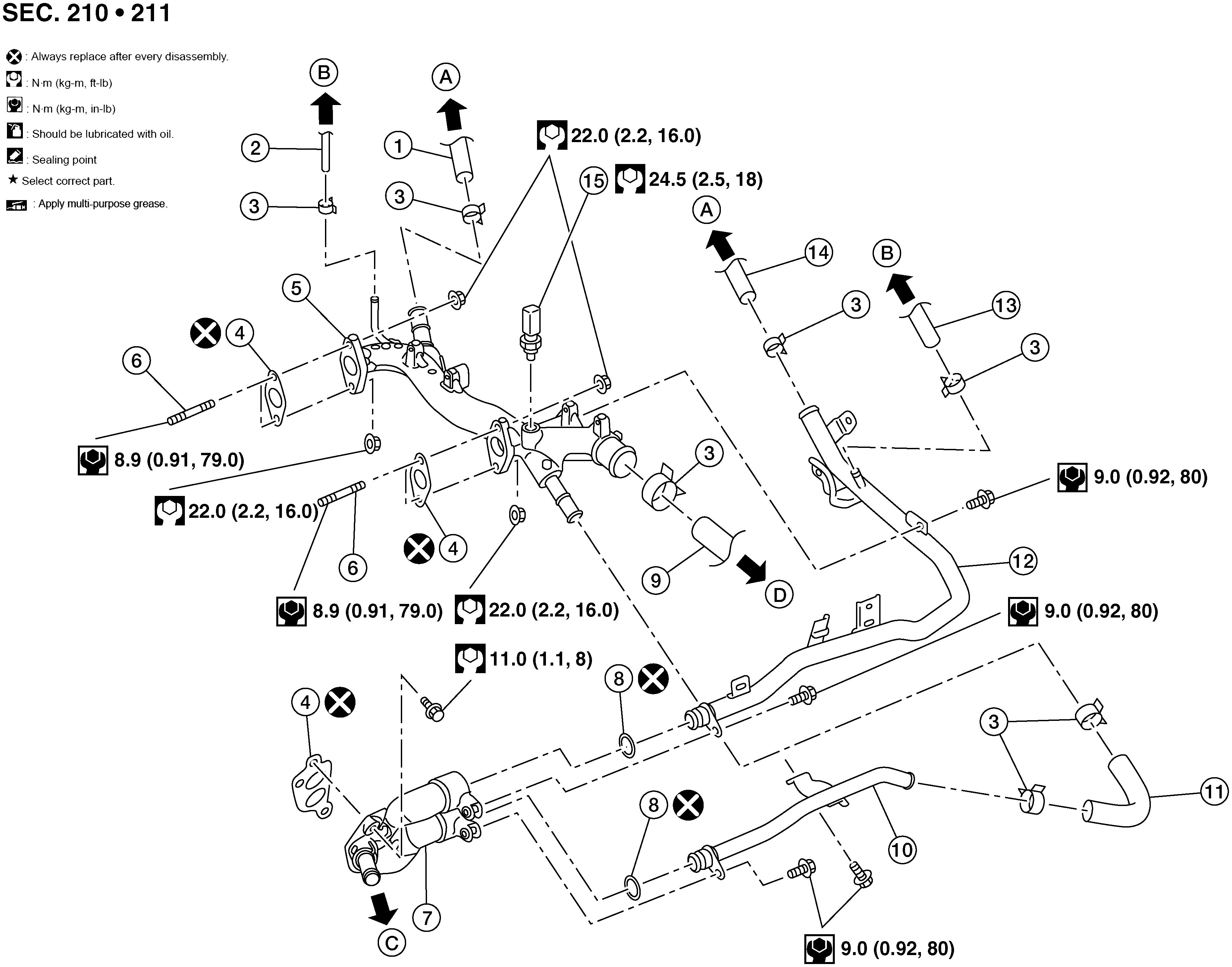

Fig 1: Water Outlet And Water Piping Components With Torque Specification (For Mexico)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Heater hose	2.	Water hose	3.	Clamp
4.	Gasket	5.	Water outlet	6.	Stud
7.	Water connector	8.	O-ring	9.	Radiator hose (upper)
10.	Water bypass pipe	11.	Water hose	12.	Heater pipe
13.	Water hose	14.	Heater hose	15.	Coolant temperature sensor
A.	To heater core. Refer to Exploded View .	B.	To electric throttle control actuator. Refer to Exploded View .	C.	To oil cooler. Refer to Exploded View .
D.	To radiator. Refer to Exploded View .

Fig 2: Water Outlet And Water Piping Components With Torque Specification (For USA And Canada)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Heater hose	2.	Water hose	3.	Clamp
4.	Gasket	5.	Water outlet	6.	Stud
7.	Water connector	8.	Engine oil dipstick guide	9.	O-ring
10.	Radiator hose (upper)	11.	Water bypass pipe	12.	Water hose
13.	Heater pipe	14.	Water hose	15.	Heater hose
16.	Coolant temperature sensor	A.	To heater core. Refer to Exploded View .	B.	To electric throttle control actuator. Refer to Exploded View .
C.	To oil cooler. Refer to Exploded View .	D.	To radiator. Refer to Exploded View .
