Exploded View

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

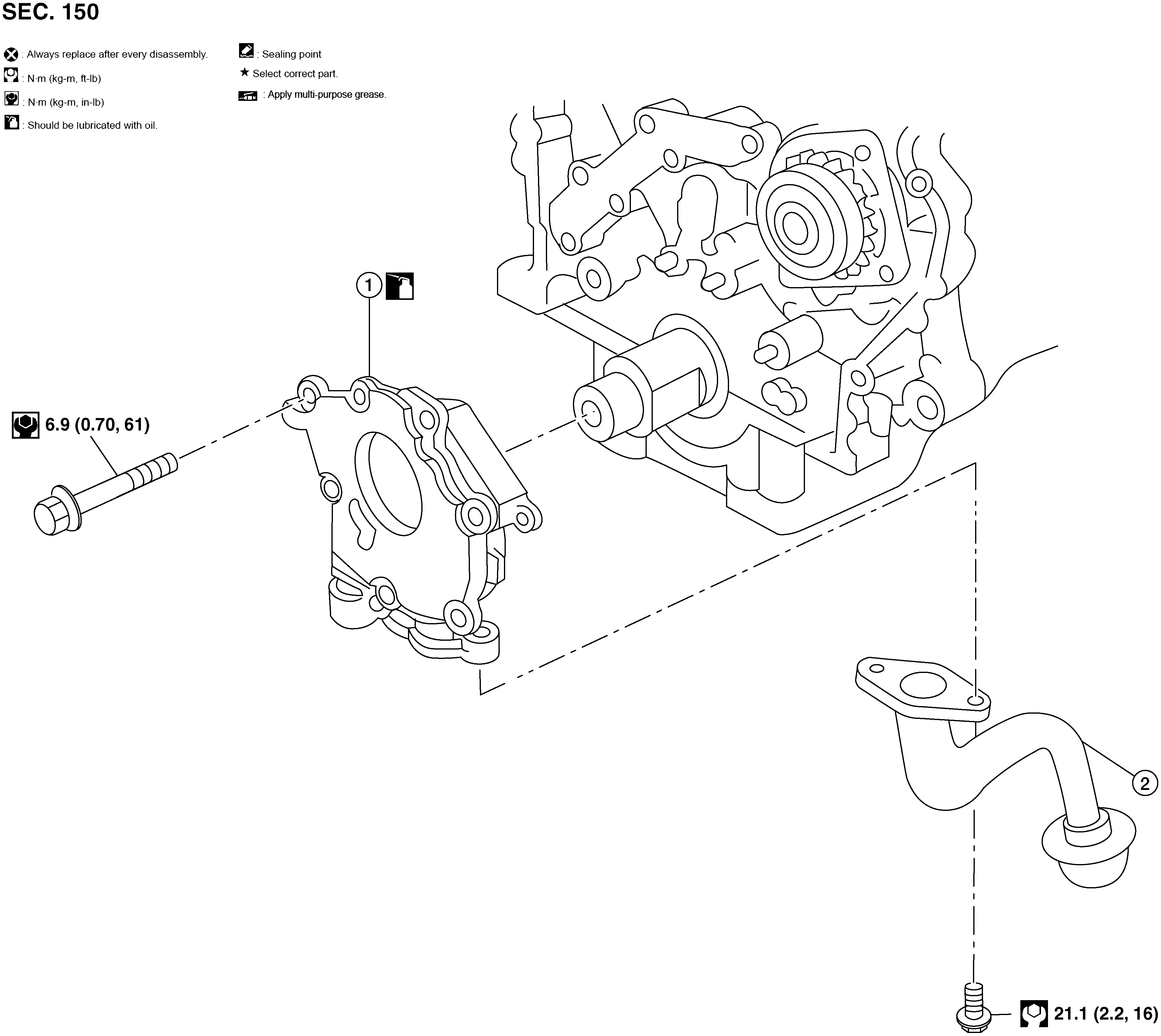

Fig 1: Oil Pump Components With Torque Specification Mexico
GNSAWBIA0044Z-044Courtesy of NISSAN NORTH AMERICA, INC.

1.

Oil pump

2.

Oil strainer
