Section 37 (Wheel And Tire System)
>>
Removal And Installation
>>
Wheel And Tire
>>
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

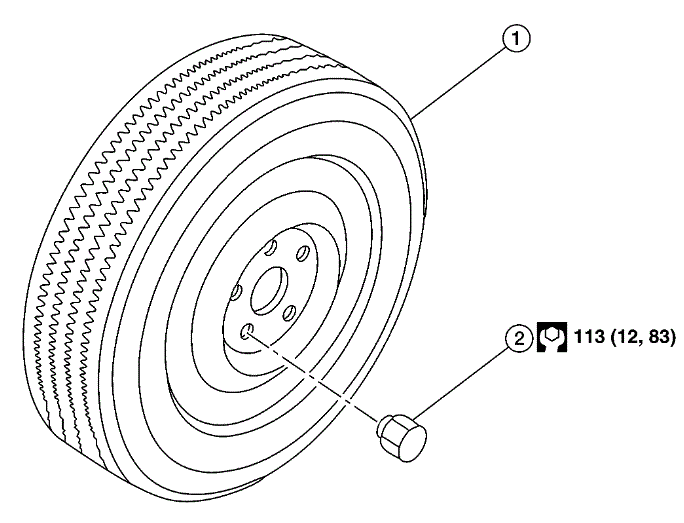

Fig 1: Wheel And Tire With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Wheel and tire
2.
Wheel nut
