Exhaust System Component

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

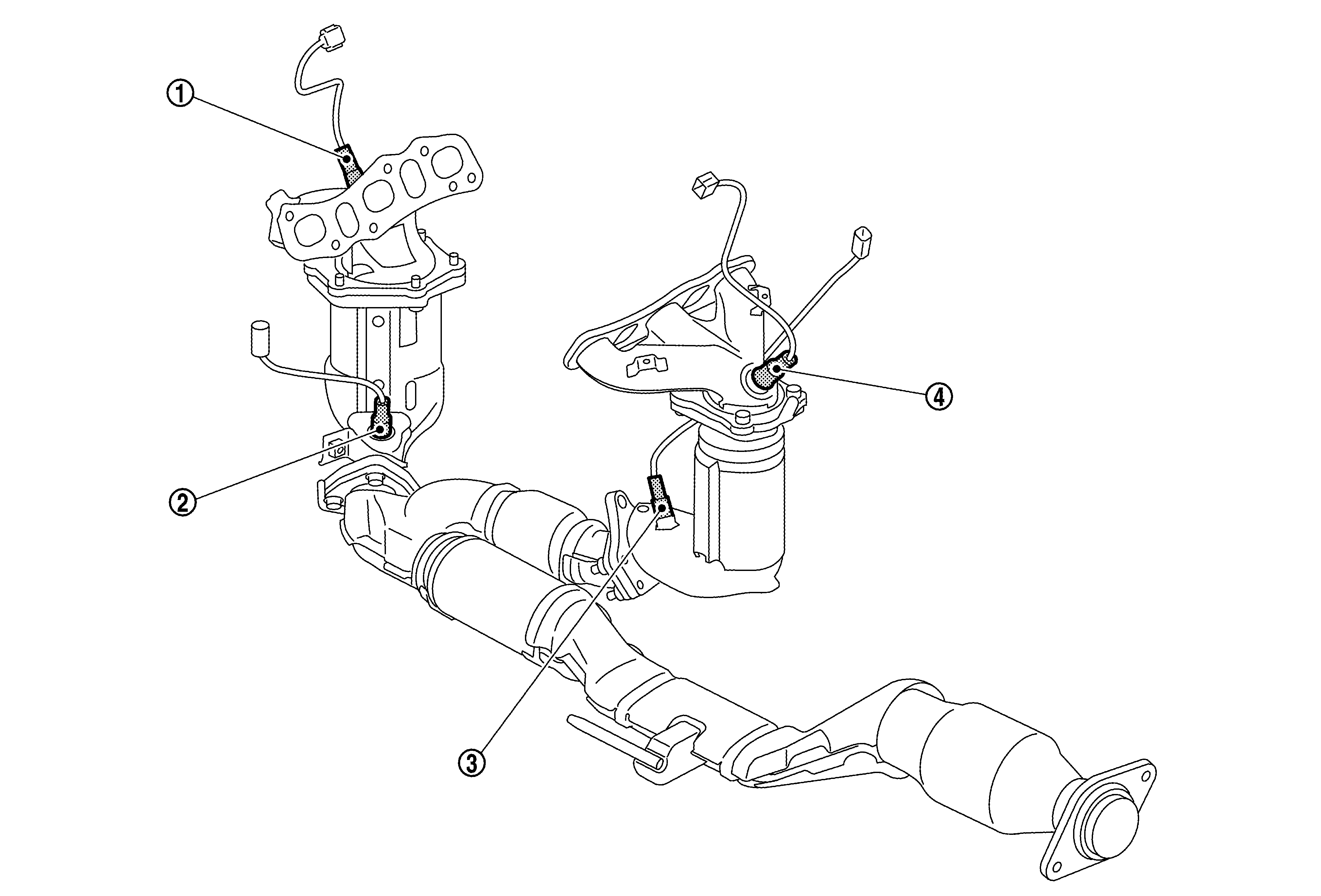

GNSJPBIA4687Z-687Courtesy of NISSAN NORTH AMERICA, INC.

No.

Component

Function

SYMBOL

Air fuel ratio (A/F) sensor 1 (bank 2)

Air Fuel Ratio (A/F) Sensor 1

SYMBOL

Heated oxygen sensor 2 (bank 2)

Heated Oxygen Sensor 2

SYMBOL

Heated oxygen sensor 2 (bank 1)

Heated Oxygen Sensor 2

SYMBOL

Air fuel ratio (A/F) sensor 1 (bank 1)

Air Fuel Ratio (A/F) Sensor 1
