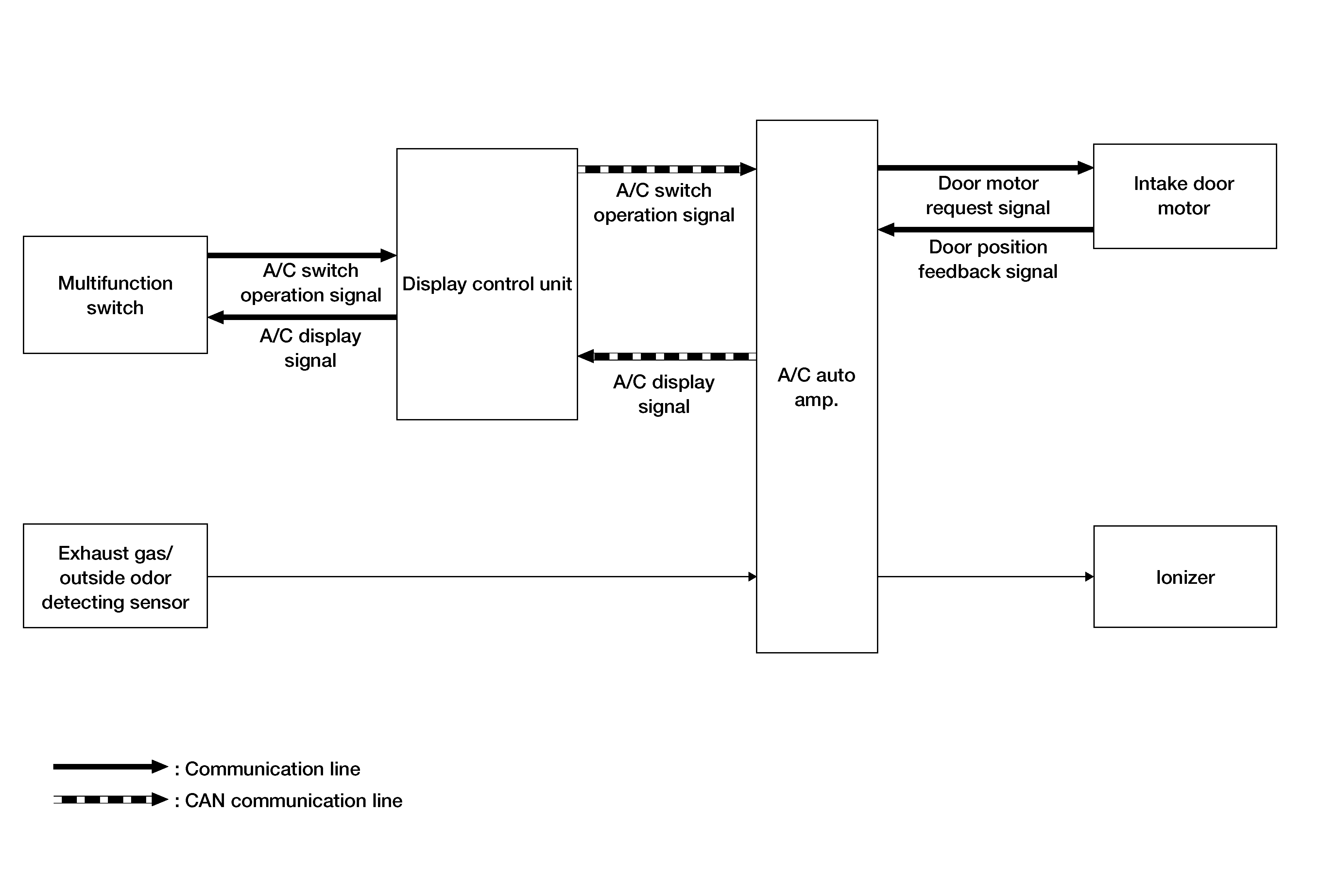

System Diagram
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- ACCS (advanced climate control system) controls passenger room air. It maintains the cleanliness of the passenger room air using an in-cabin microfilter and a combination of each of the following functions.
- Automatic Intake Control (Exhaust Gas / Outside Odor Detecting Mechanism)
- Plasmacluster Control NOTE:
- Plasmacluster? ion technology developed by Sharp Corporation is installed in this item.
- Plasmacluster? is a trademark of Sharp Corporation.
- Various operations of ACCS (advanced climate control system) are transmitted from multifunction switch to display control unit via communication line and from display control unit to A/C auto amp. via CAN communication. A/C auto amp. sends each indication information to display control unit via CAN communication. Display control unit displays each indication information that is received.
