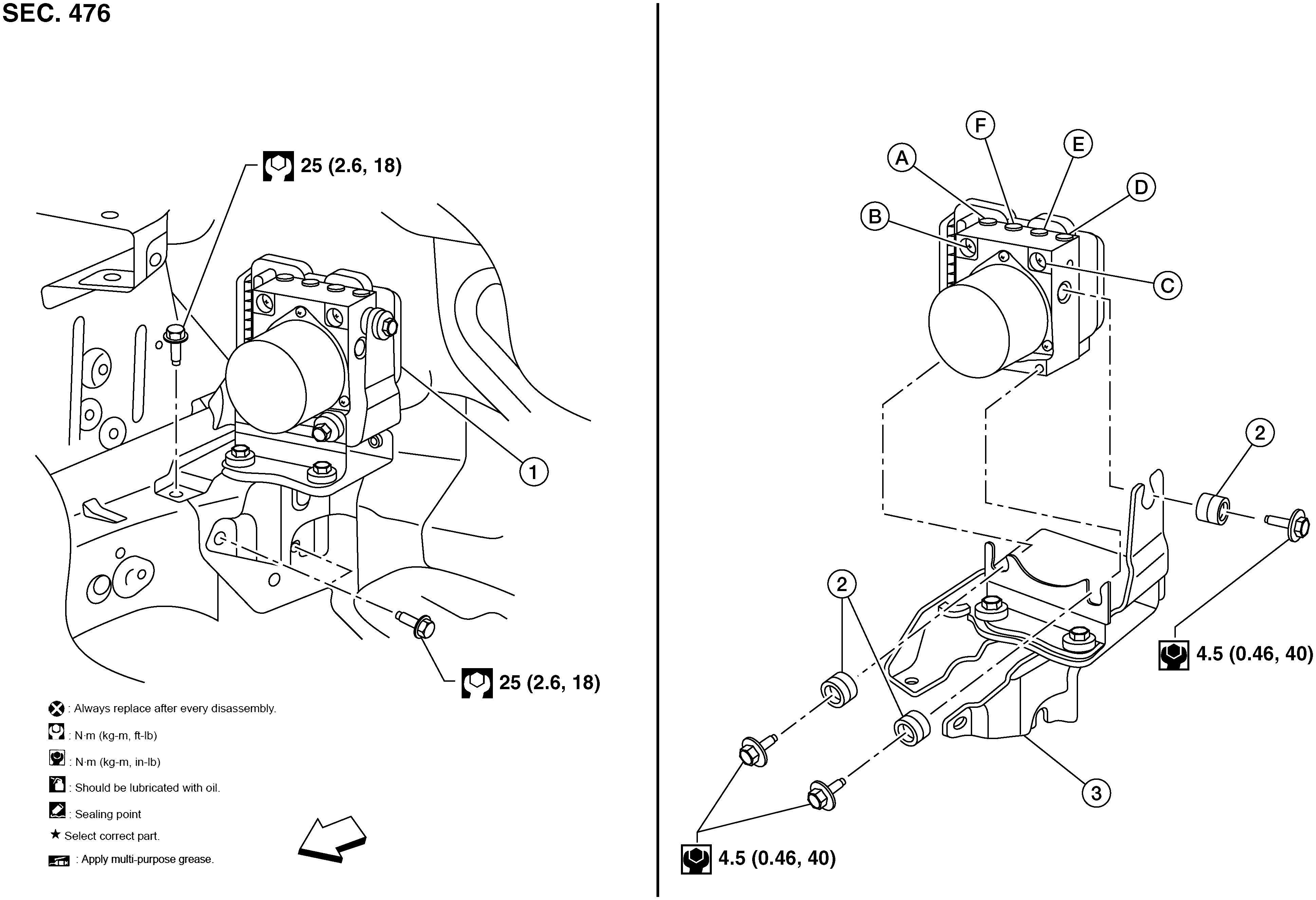

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
ABS actuator and electric unit (control unit) |
2. |
Bushings |
3. |
Bracket |
|
A. |
To front RH brake caliper |
B. |
From master cylinder secondary side |
C. |
From master cylinder primary side |
|
D. |
To front LH brake caliper |
E. |
To rear RH brake caliper |
F. |
To rear LH brake caliper |
|
|
Front |
