Display And Warning
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Warning Display
|
System status |
Condition |
Display on combination meter |
AEB warning lamp |
Buzzer |
|
AEB/I-FCW OFF |
- |
- |
OFF |
- |
|
AEB/I-FCW ON |
System ON |
ON |
- |
|
|
AEB/I-FCW system malfunction |
The AEB/I-FCW system is automatically canceled.
NOTE:
The system operates if the ignition switch is turned OFF→ON after the condition improves
|
Malfunction See Owner's Manual |
ON |
Beep |
Warning Operation
|
Condition |
Action |
Display on combination meter |
AEB warning lamp |
Chime |
|
There is a possibility of a collision with the vehicle ahead. |
|
FLASHING |
Beep |
|
|
An obstacle ahead is avoided due to the system applying braking. |
Operates brake (Emergency) |
ON |
Continuous beeps |
|
|

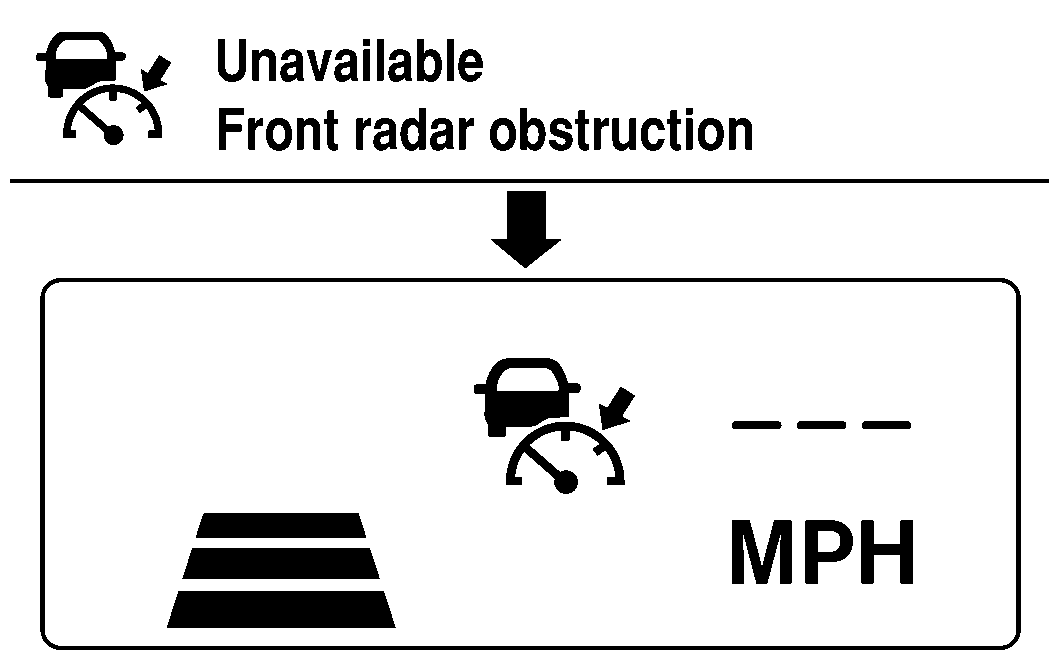

Dirt around the distance sensor (ICC sensor) |
The AEB system is automatically canceled.
NOTE:
The system operates if the ignition switch is turned OFF→ON after the condition improves.
|
ON |
- |
