Component Parts Location

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

Courtesy of NISSAN NORTH AMERICA, INC.

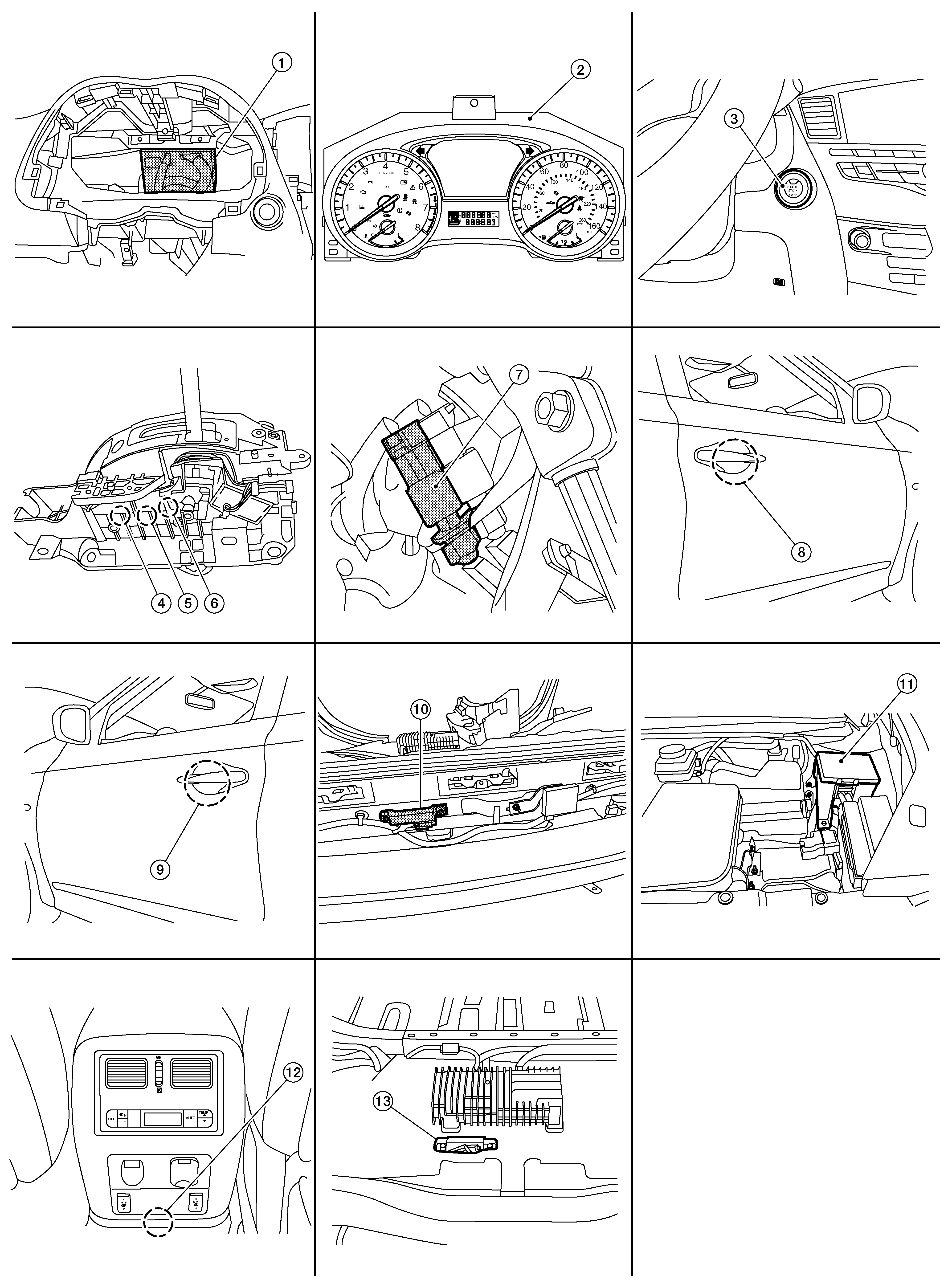

1.	BCM (view with combination meter removed)	2.	Combination meter	3.	Push-button ignition switch
4.	CVT shift selector [park position switch (shift selector)]	5.	CVT shift selector (shift lock solenoid)	6.	CVT shift selector (park position switch)
7.	Stop lamp switch	8.	Front outside handle RH (RH request switch and outside key antenna passenger side)	9.	Front outside handle LH (LH request switch and outside key antenna driver side)
10.	Outside key antenna (rear bumper) (view with rear bumper cover removed)	11.	IPDM E/R	12.	Inside key antenna (console)

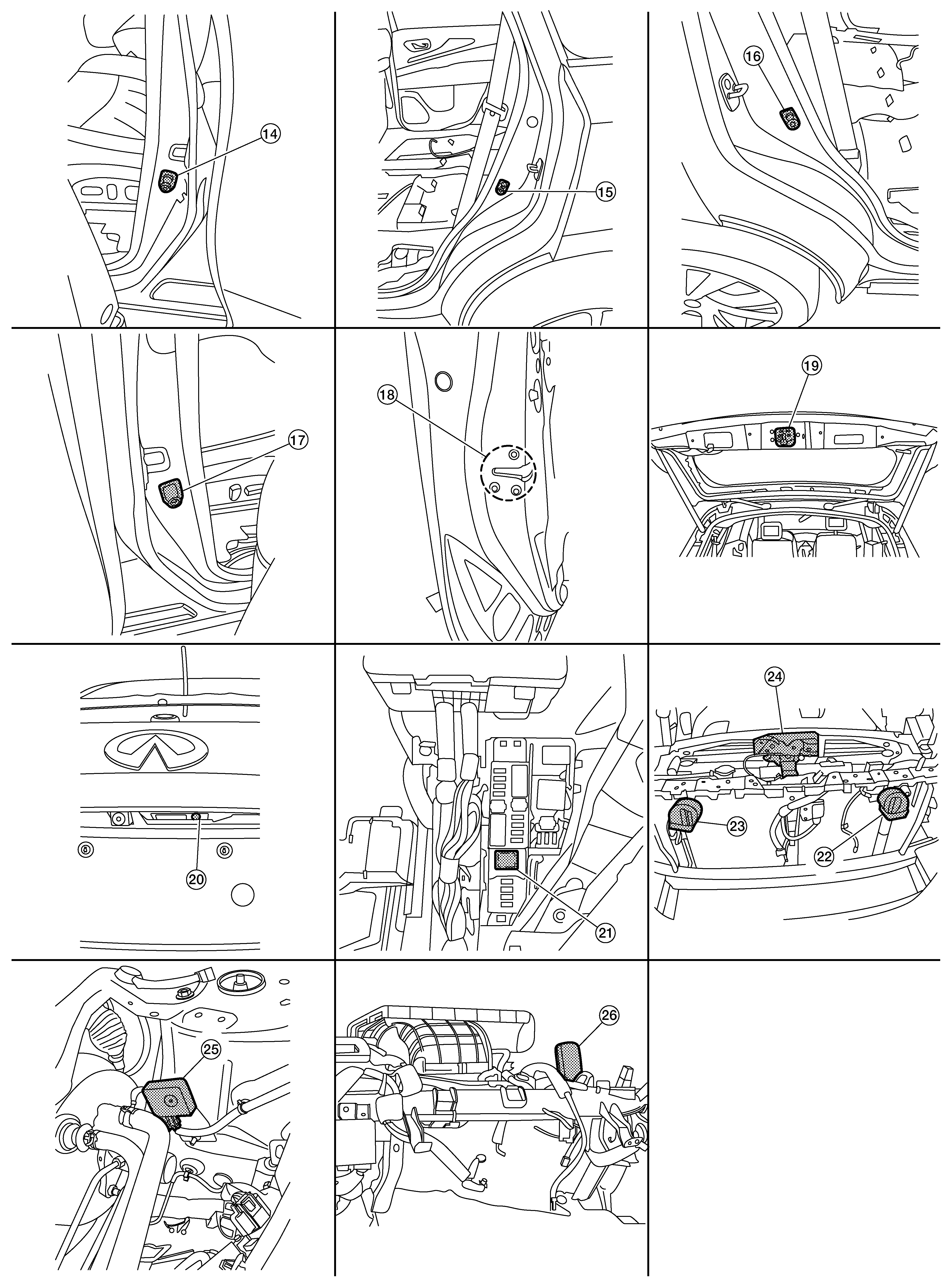

13.	Inside key antenna (luggage room) (view with rear carpet removed)	14.	Front door switch LH	15.	Rear door switch LH
16.	Rear door switch RH	17.	Front door switch RH	18.	Front door lock assembly LH
19.	Back door lock assembly	20.	Back door opener switch	21.	Horn relay
22.	Horn (low)	23.	Horn (high)	24.	Hood switch
25.	Intelligent Key warning buzzer	26.	Remote keyless entry receiver (view with instrument panel removed)
