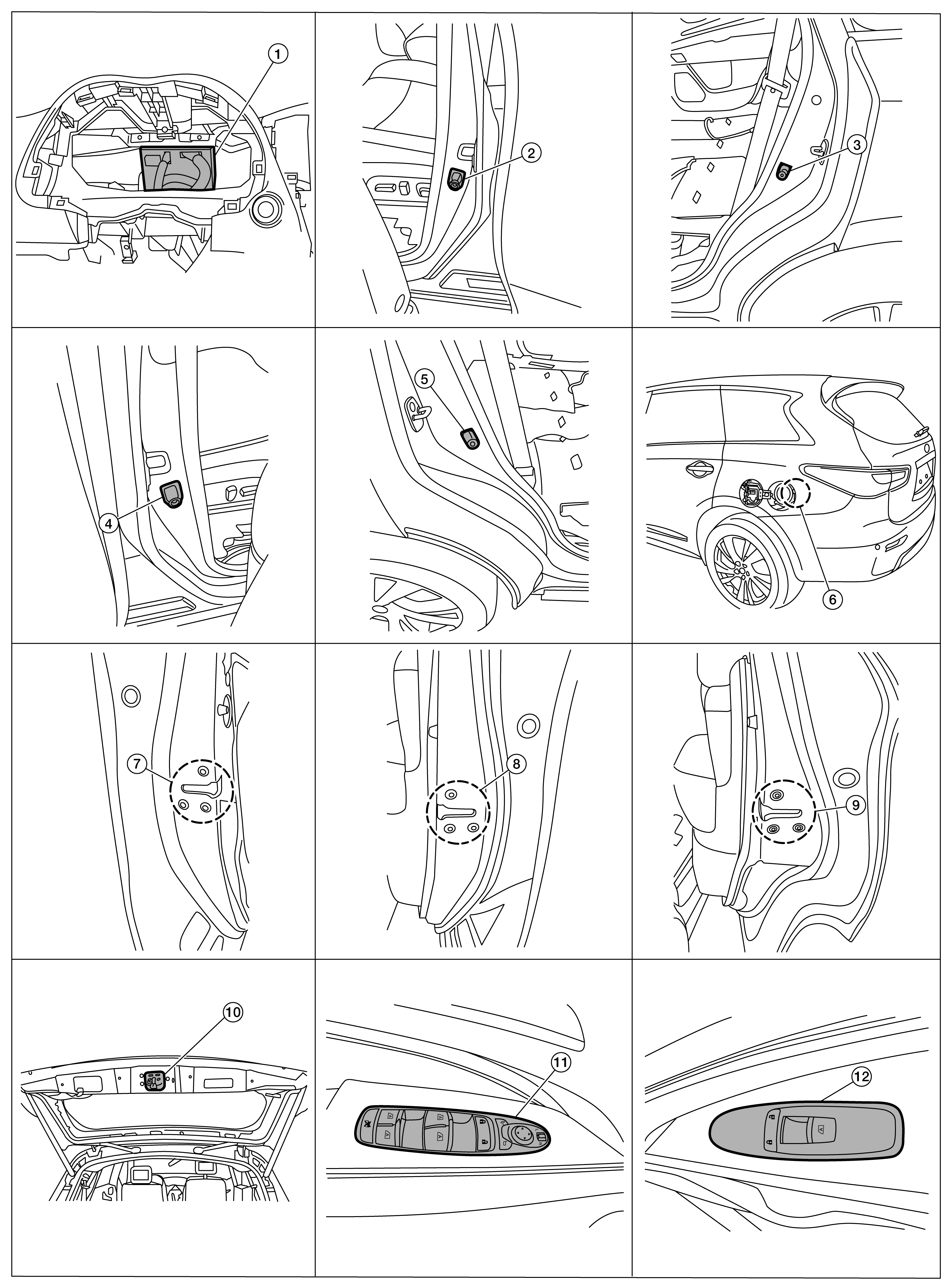

Component Parts Location
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
BCM (view with combination meter removed) |
2. |
Front door switch LH |
3. |
Rear door switch LH |
|
4. |
Front door switch RH |
5. |
Rear door switch RH |
6. |
Fuel lid door lock actuator (view with luggage side lower finisher LH removed) (if equipped) |
|
7. |
Front door lock assembly LH |
8. |
Front door lock actuator RH |
9. |
Rear door lock actuator RH (LH similar) |
|
10. |
Back door lock assembly |
11. |
Main power window and door lock/unlock switch |
12. |
Power window and door lock/unlock switch RH |
