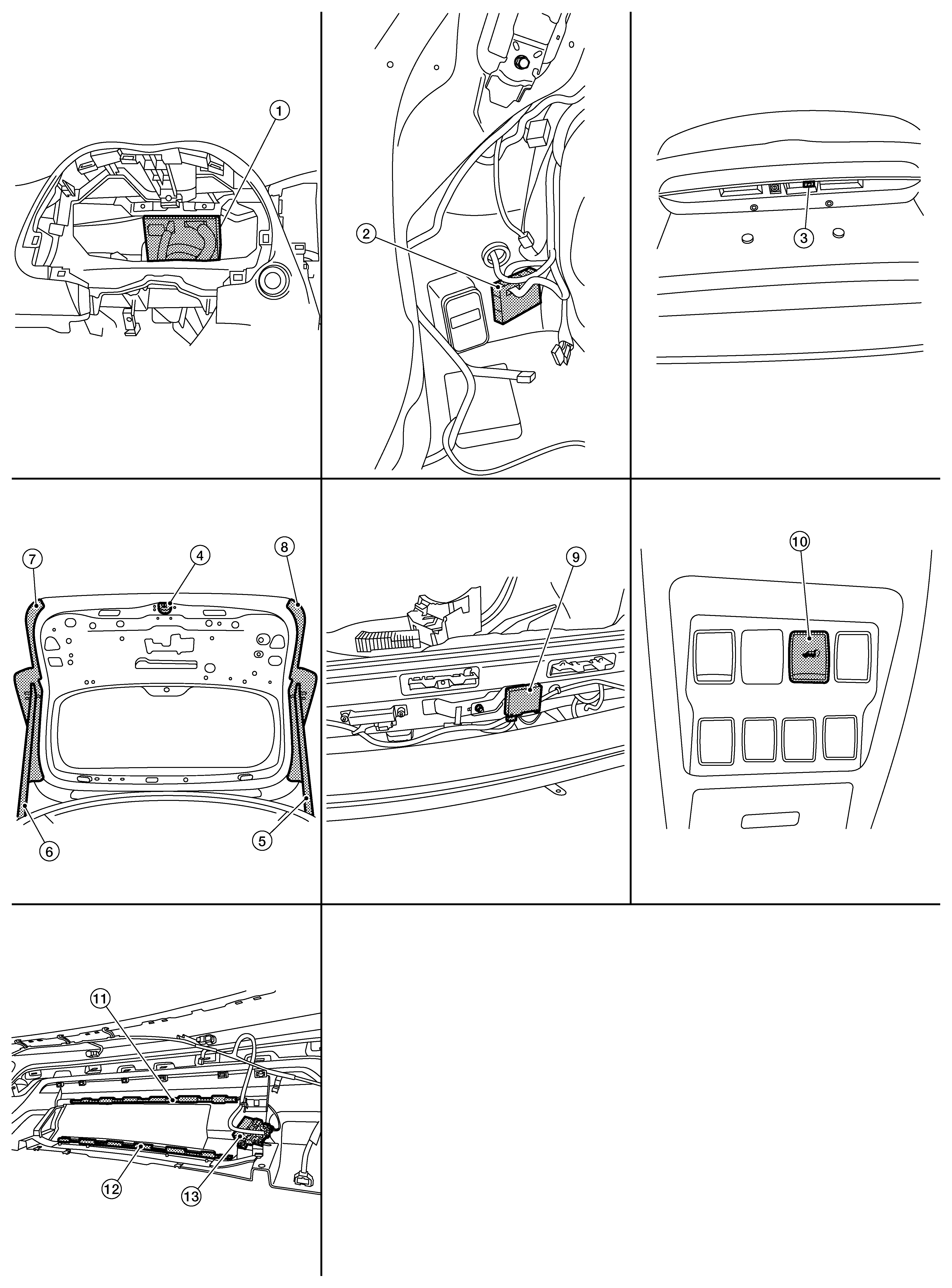

Component Parts Location
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
BCM (view with combination meter removed) |
2. |
Automatic back door control module (view with LH luggage side lower finisher removed) |
3. |
Back door opener switch |
|
4. |
Back door lock assembly |
5. |
Spindle Unit RH |
6. |
Spindle Unit LH |
|
7. |
Touch sensor LH |
8. |
Touch sensor RH |
9. |
Back door warning chime (view with rear bumper cover removed) |
|
10. |
Automatic back door switch |
11. |
Motion activated back door sensor (UPPER) (view with rear bumper cover removed) (if equipped) |
12. |
Motion activated back door sensor (LOWER) (view with rear bumper cover removed) (if equipped) |
|
13. |
Motion activated back door control unit (view with rear bumper cover removed) (if equipped) |
