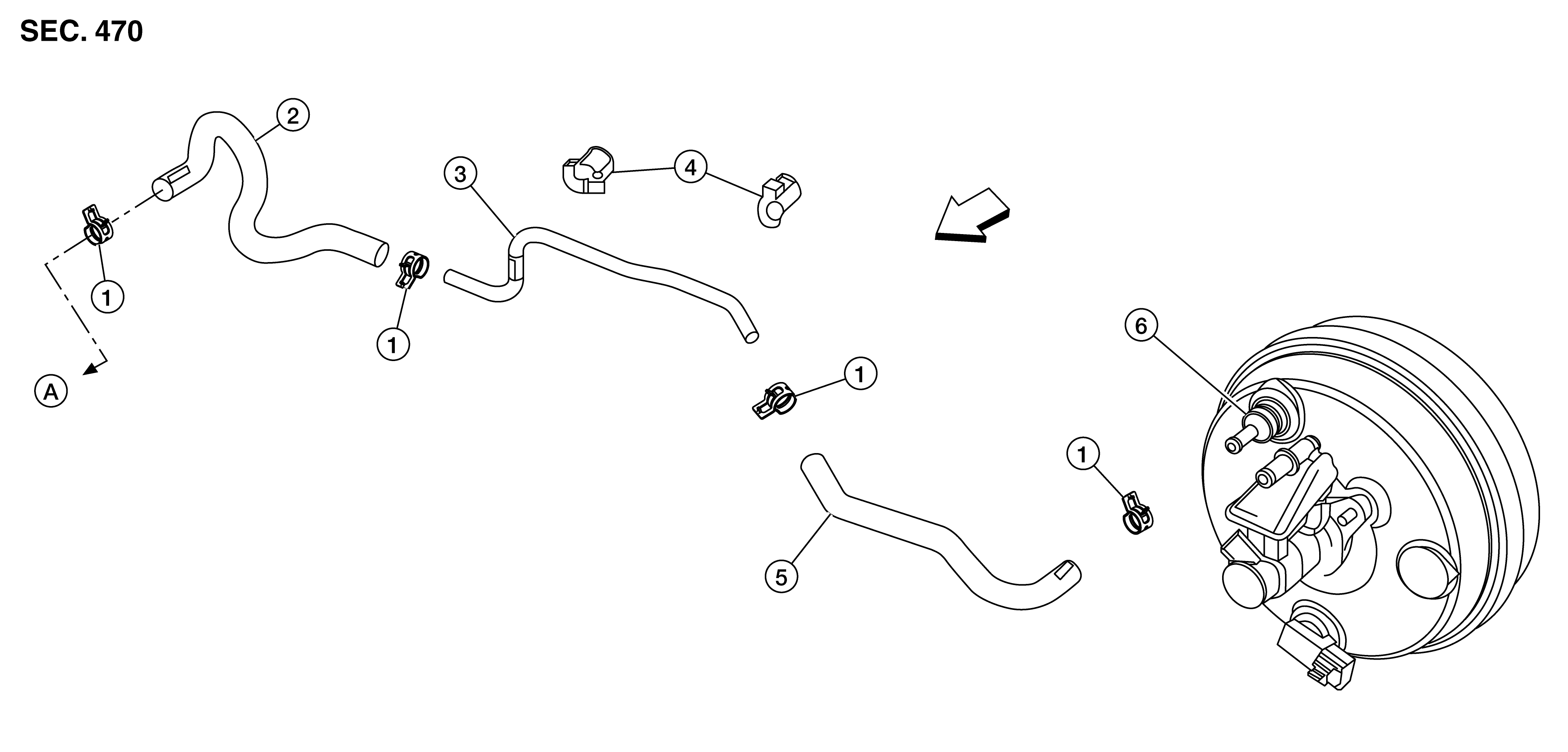

Exploded View
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Clamp |
2. |
Vacuum hose |
3. |
Vacuum pipe |
|
4. |
Clip |
5. |
Vacuum hose |
6. |
Check valve |
|
A. |
To intake manifold. Refer to INTAKE MANIFOLD . |
|
Front |
