Removal and Installation: Removal
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- Remove reservoir cap from the reservoir tank.
- Remove front wheels and tires using power tool.
- Secure the disc brake rotor using wheel nuts.
- Remove union bolt, copper sealing washers, and disconnect brake hose from brake caliper. Discard the copper sealing washers.CAUTION: Do not reuse copper sealing washers.

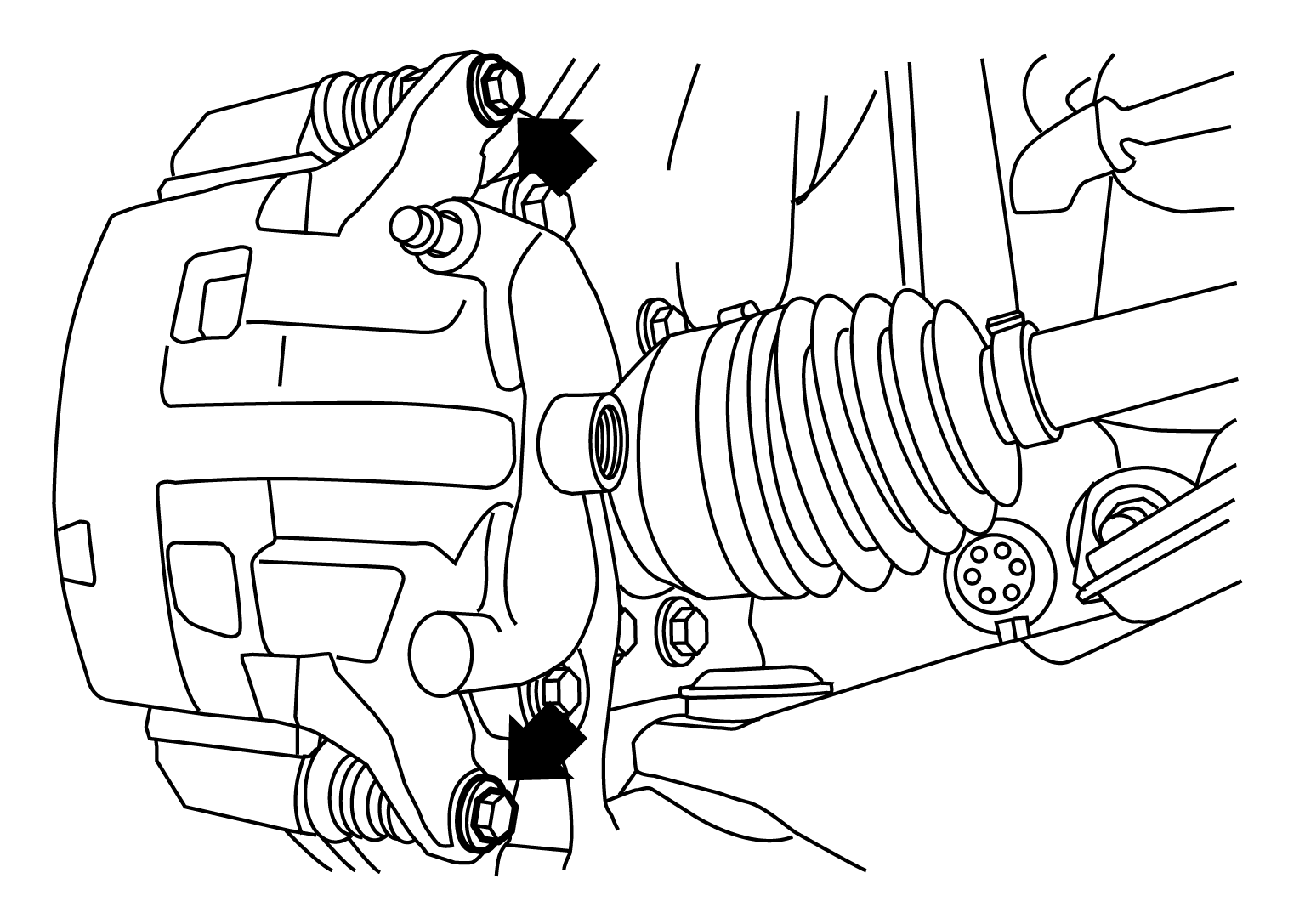

- Remove slide pin bolts (?) and the brake caliper.CAUTION: Do not drop brake pads or caliper.
- Remove the brake pads from the torque member.CAUTION:
- Do not damage the piston boot.
- Do not drop the brake pads, shims, or the shim covers.
- Note the position of components during removal to aid with installation.
- If necessary, remove torque member bolts and the torque member.
