Stop Lamp Switch And Brake Pedal Position Switch
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- Remove instrument lower panel LH. Refer to Removal and Installation .
- Disconnect the harness connectors from the stop lamp switch and brake pedal position switch.
- Turn the stop lamp switch and brake pedal position switch 45 deg. counterclockwise.

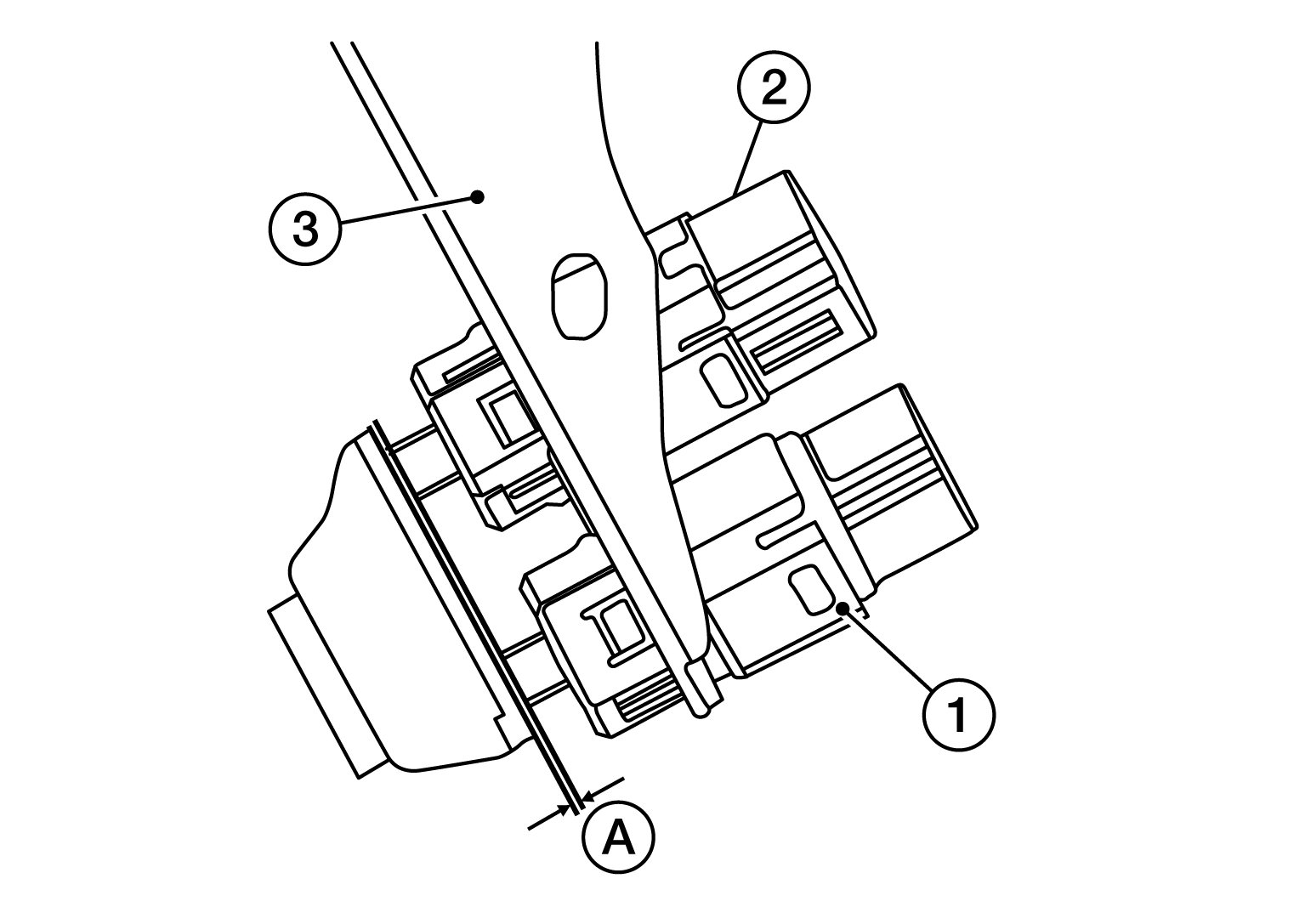

- With the threaded ends of the stop lamp switch (1) and brake pedal position switch (2) contacting the pedal bracket (3), turn the switches 45 deg. clockwise to lock in place. Check that both the stop lamp switch (1) and brake pedal position switch (2) contact ends to brake pedal bracket (3) clearance (A) are within specification.CAUTION:
- Make sure that the clearance (A) between the brake pedal bracket (3), stop lamp switch (1) and the brake pedal position switch (2) contact ends are within specification.
- The stop lamp must turn off when the brake pedal is released.
Clearance (A)
: Refer to Brake Pedal .
