Brake Pedal Height

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument lower panel LH. Refer to Removal and Installation .
  2. Disconnect the harness connectors from the stop lamp switch and brake pedal position switch.
  3. Turn the stop lamp switch and brake pedal position switch 45 deg. counterclockwise.

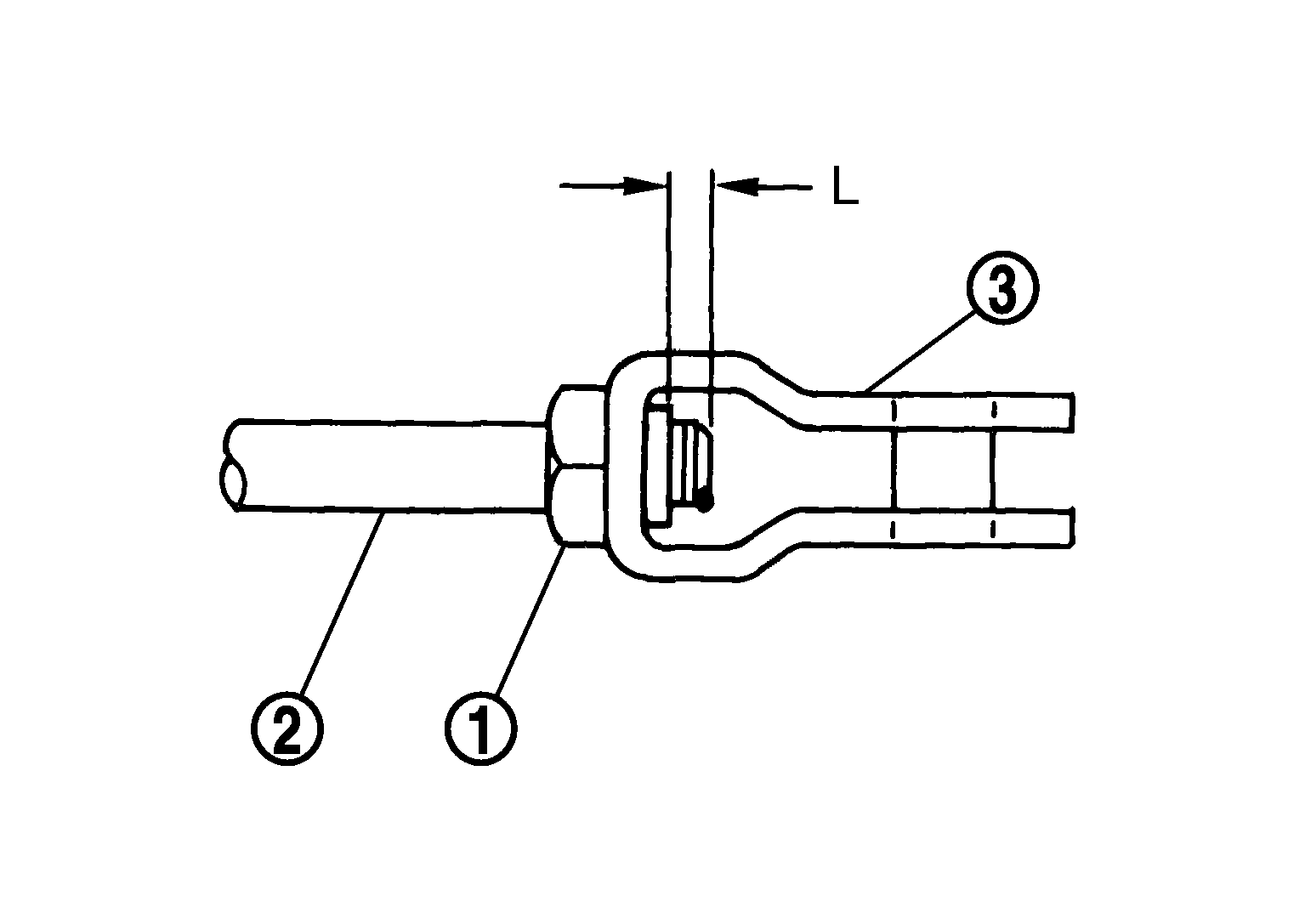

  4. Loosen the input rod lock nut (1). Adjust the brake pedal height to the specification.
    GNSJPFIA03Z-003Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Check the height with the floor trim removed.
    • The threaded end of the input rod (2) must project to the inner side (L) of the clevis (3).

    Brake pedal height (H1)

    : Refer to Brake Pedal .
    GNSJPFIA0279Z-279Courtesy of NISSAN NORTH AMERICA, INC.
  5. Tighten the input rod lock nut to specification. Refer to Exploded View .
  6. Check the brake pedal for smooth operation.
    CAUTION: The stop lamp must turn off when the brake pedal is released.
