Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

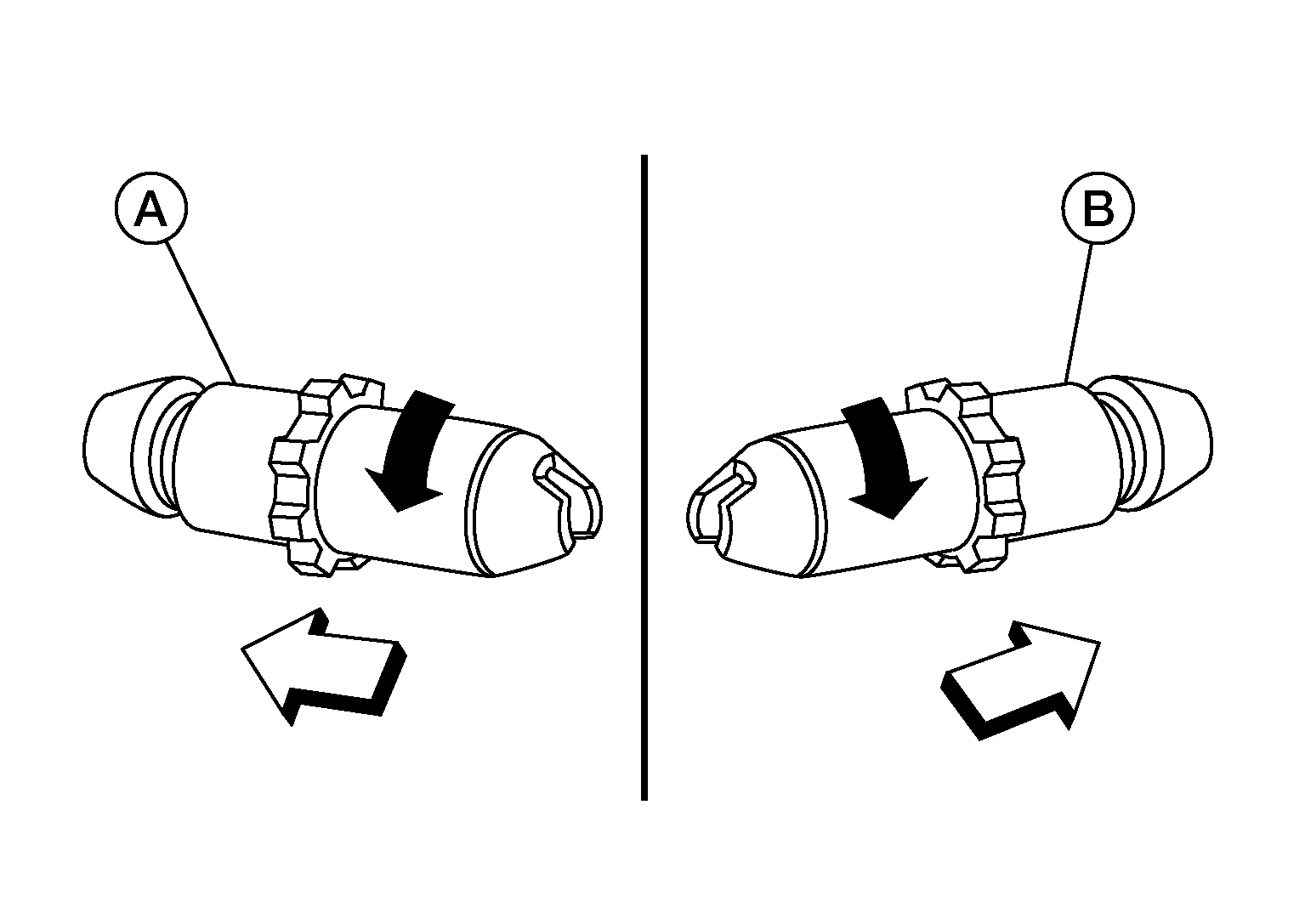

Assemble adjusters so that threaded part is expanded when rotating it in direction shown by arrow.

Courtesy of NISSAN NORTH AMERICA, INC.

(A)	: For LH brake
(B)	: For RH brake
	: Front
	: Adjuster expanded

Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease to back plate and brake shoe.
CAUTION: The parking brake shoes for the front side are made of different materials from those for the rear side. Do not misidentify them when removing and replacing.
Shorten adjuster by rotating it.
When assembling the adjuster, apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease to threads and pivot.
Check parking brake shoe lining and drum inner surface for grease. Wipe off any grease on the surfaces.
Inspect the parking brake shoes. Refer to Inspection .
