Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Remove center console assembly. Refer to Removal and Installation .
- Loosen adjusting nut.NOTE: It is not necessary to remove parking brake front cable.

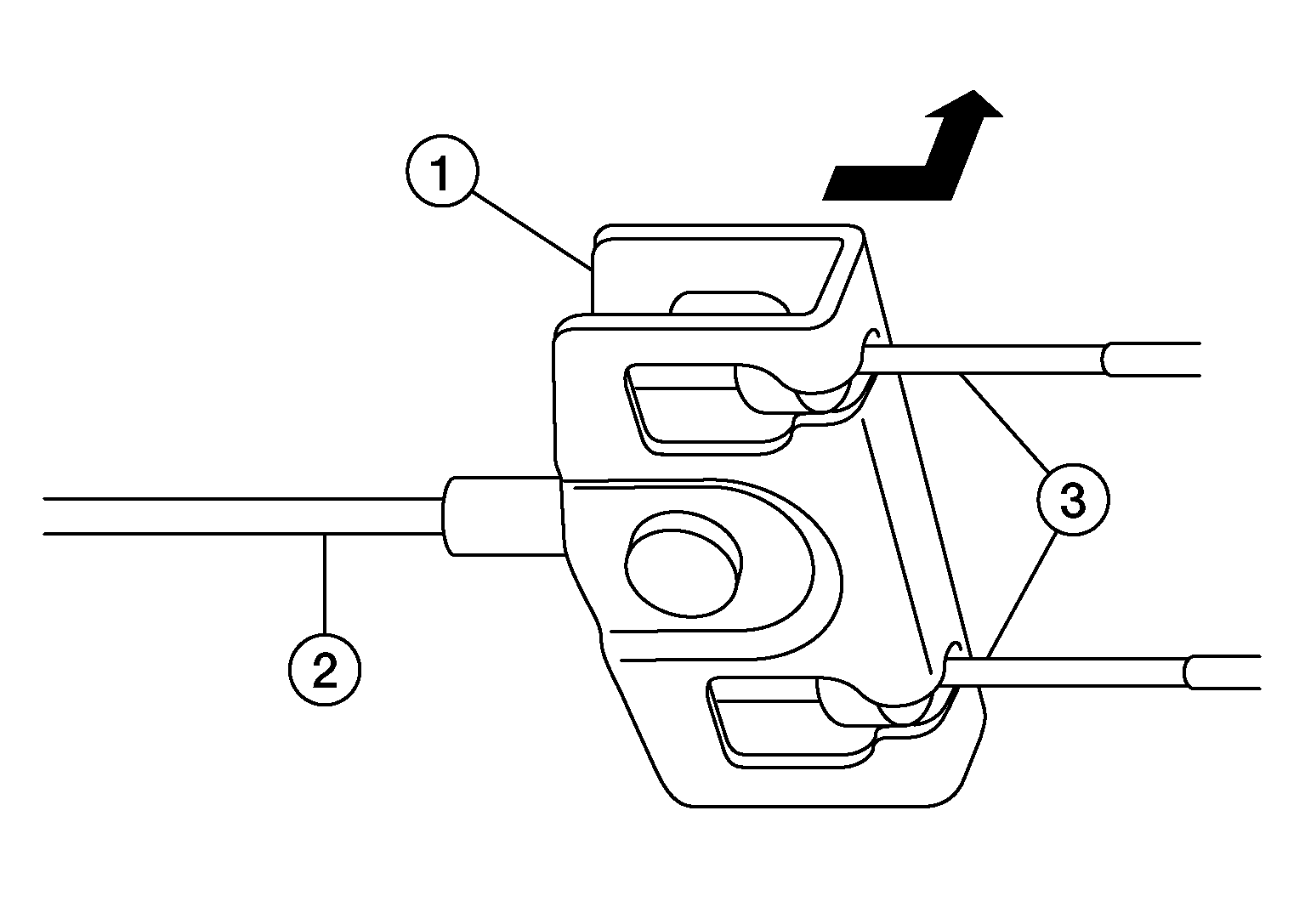

- Pull equalizer (1) on parking brake front cable (2) in direction shown and separate parking brake rear cable (LH/RH) (3) from parking brake front cable.CAUTION: To prevent damage to parts, do not bend parking brake cables.
- Remove center exhaust tube heat insulator.
- Remove rear disc brake rotor. Refer to Removal and Installation .
- Separate parking brake rear cable from toggle lever. Refer to Exploded View .
- Remove bolts from rear parking brake cable.
- Remove parking brake rear cable.
