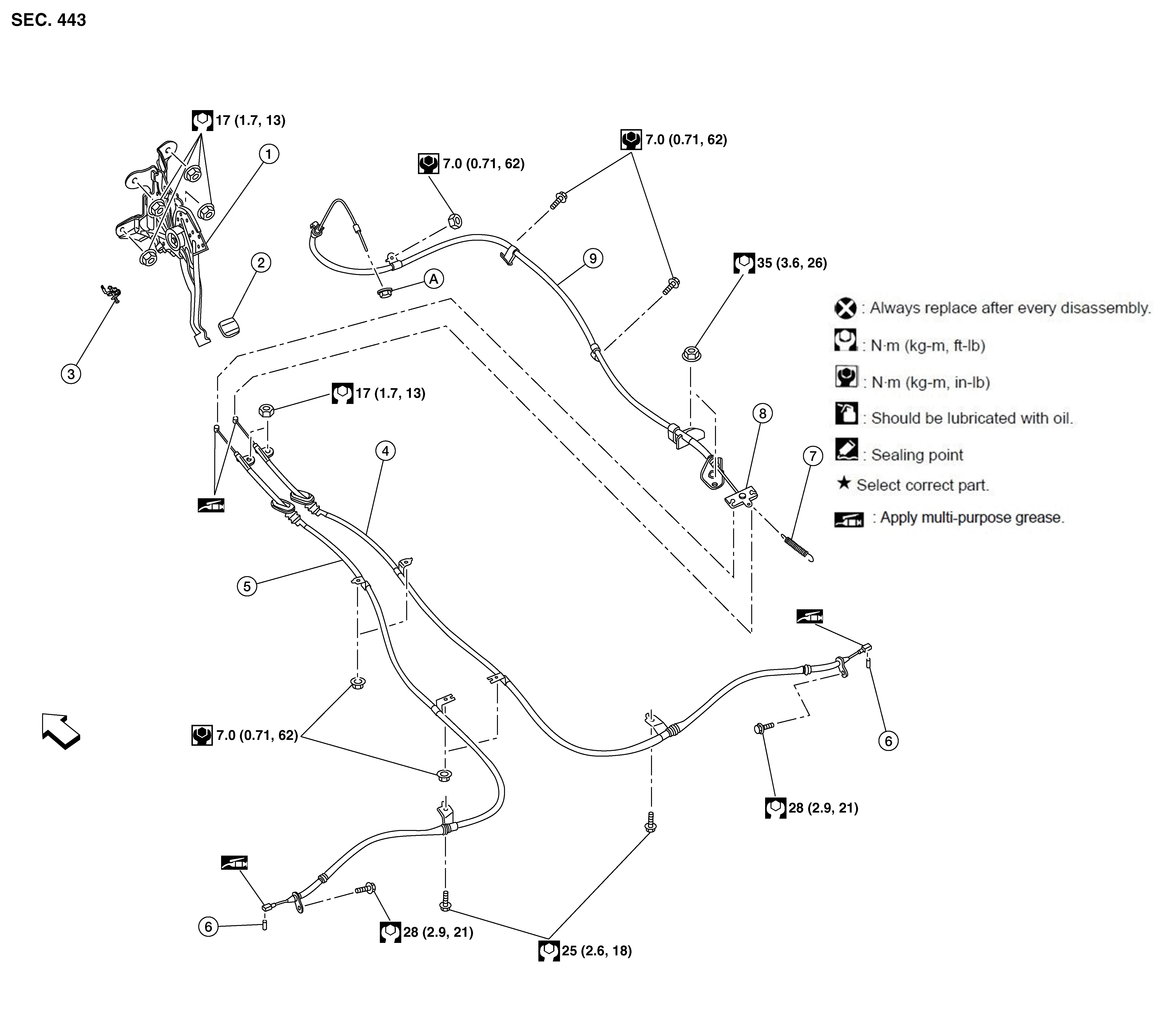

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Parking brake pedal
|
2.
|
Pedal pad
|
3.
|
Parking brake switch
|
|
4.
|
Rear cable (RH)
|
5.
|
Rear cable (LH)
|
6.
|
Pin
|
|
7.
|
Spring
|
8.
|
Equalizer
|
9.
|
Front cable
|
|
A.
|
Adjusting nut
|
|
Front
|
